Wiring Diagrams

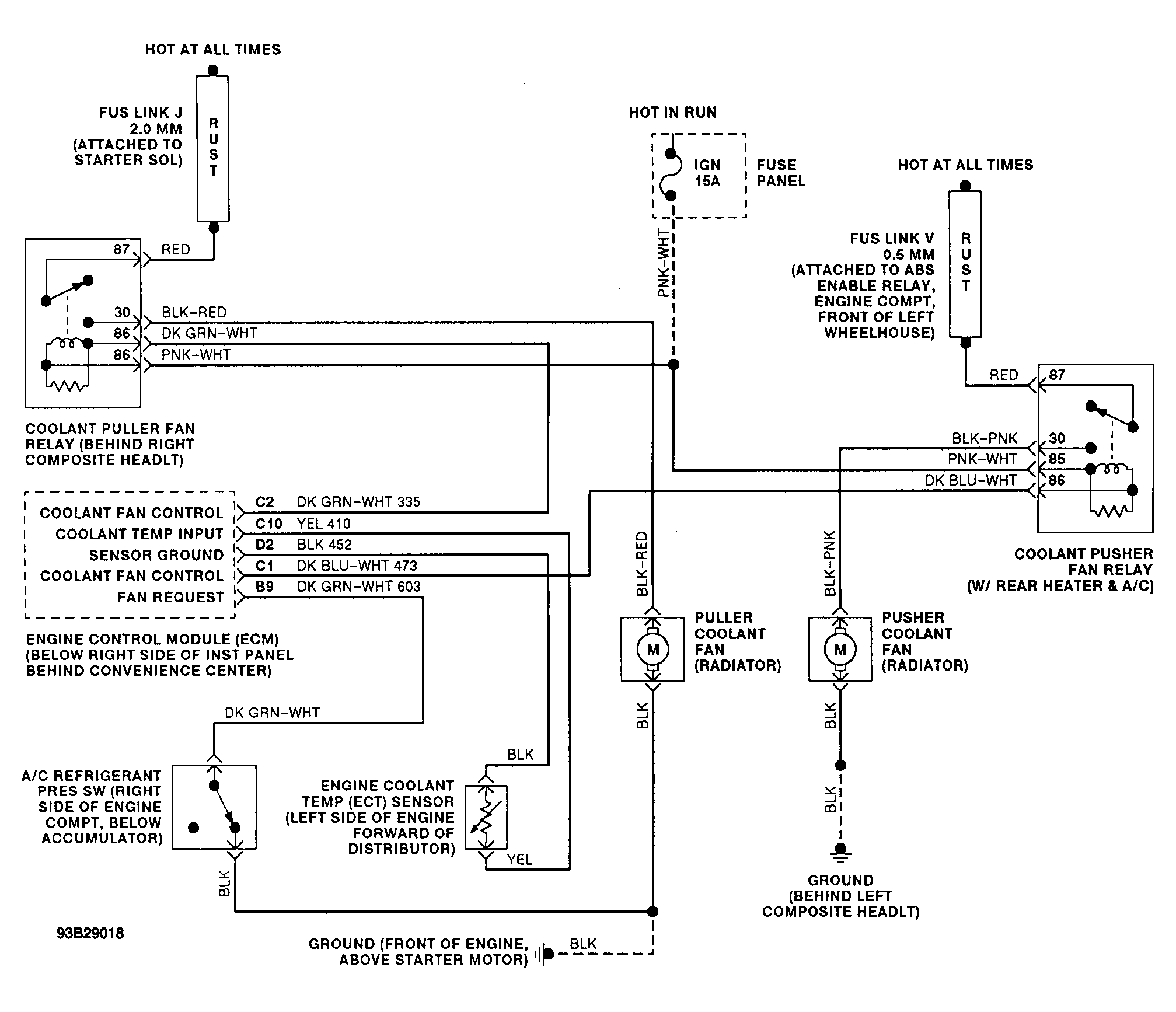

Fig 1: Cooling Fan Circuit Wiring Diagram (3.1L - VIN D)

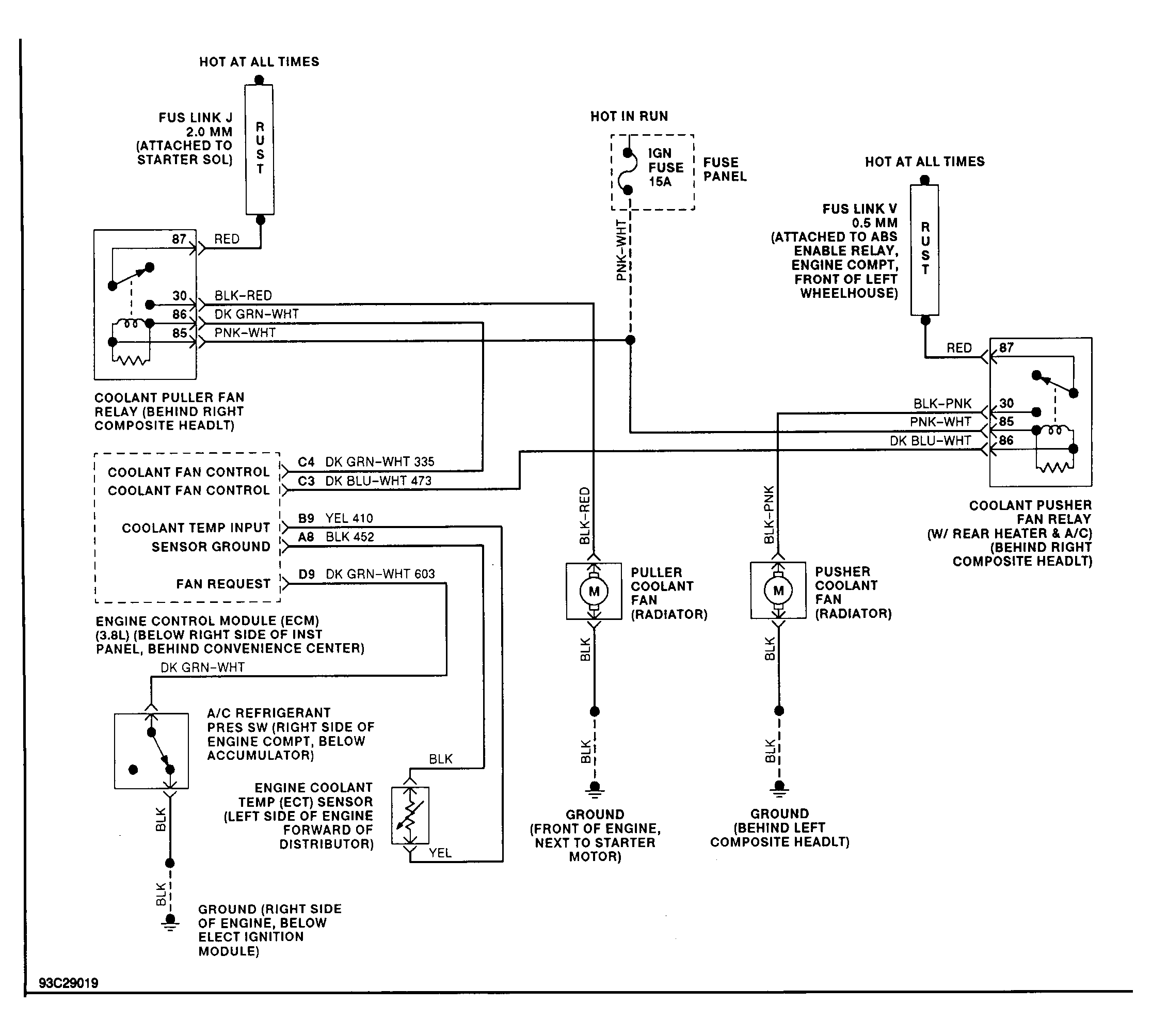

Fig 2: Cooling Fan Circuit Wiring Diagram (3.8L - VIN L)
