Wiring Diagrams
Fig 1: Power Windows Circuit Diagram (1 Of 2)

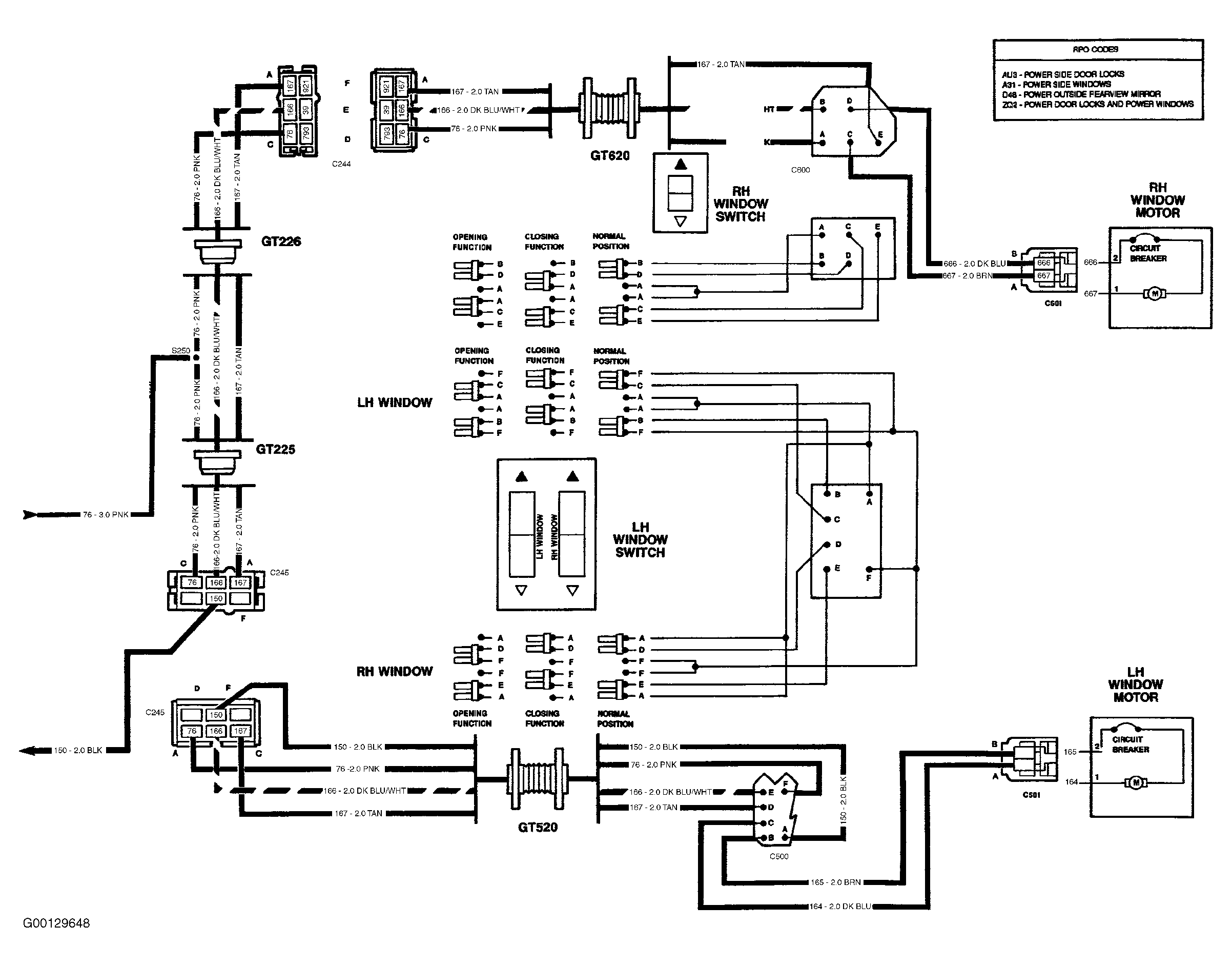

Fig 2: Power Windows Circuit Diagram (2 Of 2)
