Test C: Power Window Right Only Operates From Driver's Side Window Switch - Pickup

Check condition of ACC/IGN circuit breaker. If circuit breaker is in good condition, use the following diagnostic procedures. See Fig 1 or Fig 2 .

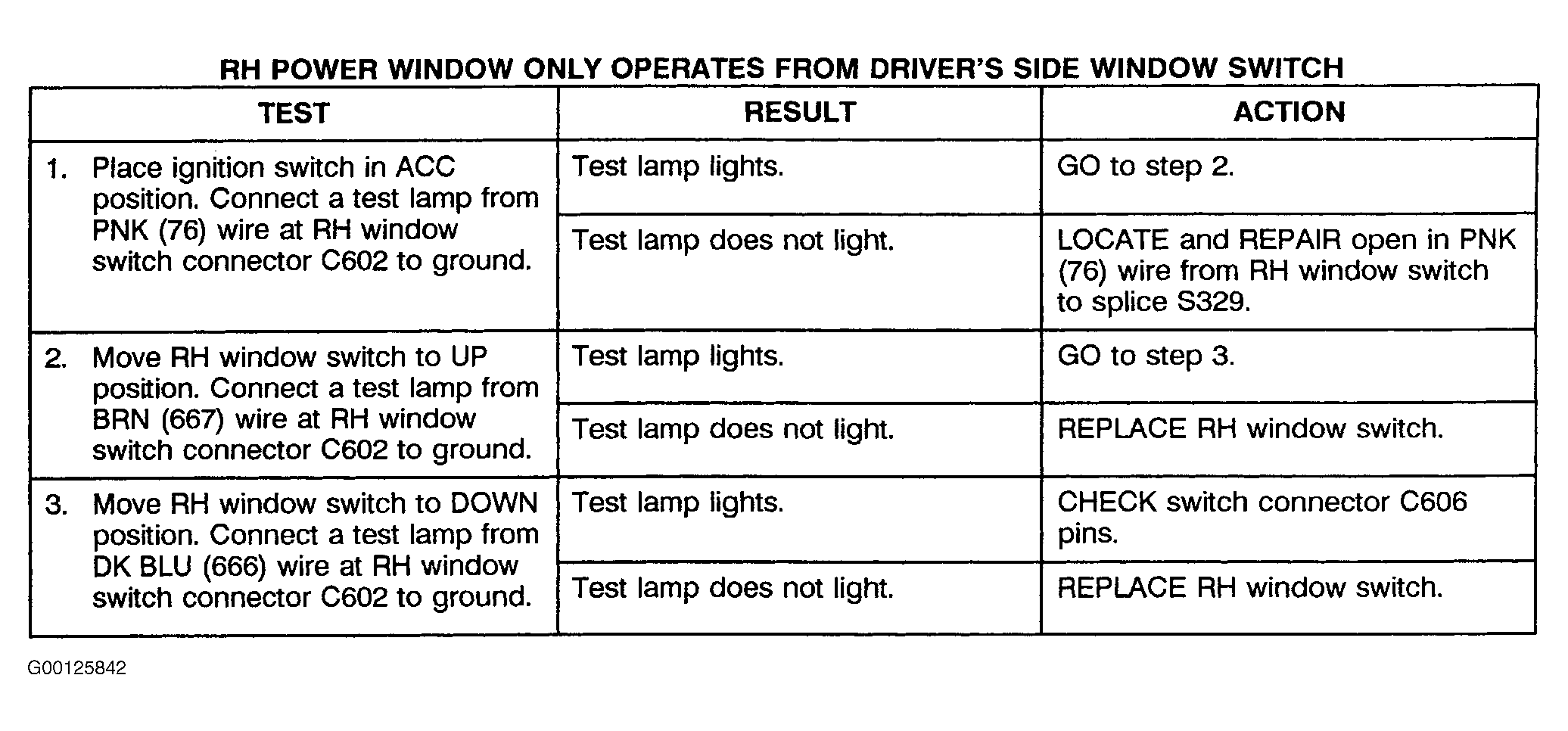

Fig 1: Test C: Power Window Right Only Operates From Driver's Side Window Switch - Pickup (1993)

Courtesy of GENERAL MOTORS CORP.

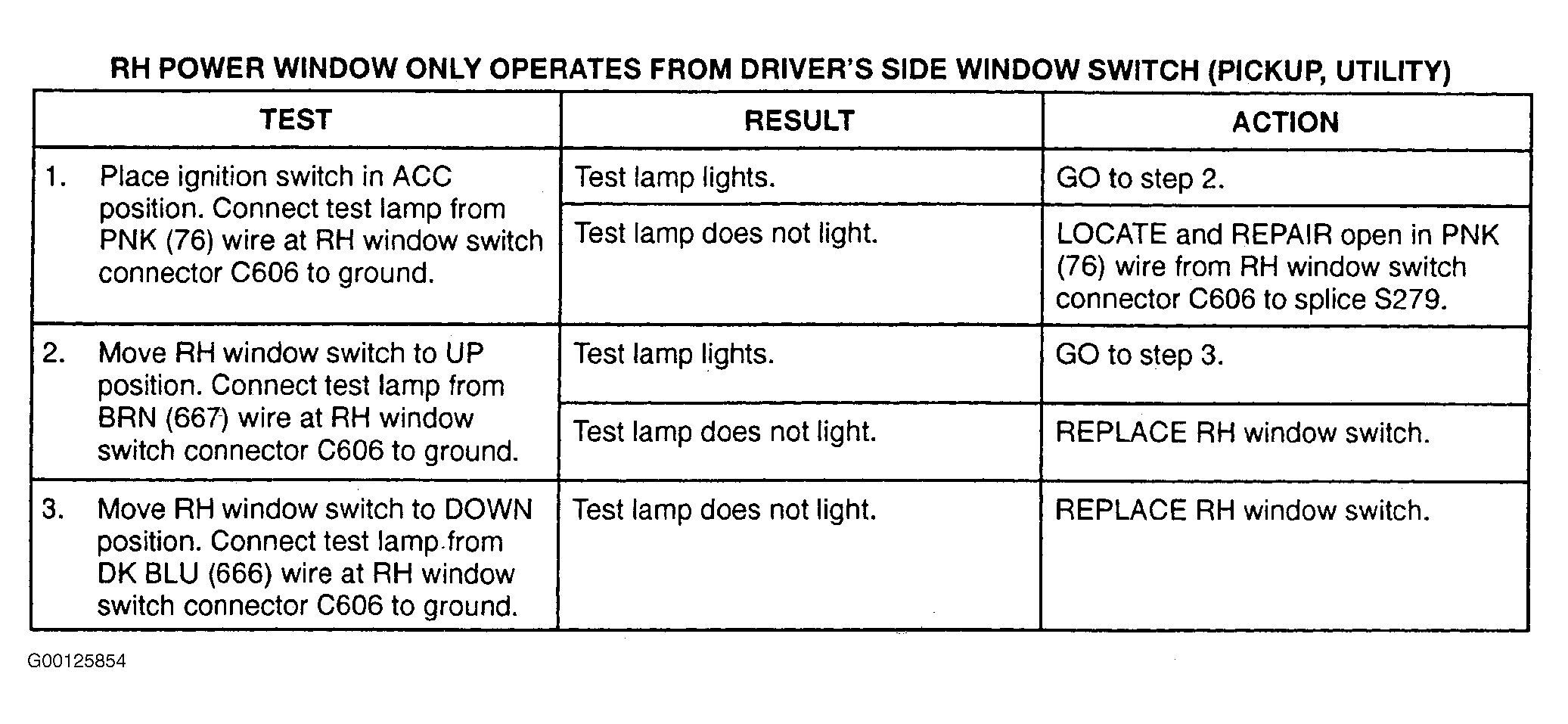

Fig 2: Test C: Power Window Right Only Operates From Driver's Side Window Switch - Pickup (1994)

Courtesy of GENERAL MOTORS CORP.
