Terminal Identification

NOTE: To identify Electronic Brake Control Module (EBCM) connector terminals, see appropriate illustration. See Fig 1 or Fig 2 .

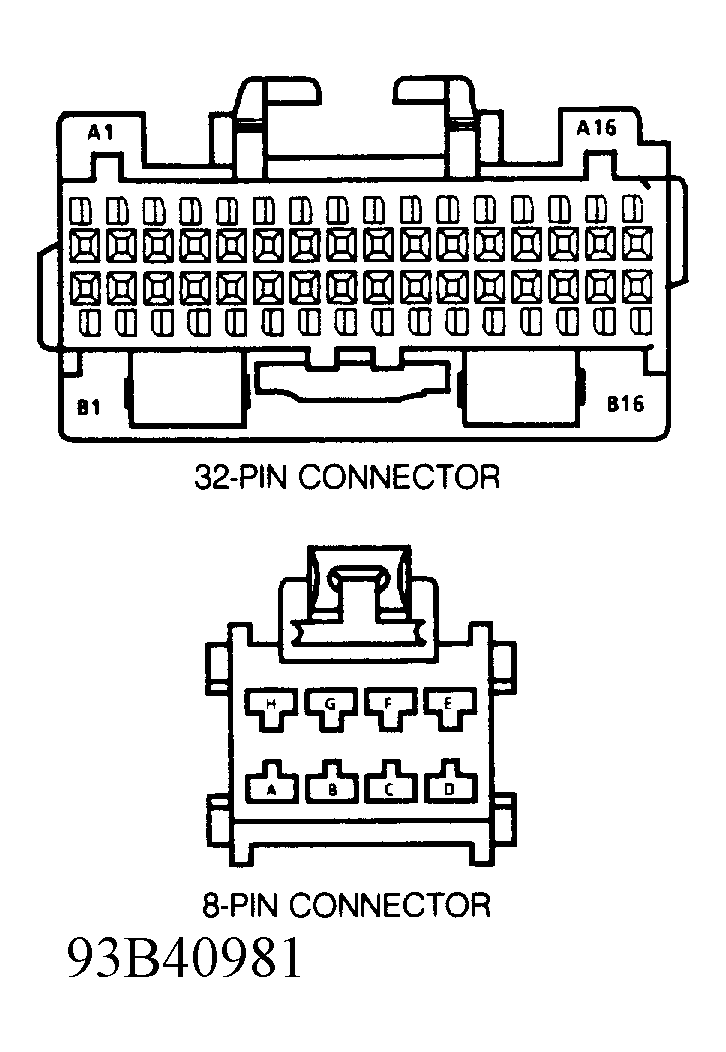

Fig 1: Electronic Brake Control Module (EBCM) Connector Terminal ID (Camaro and Firebird)
G93B40981Courtesy of GENERAL MOTORS CORP.
Fig 2: Electronic Brake Control Module (EBCM) Connector Terminal ID ("W" Bodies)
G92A05371Courtesy of GENERAL MOTORS CORP.
