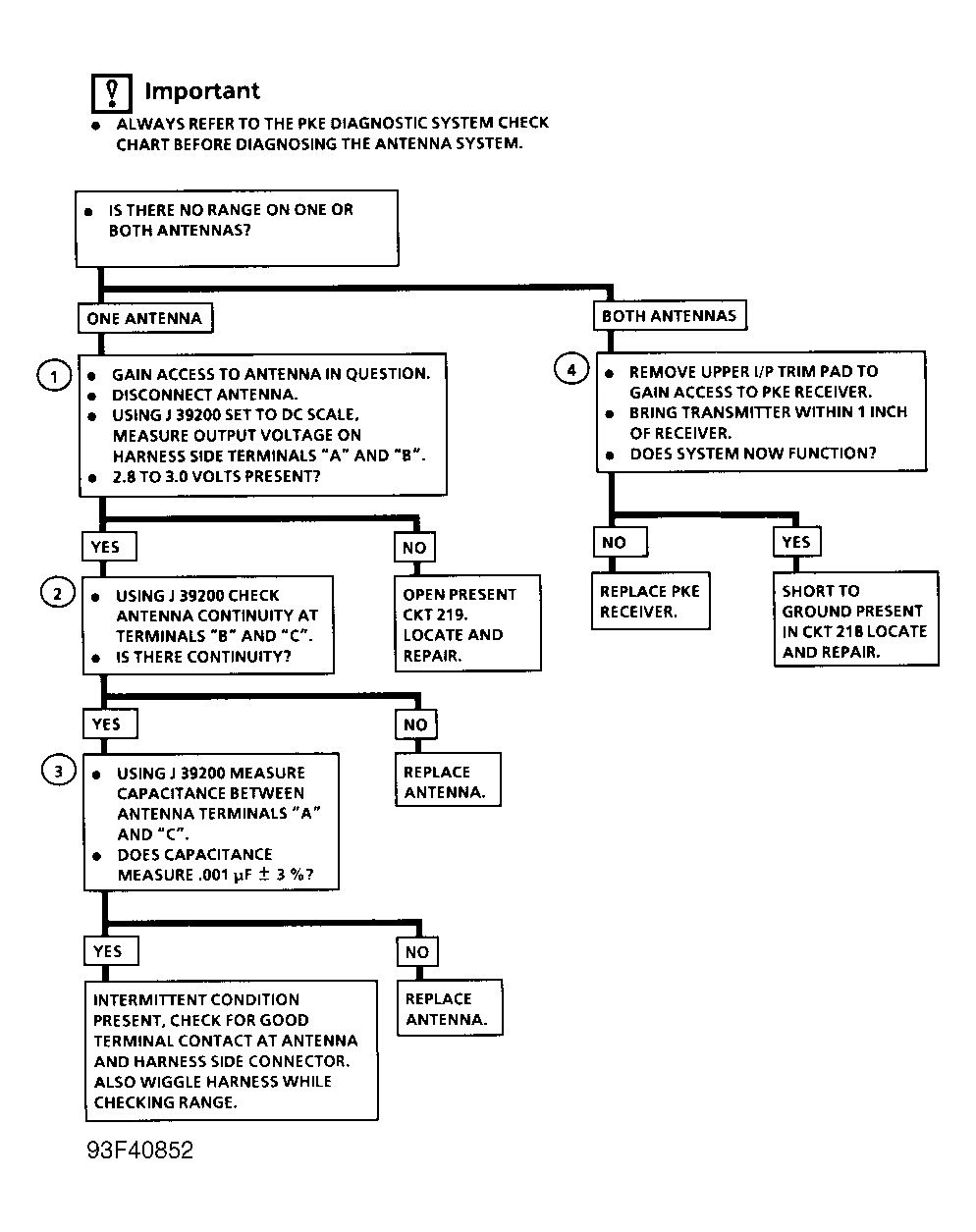

Test Description

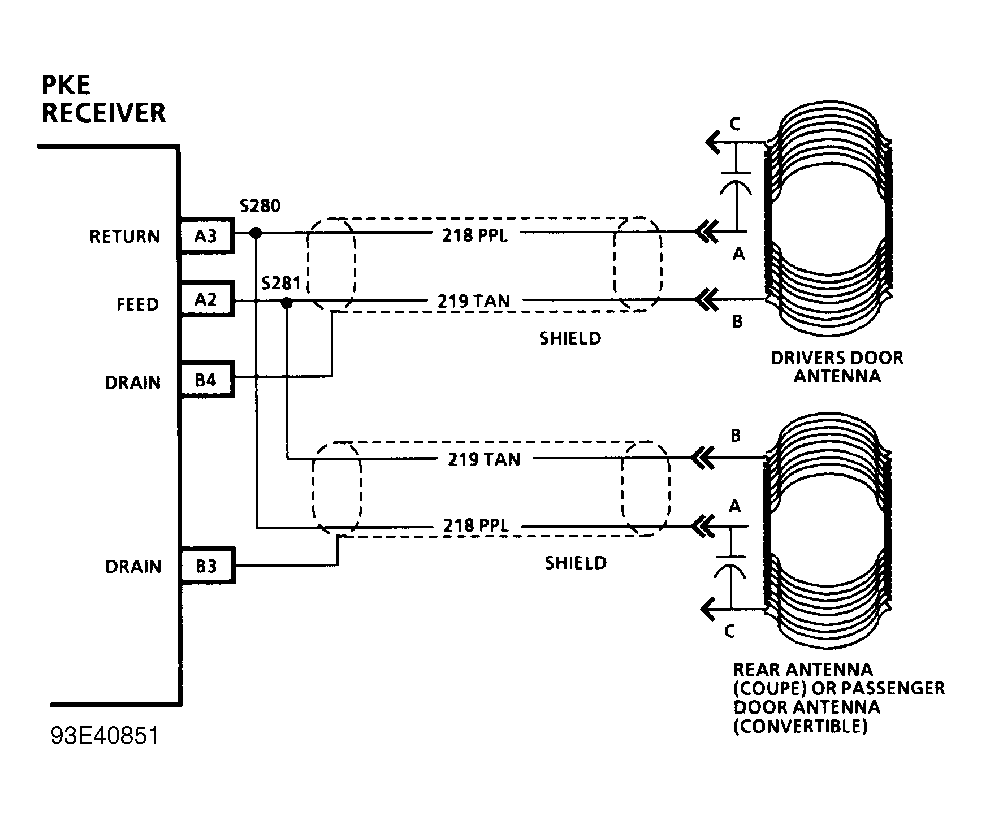

- Check if feed voltage of 2.8-3.0 is present at antenna.
- Checks if there is an open in antenna windings.
- Checks condition of capacitor attached between antenna terminals "A" and "C".
- Checks if there is any system response by by-passing antenna system when bringing transmitter within one inch of receiver.
