Remote Keyless Entry System
›
Wiring Diagrams
Wiring Diagrams

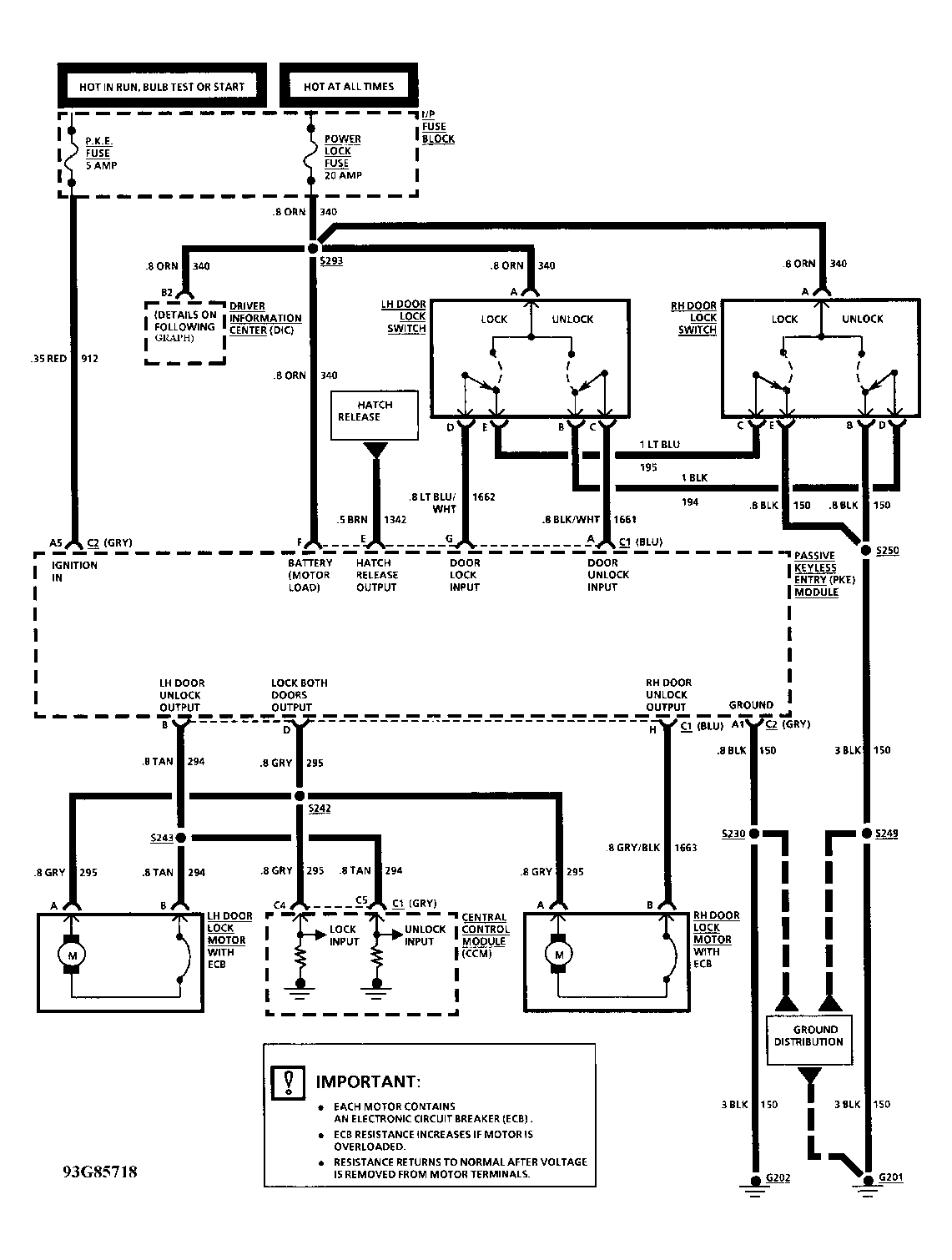

Fig 1: Keyless Entry/Power Door Locks Wiring Diagram (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

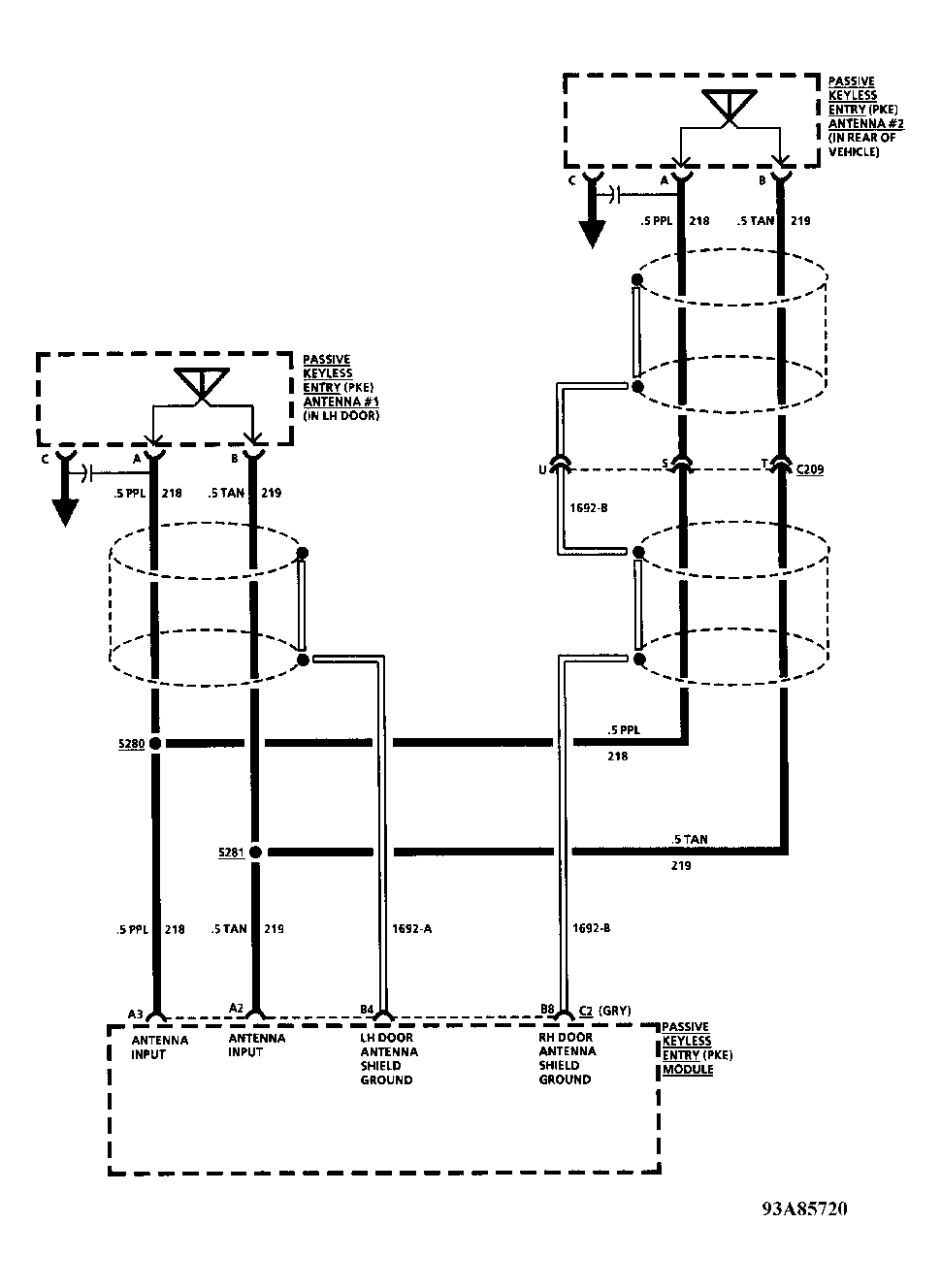

Fig 2: Keyless Entry/Power Door Locks Wiring Diagram (2 Of 4
Courtesy of GENERAL MOTORS CORP.

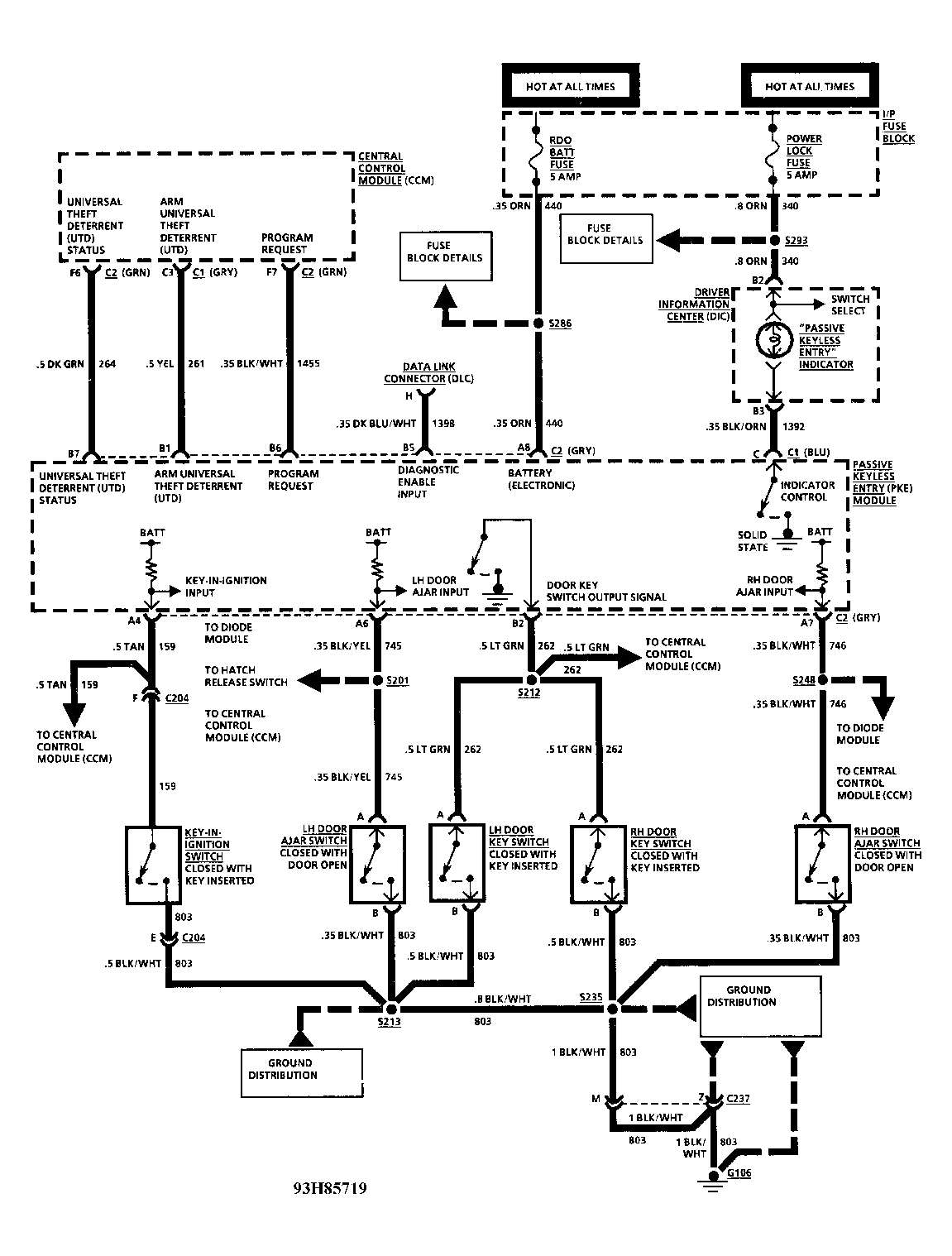

Fig 3: Keyless Entry/Power Door Locks Wiring Diagram (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Keyless Entry/Power Door Locks Wiring Diagram (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
