Home › Chevrolet › 1993 › Corvette Base, 2D Convertible, Standard › Repair and Diagnosis › Body & Frame › Power Windows › Wiring Diagrams

Wiring Diagrams

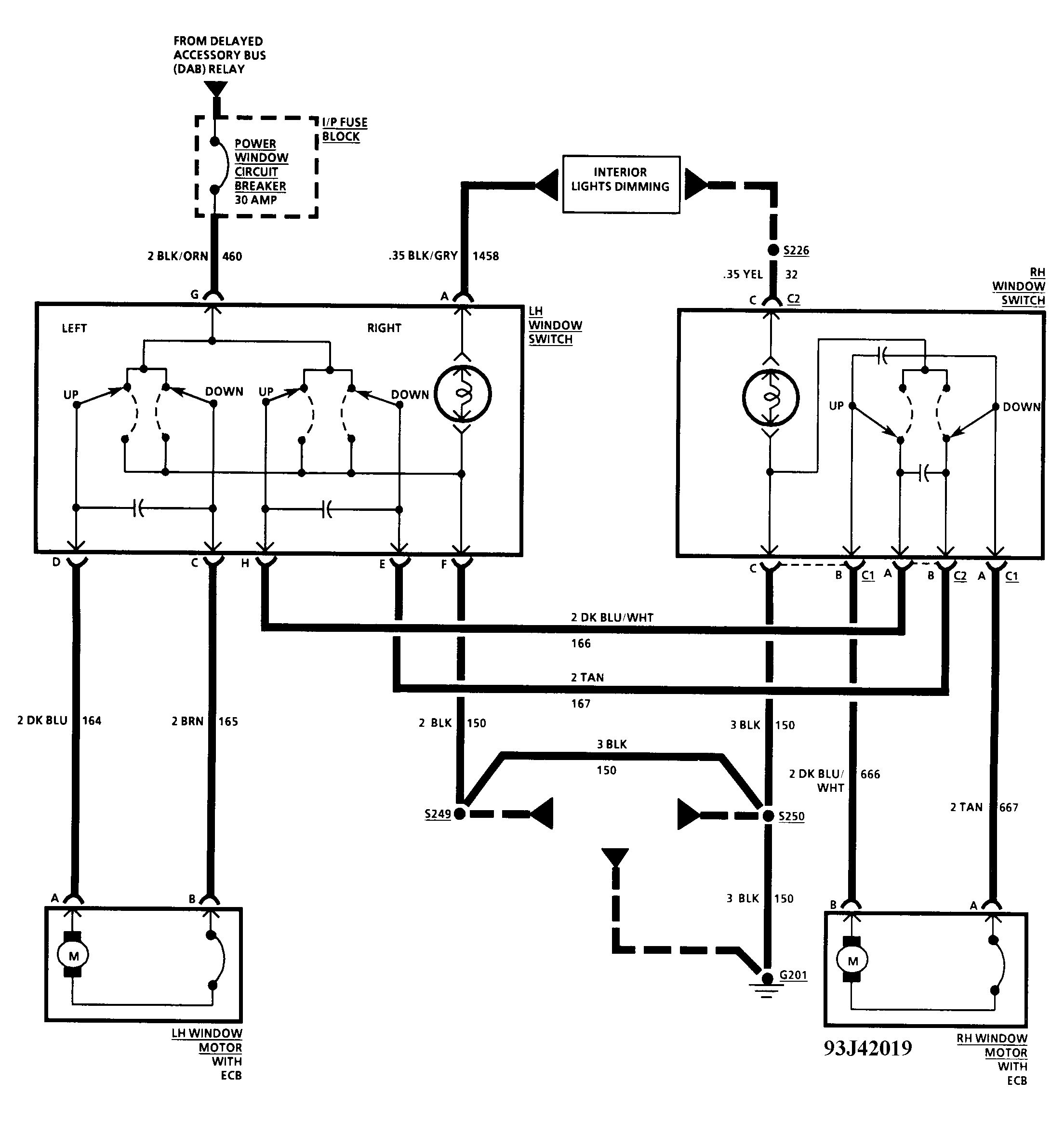

Fig 1: Power Windows Wiring Diagram
G93J42019Courtesy of GENERAL MOTORS CORP.
