A-8, Injector Coil Test Procedure (CPI)
A-8, Injector Coil Test Procedure (CPI)

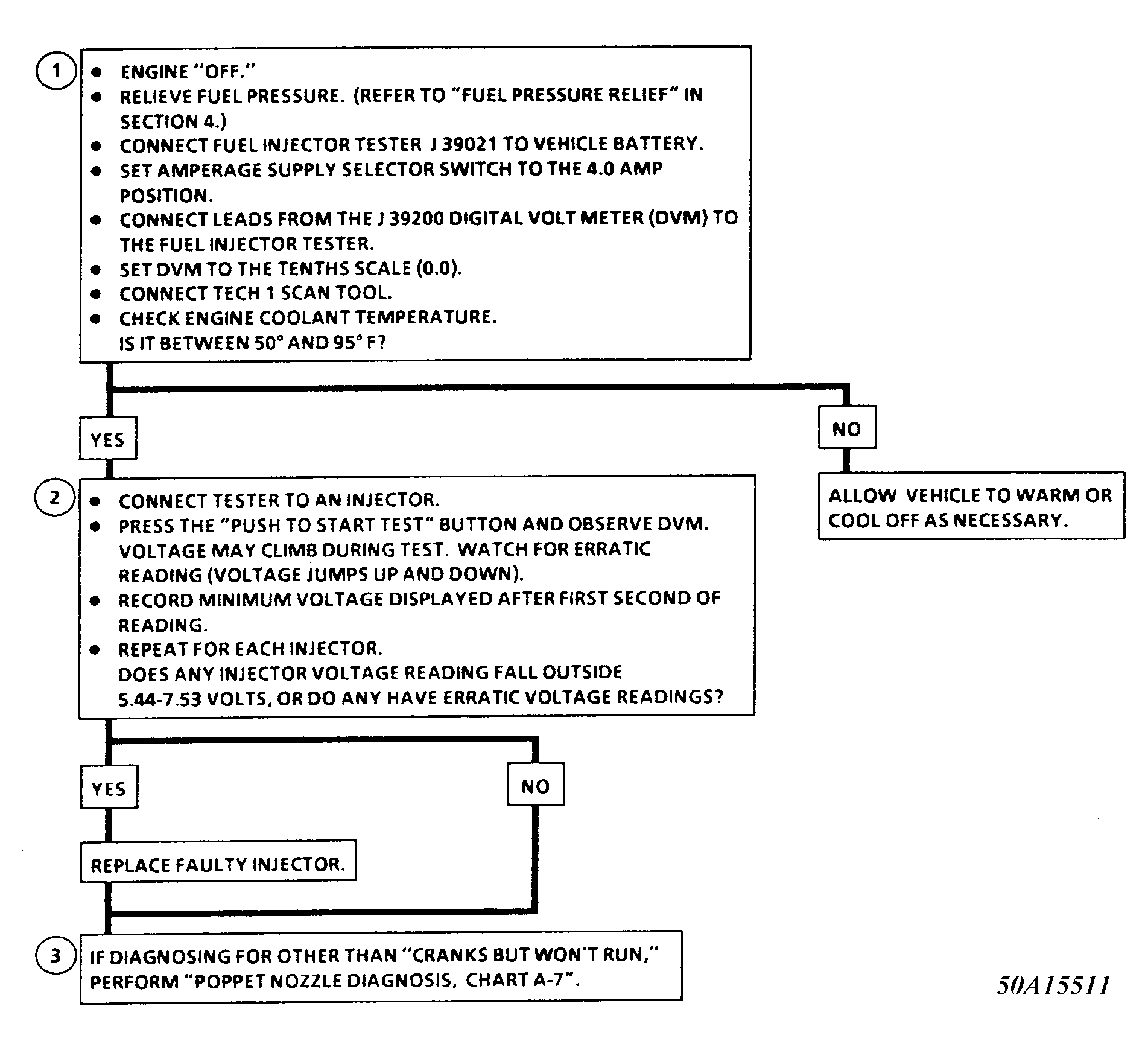

Fig 1: Chart A-8, Injector Coil Test Procedure (CPI)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
