Wiring Diagrams

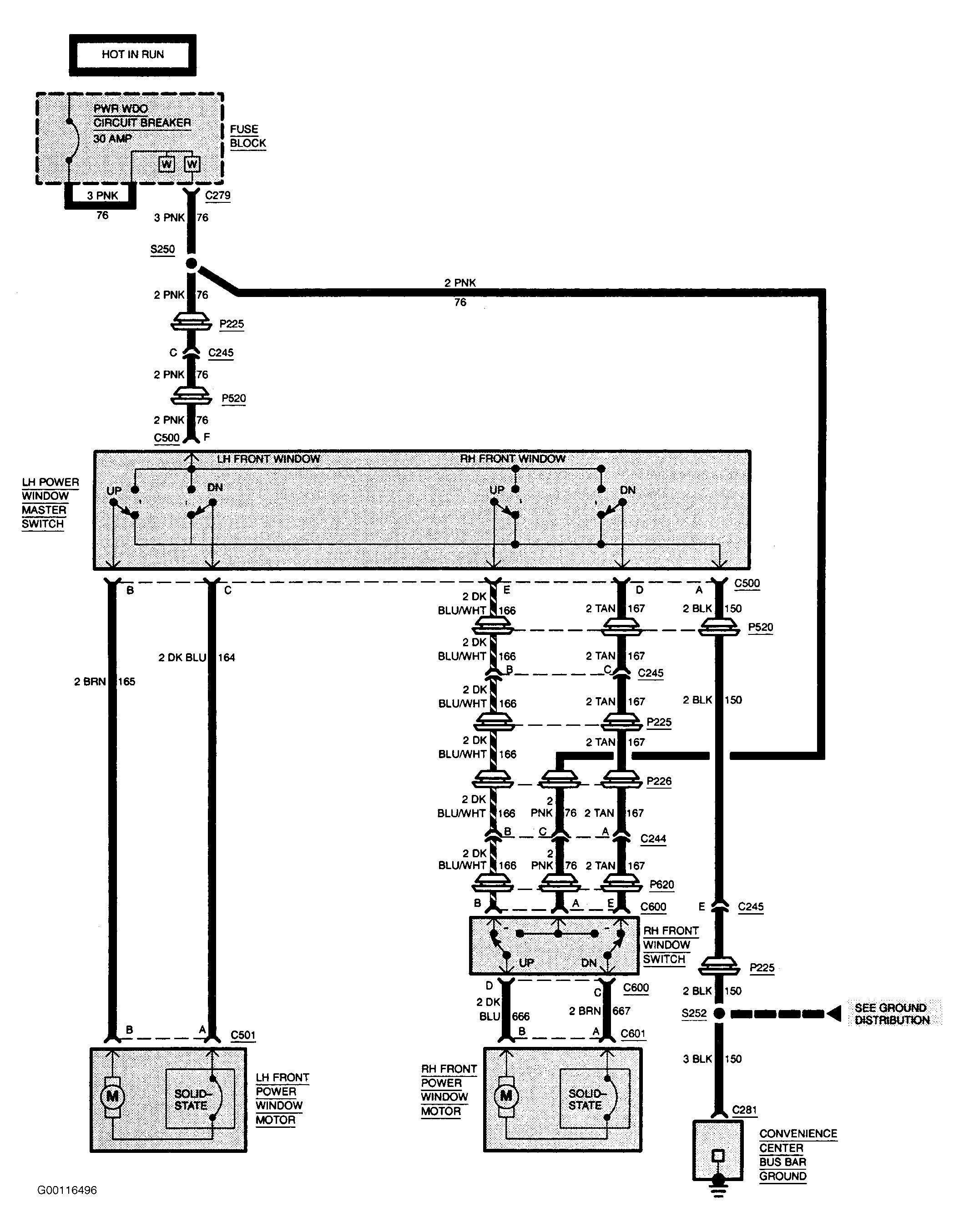

Fig 1: Power Window System Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
