Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

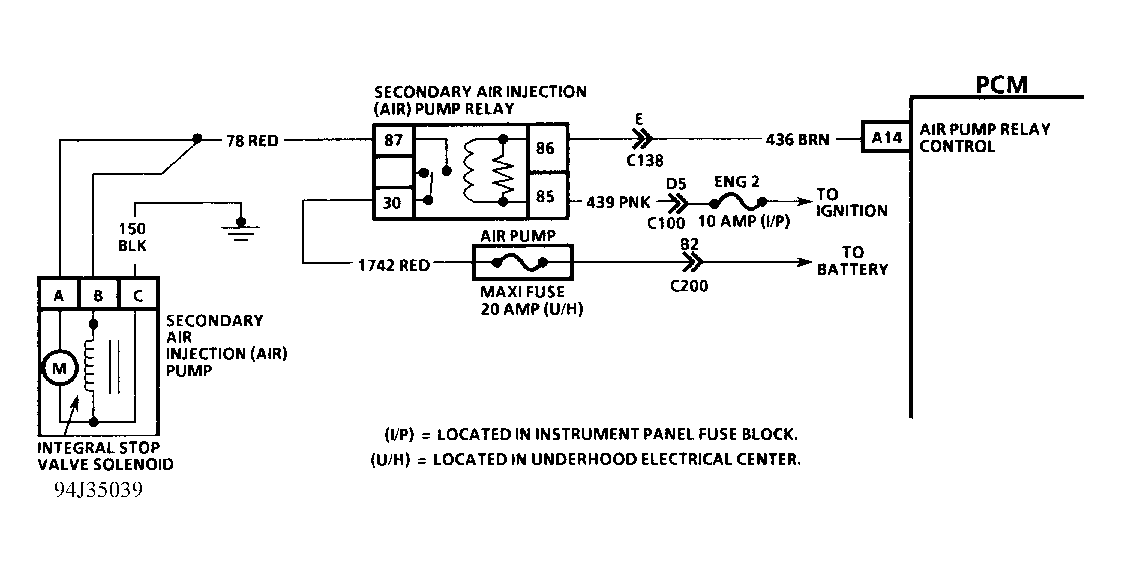

Fig 1: Code 29 Schematic (Corvette) Secondary Air Injection

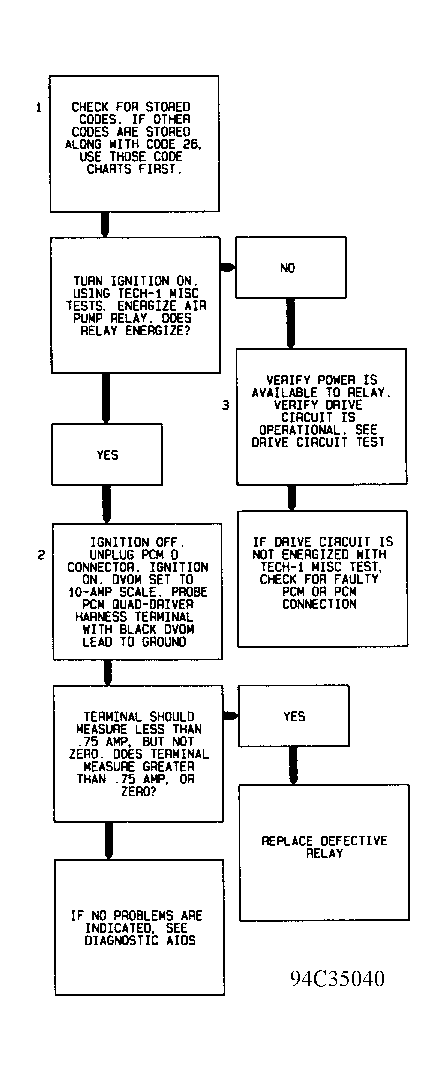

Fig 2: Code 29 Flow Chart (Corvette) Secondary Air Injection
