Connector Identification

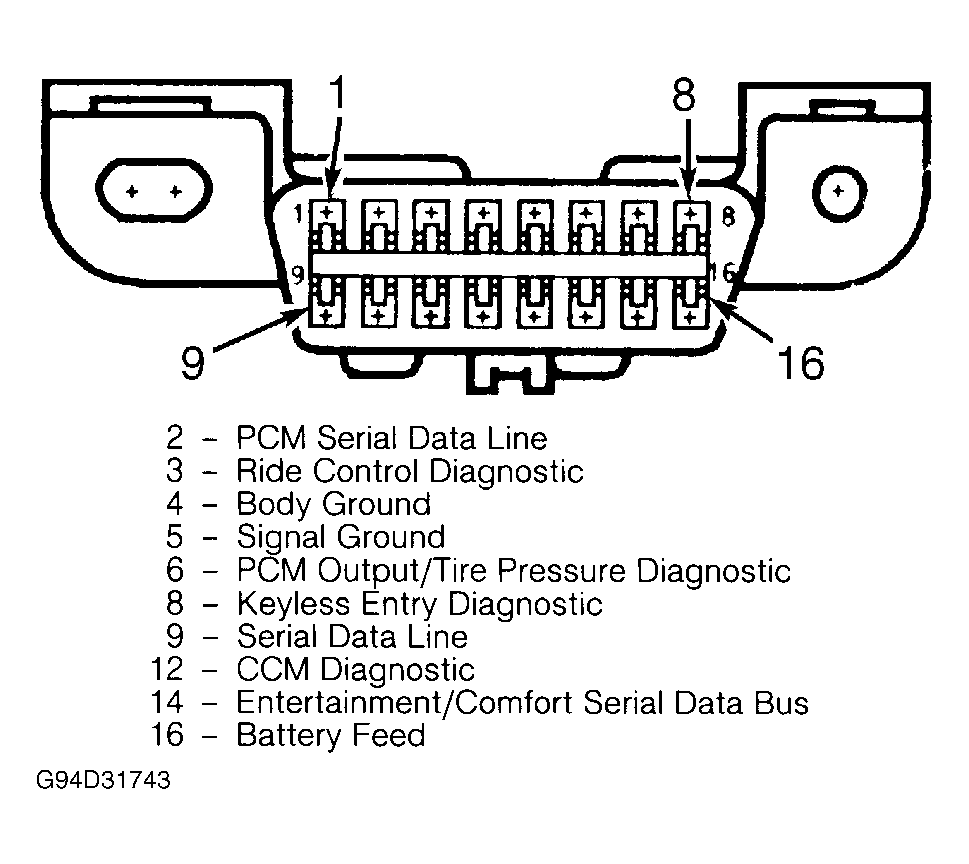

Fig 1: Identifying DLC Terminals

Courtesy of GENERAL MOTORS CORP.

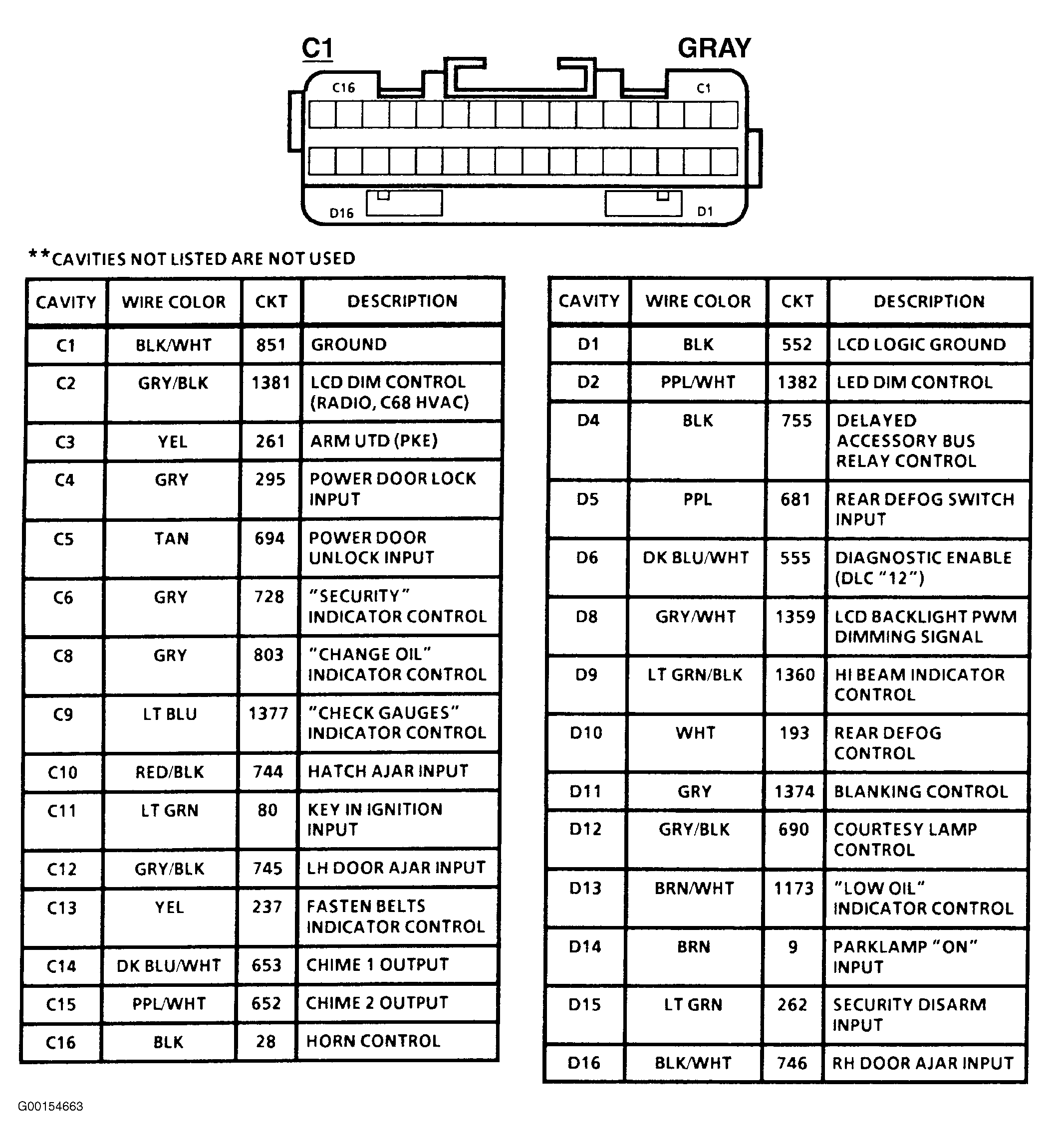

Fig 2: Identifying CCM C1 (Gray) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

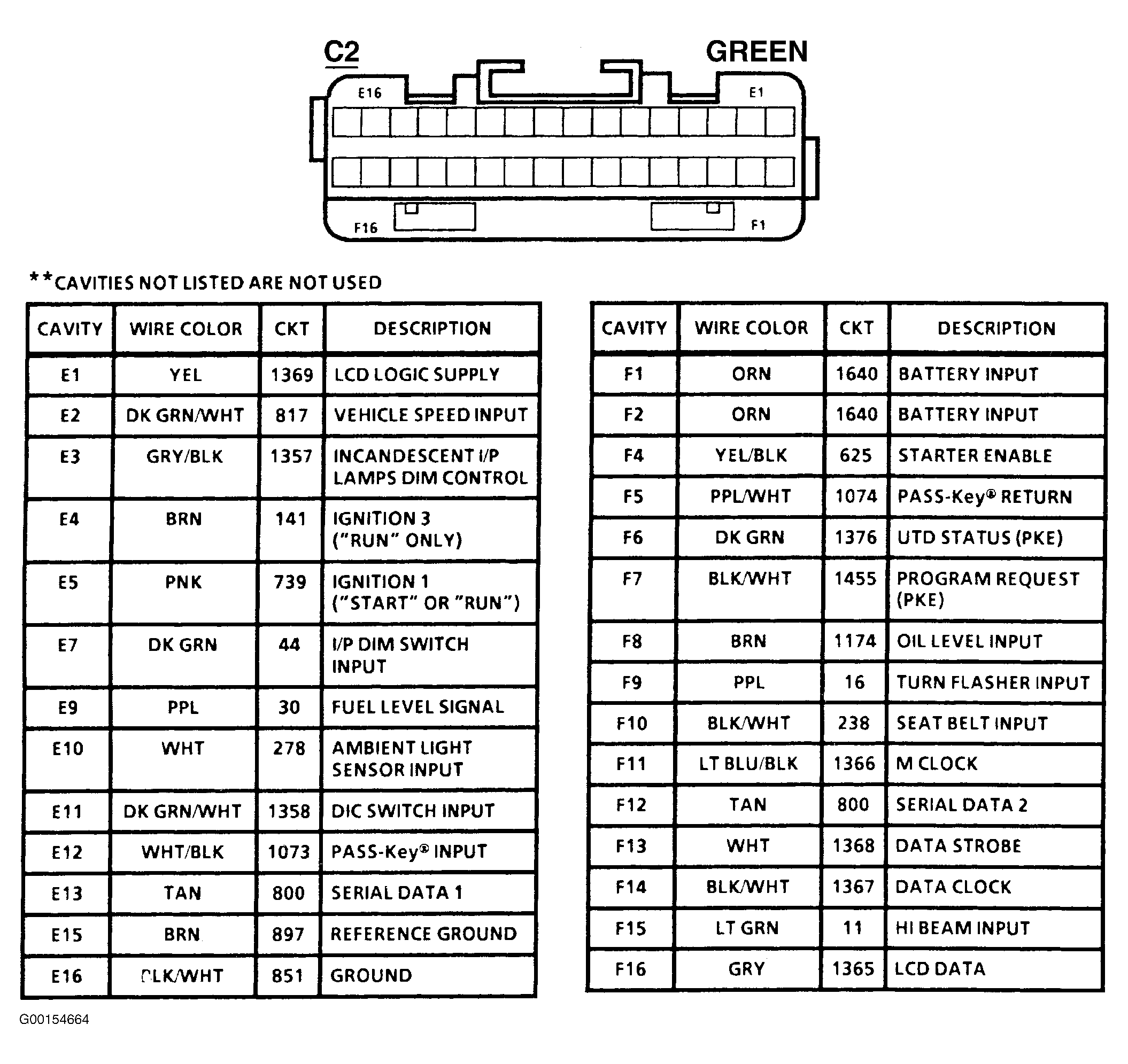

Fig 3: Identifying CCM C2 (Green) Connector Terminal

Courtesy of GENERAL MOTORS CORP.
