Chart 1A, All Positions Do Not Operate
Chart 1A, All Positions Do Not Operate

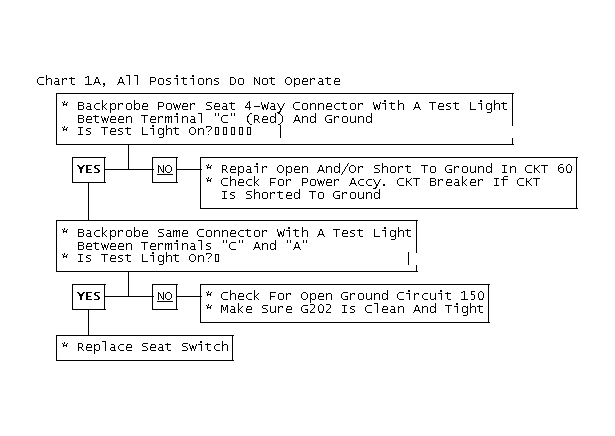

Fig 1: Chart 1A, All Positions Do Not Operate
