Wiring Diagrams

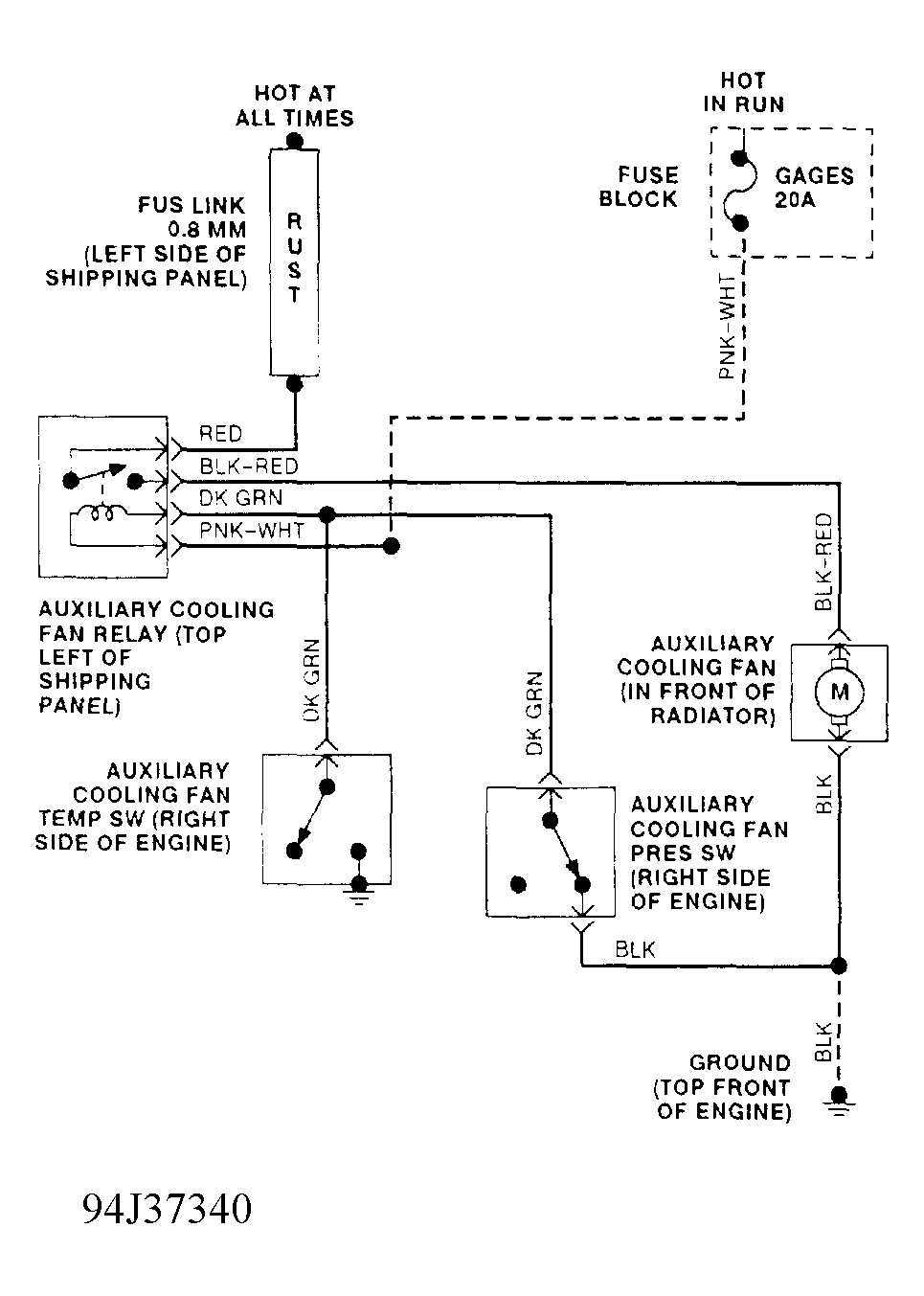

Fig 1: Cooling Fan Circuit Wiring Diagram ("C" & "K" Series - 7.4L VIN N)

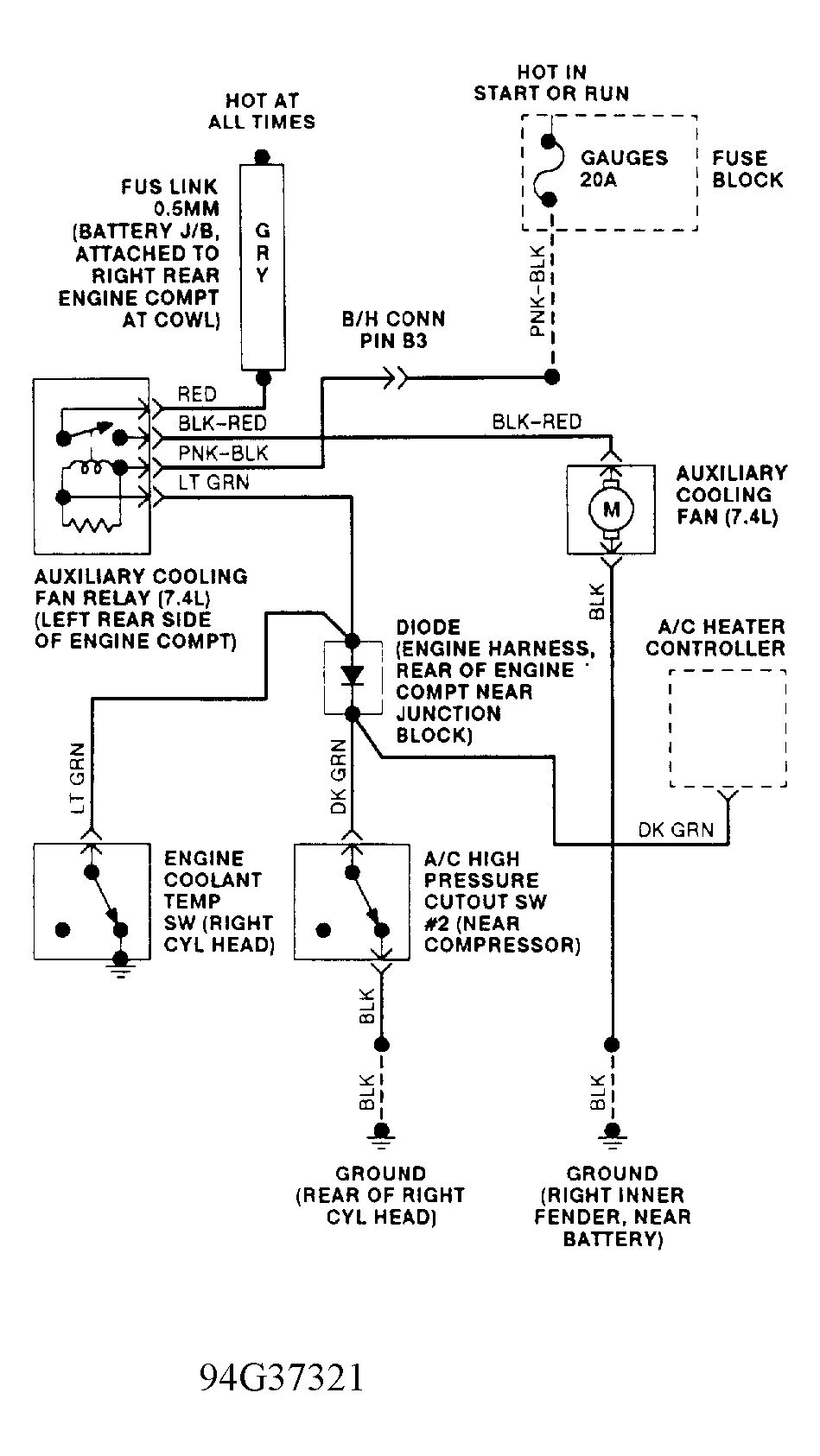

Fig 2: Cooling Fan Circuit Wiring Diagram ("G" Series - 7.4L VIN N)

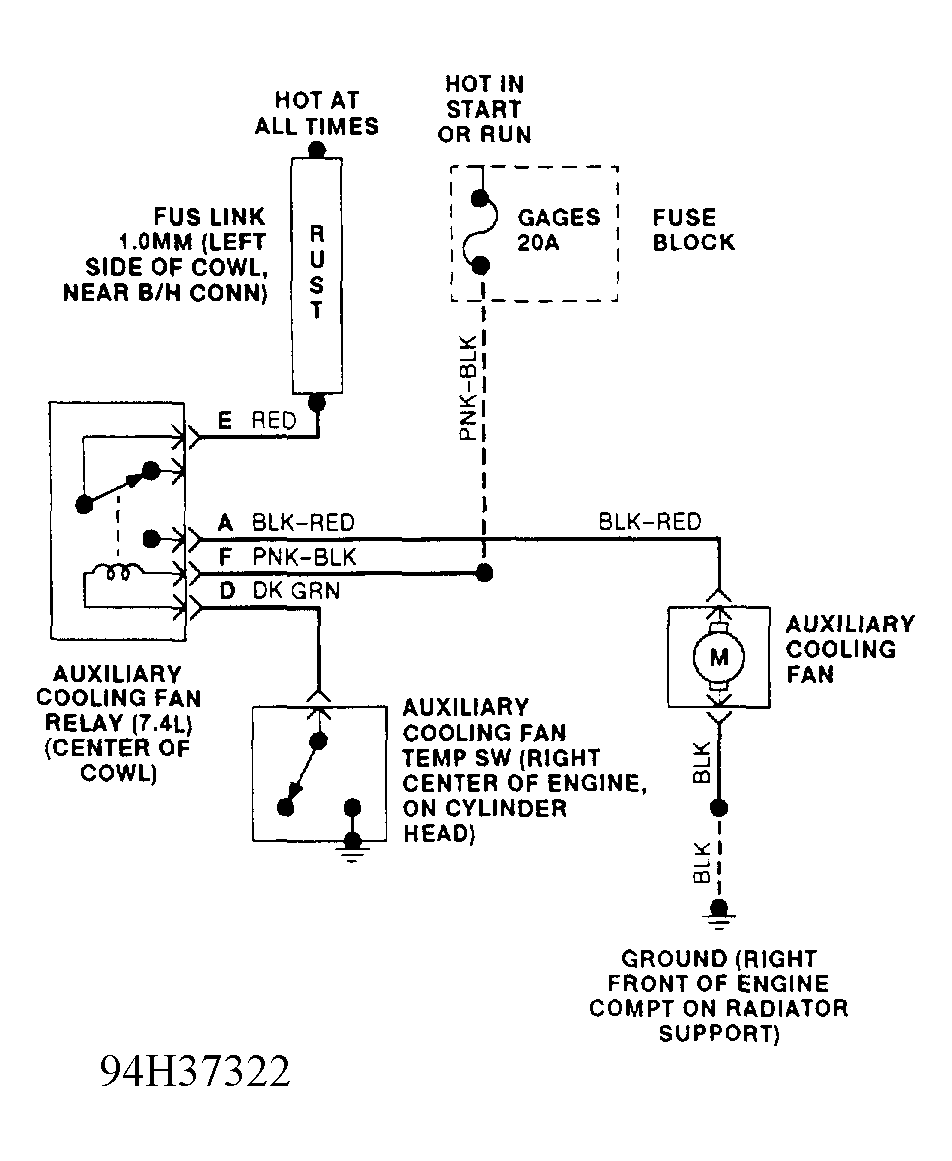

Fig 3: Cooling Fan Circuit Wiring Diagram ("P" Series - 7.4L VIN N)
