Terminal Identification

NOTE: To identify Electronic Brake Control Module (EBCM) connector terminals, see appropriate illustration. See Fig 1 .

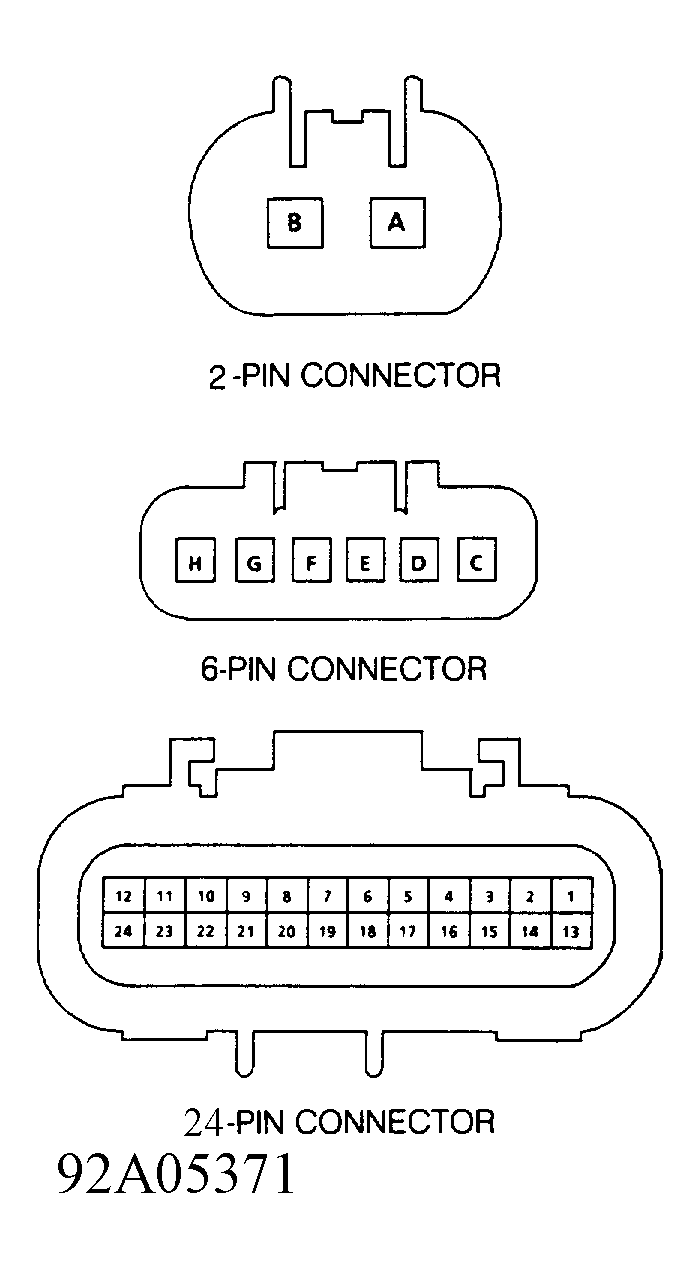

Fig 1: Electronic Brake Control Module (EBCM) Connector Terminal ID

Courtesy of GENERAL MOTORS CORP.
