Connector Identification

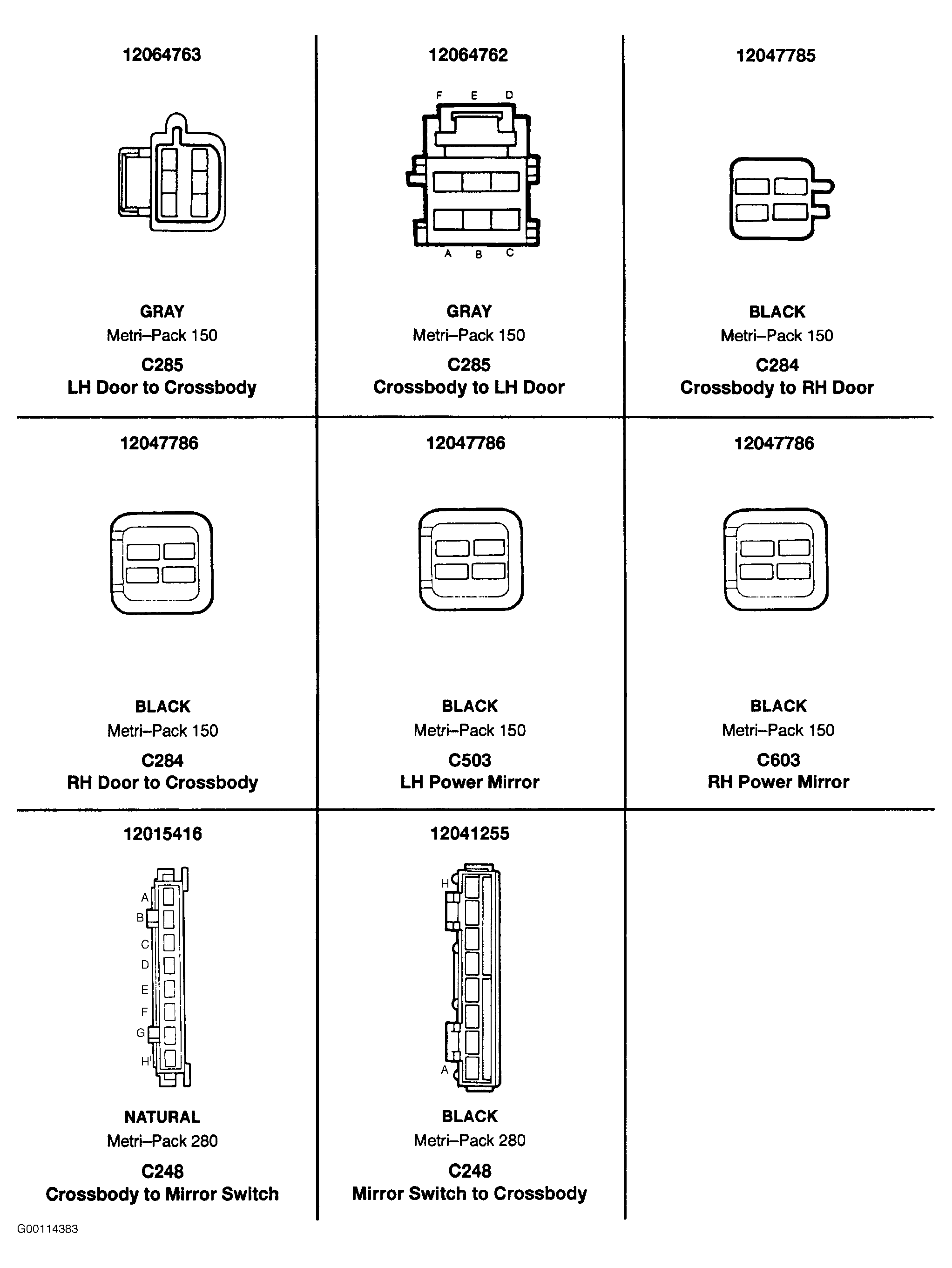

Fig 1: Identifying Power Mirror Connectors
G00114383Courtesy of GENERAL MOTORS CORP.
