Abs Light Driver Module: Removal

1. Turn ignition off. Disconnect negative battery cable. Remove glove box. Locate light driver module behind right side of instrument panel. SeeFig 1 . Connector is Light Green. Module is taped to instrument panel harness.
2. Open connector and slide light driver circuit board out of connector. To install, reverse removal procedure.

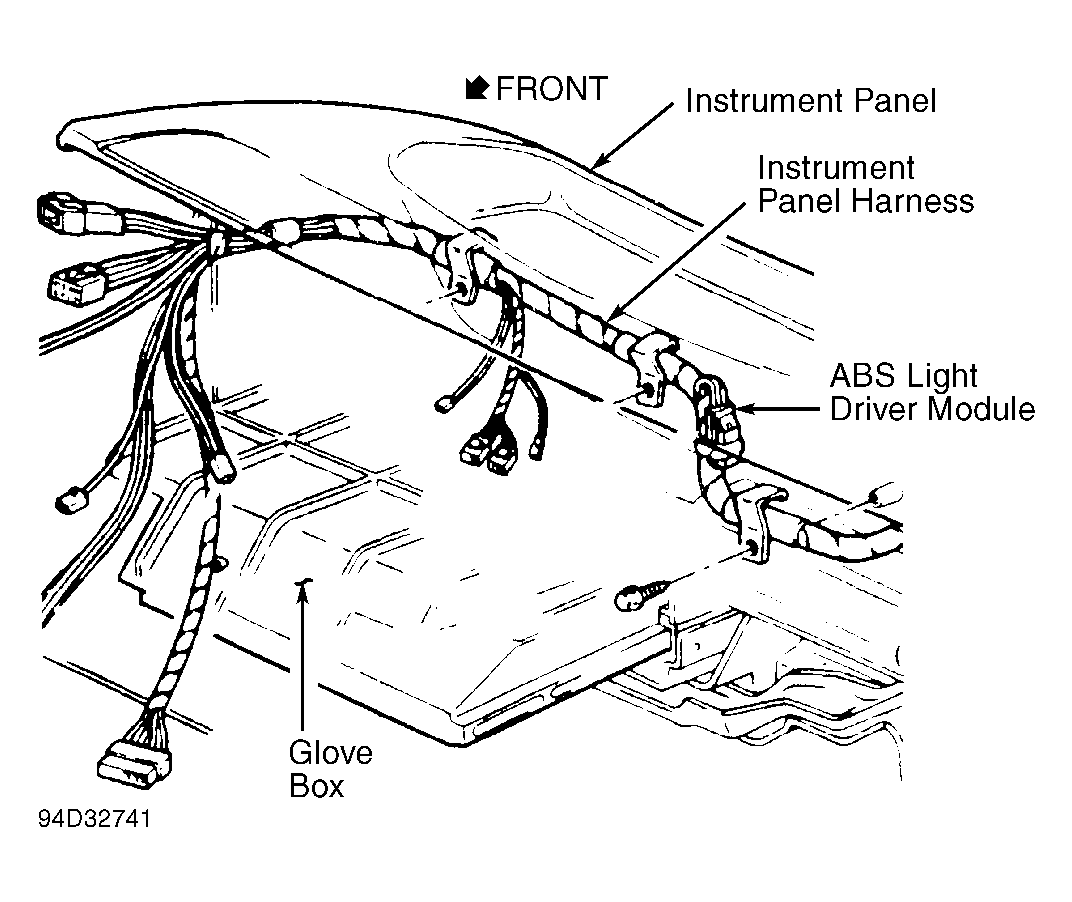

Fig 1: Locating ABS Light Driver Module

Courtesy of GENERAL MOTORS CORP.
