Component Locations

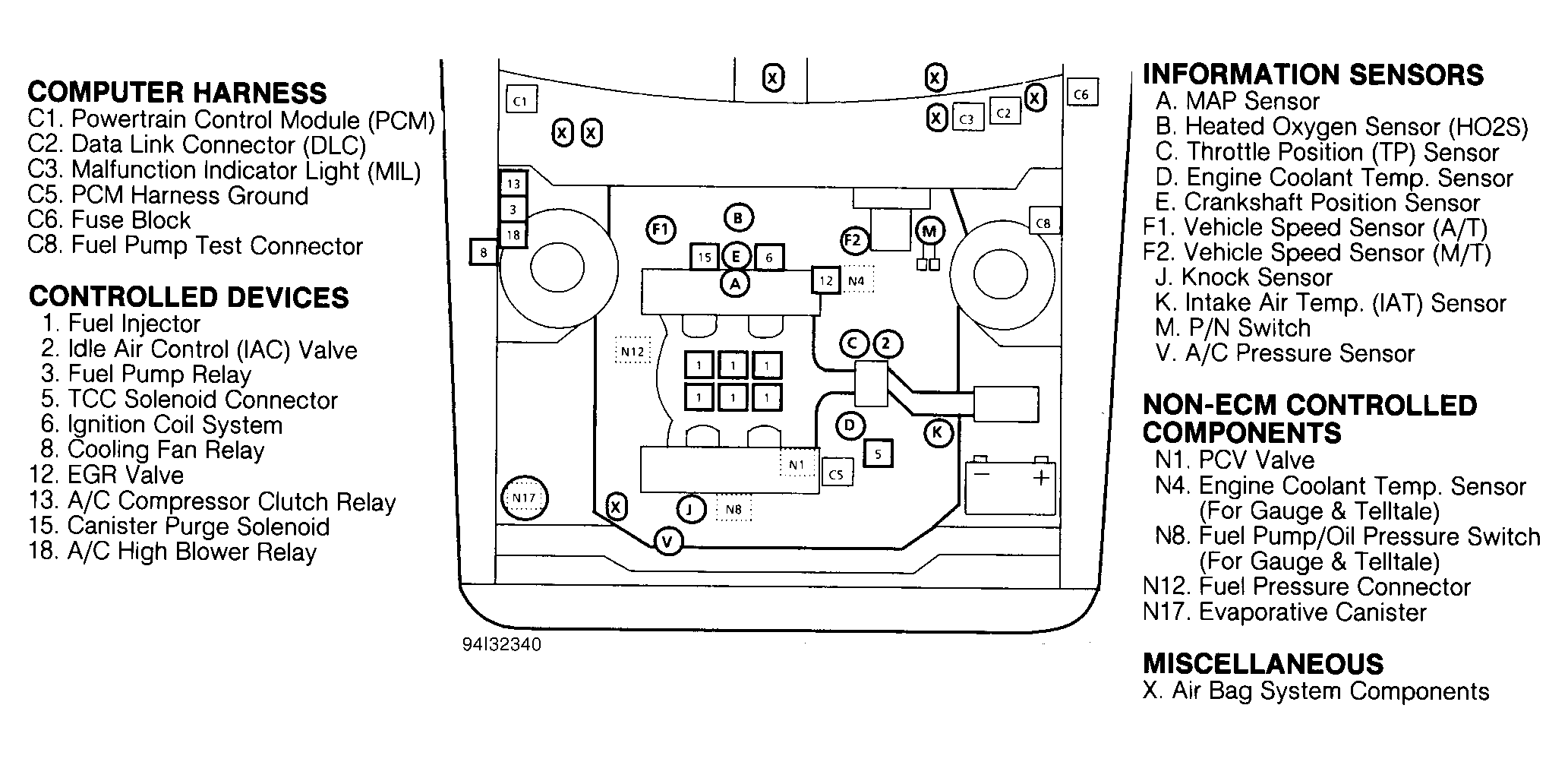

Fig 1: Component Locations (3.1L VIN M)
G94I32340Courtesy of GENERAL MOTORS CORP.
