Corvette Base, 2D Convertible, Automatic
›
Repair and Diagnosis
›
Accessories & Equipment
›
Communication Devices
›
Central Control Module & Data Link Communications
›
Connector Identification
Connector Identification
Fig 1: Identifying Data Link Connector (DLC) Terminals
Courtesy of GENERAL MOTORS CORP.

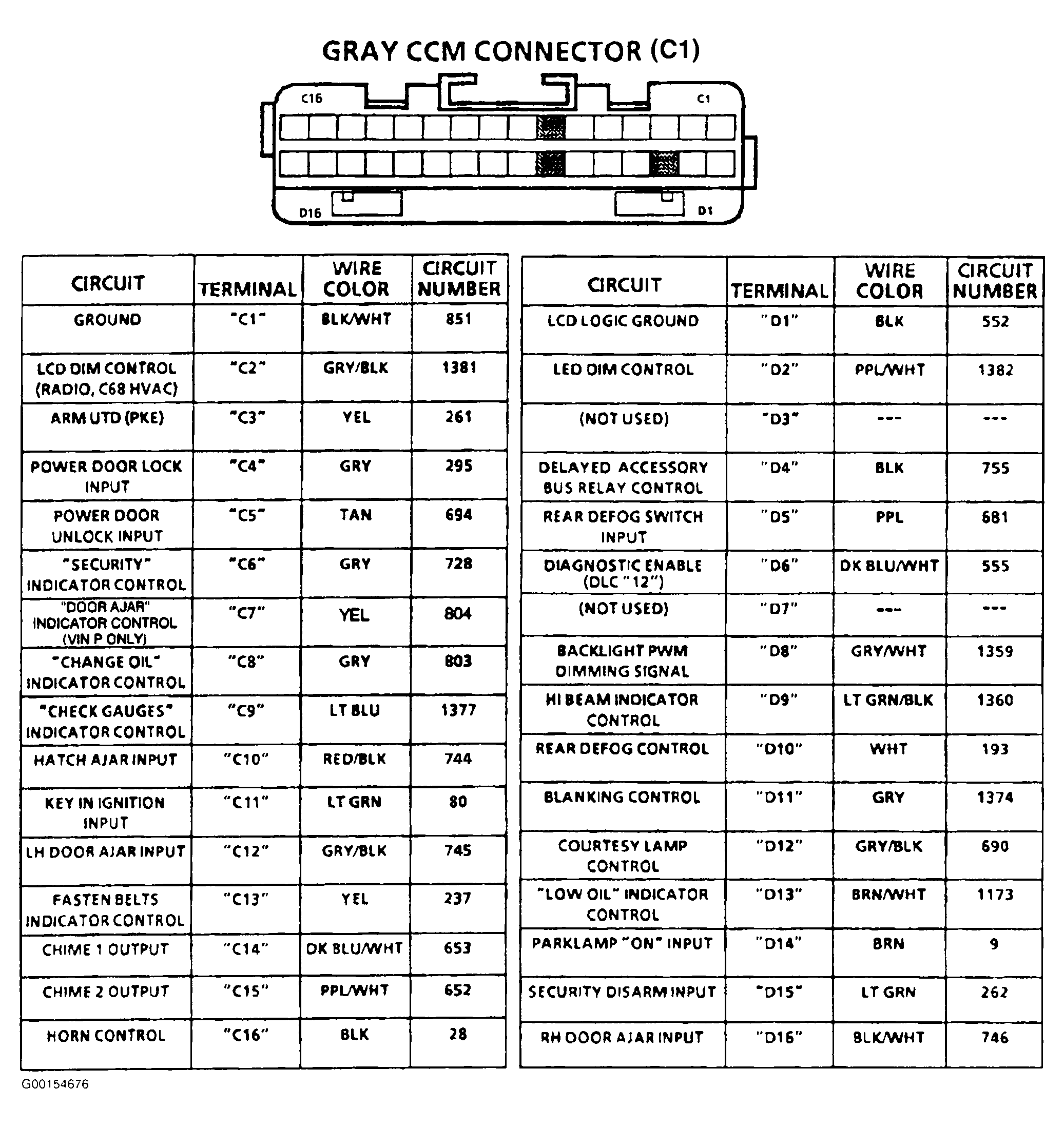

Fig 2: Identifying CCM C1 (Gray) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

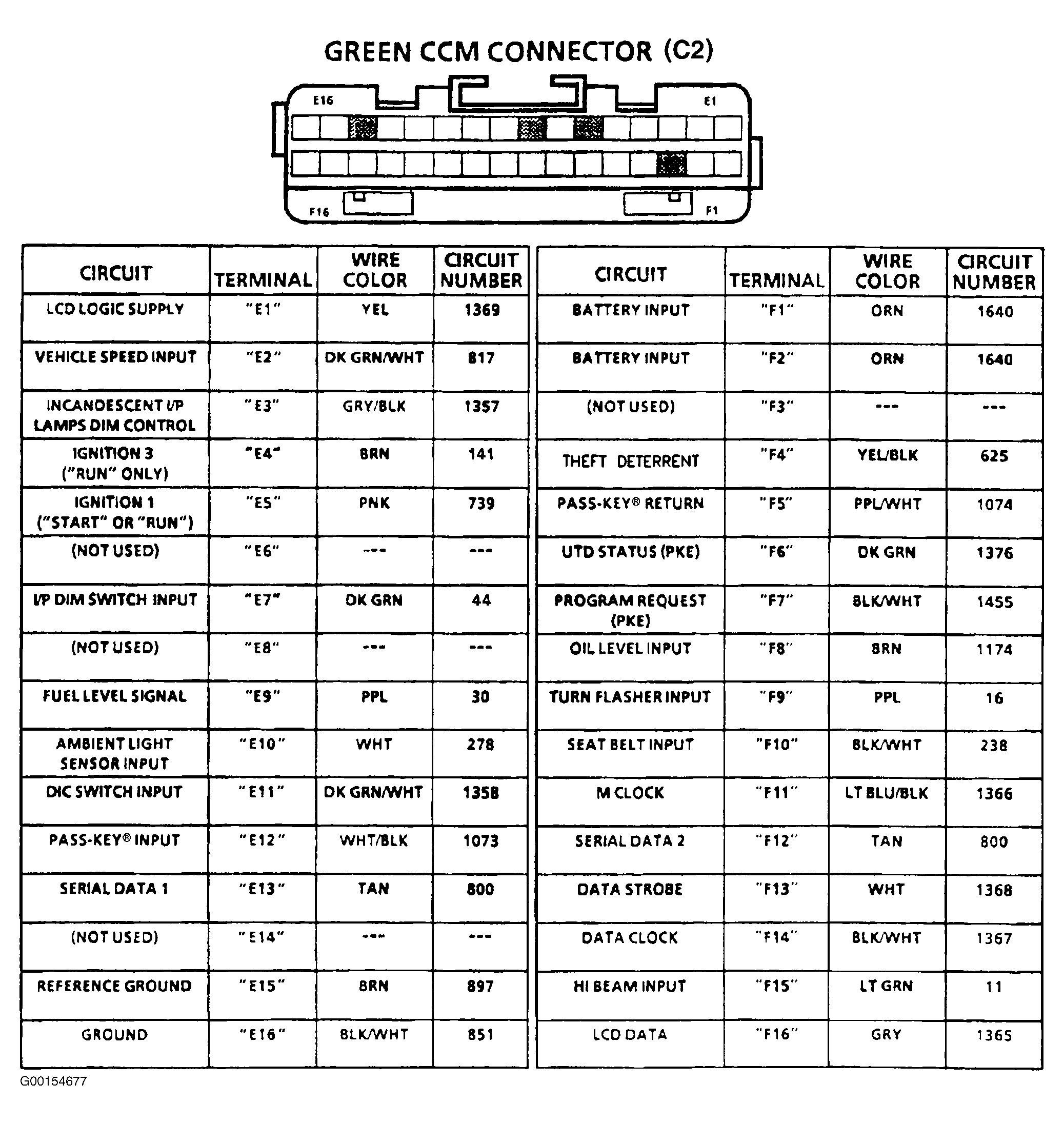

Fig 3: Identifying CCM C2 (Green) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
