Component Locations

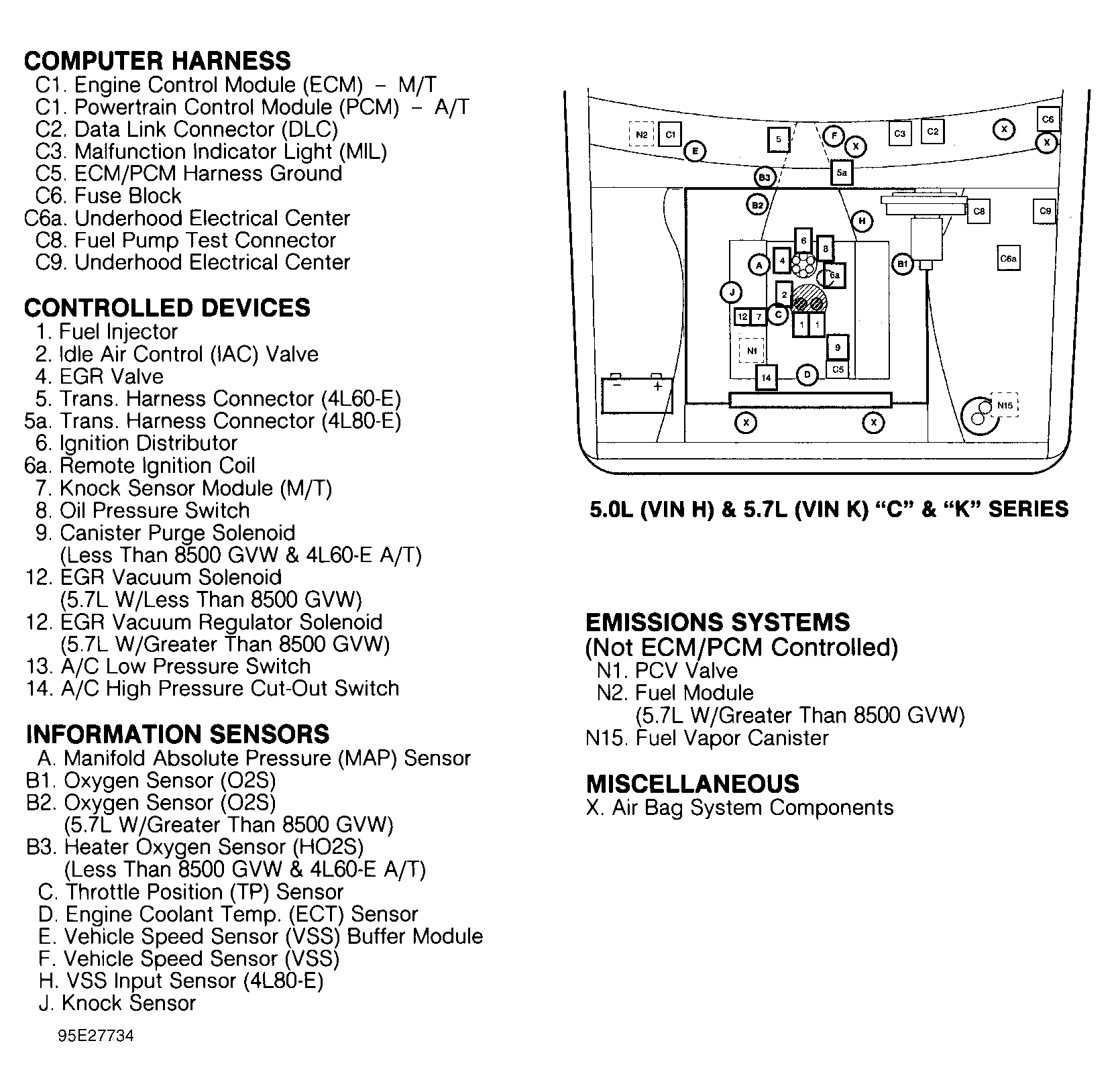

Fig 1: Component Location For 5.0L (VIN H) "C" & "K" Series
G95E27734Courtesy of GENERAL MOTORS CORP.

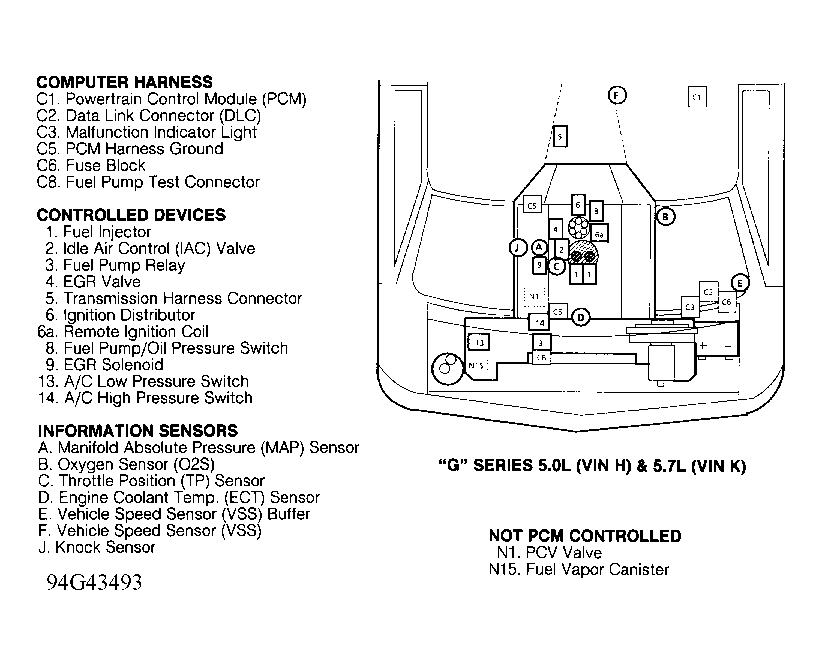

Fig 2: Component Location For 5.0L (VIN H) "G" Series
G94G43493Courtesy of GENERAL MOTORS CORP.
