Diagnostic Aids

Check all connections, especially those at transmission pass-thru connector. If code is intermittent, see INTERMITTENTS in TESTS W/O CODES - GASOLINE article.

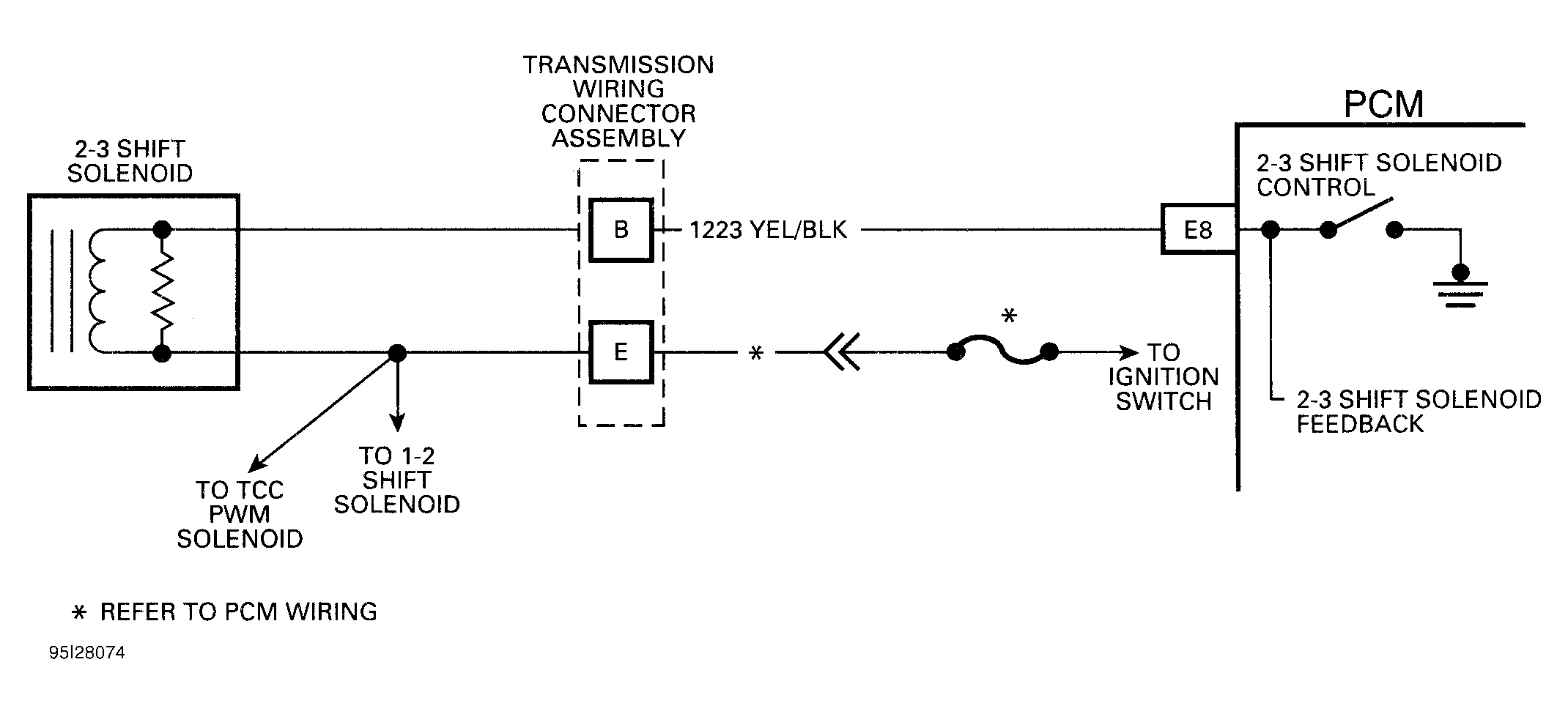

Fig 1: Code 81 Schematic (All Models) Transmission 2-3 Error

Fig 2: Code 81 Flow Chart (All Models) Transmission 2-3 Error
