Diagnostic Aids

Scan tester does not have ability to help diagnose a Code 42 problem. See INTERMITTENTS in TESTS W/O CODES article in this section.

Fig 1: Code 42 Schematic (3.1L) IC Circuit Open/Grounded

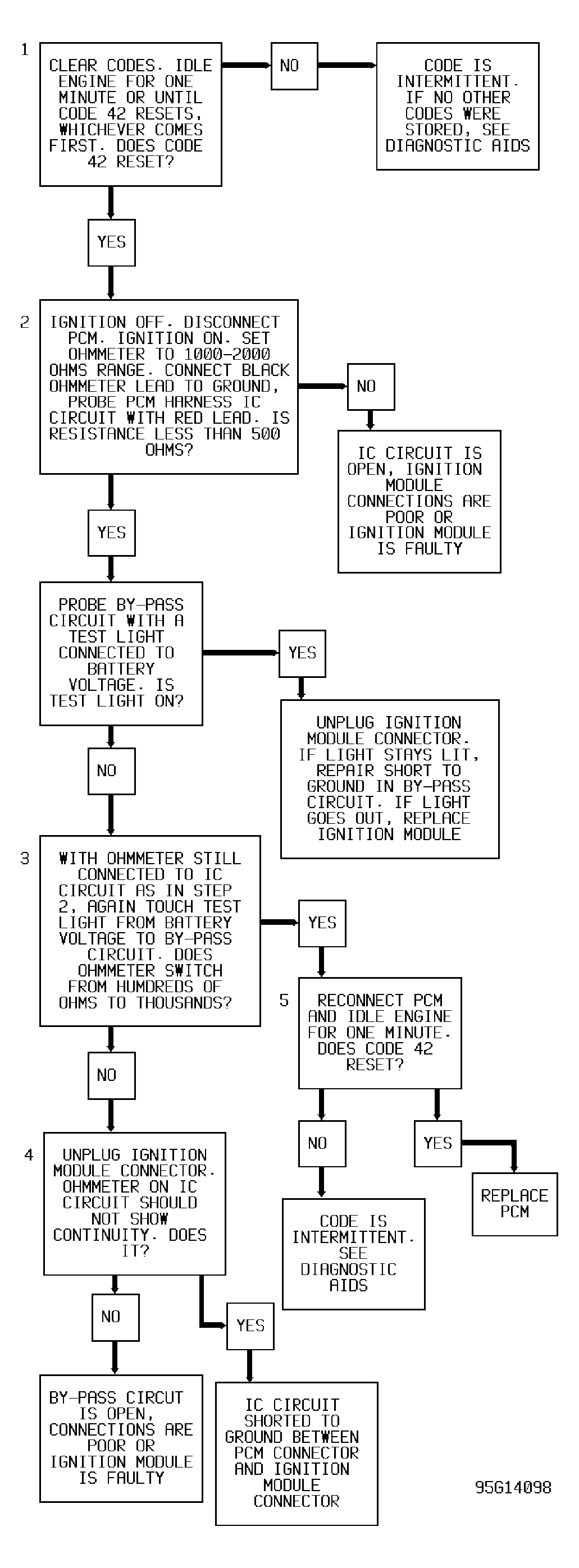

Fig 2: Code 42 Diagnostic Flow Chart (3.1L) IC Circuit Open/Grounded
