Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| ABS In-Line Fuse | Taped to instrument panel harness, under left side of dash. |
| Air Bag In-Line Fuse | Under left side front of dash. |
| Circuit Breakers | In fuse block. |
| Convenience Center | Under left side of dash. |

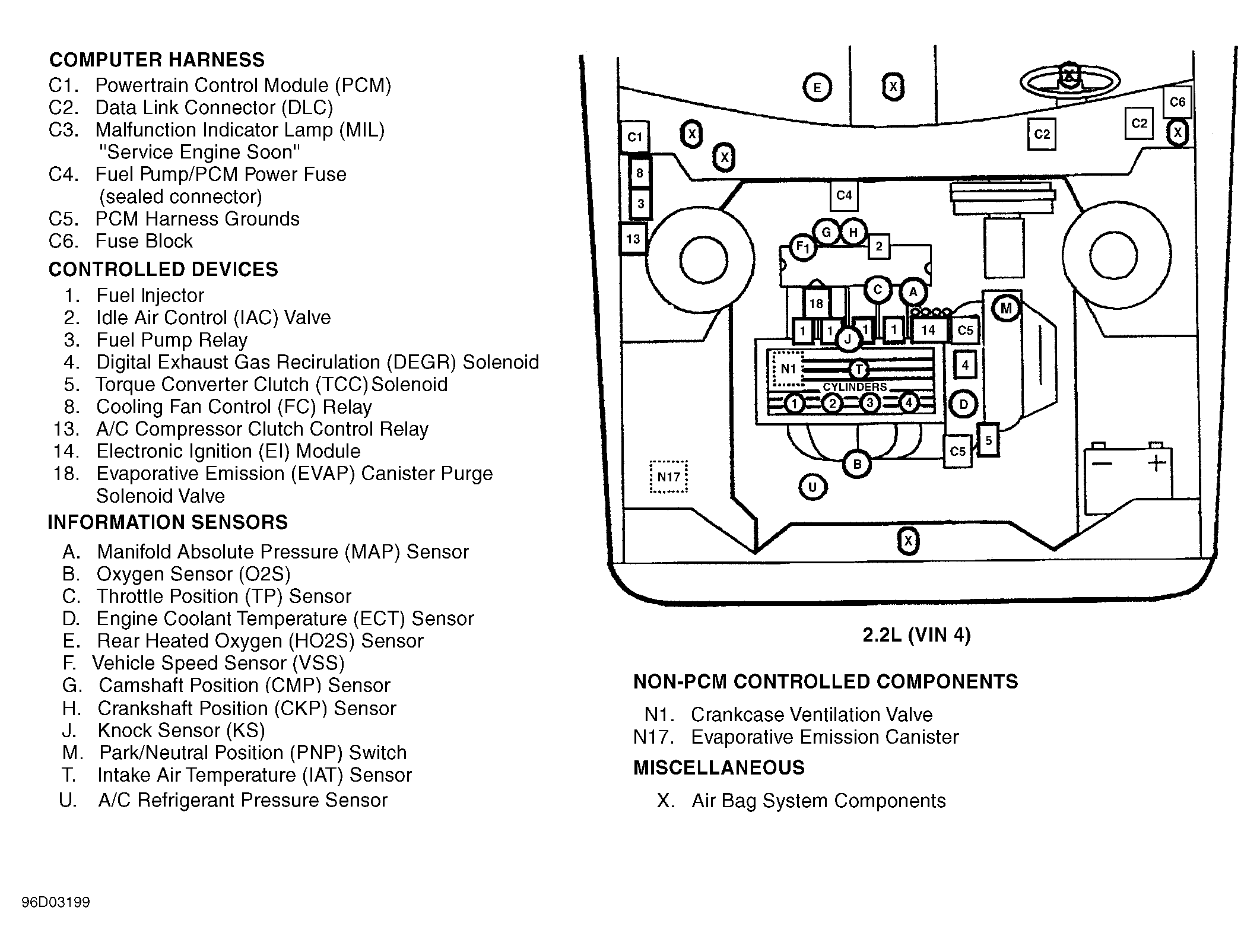

| Fuel Pump/PCM Power Fuse (2.2L VIN 4) | On center of firewall. See Figure . |
| Fuse Block (2.2L VIN 4) | On left side of dash pad. See Figure . |

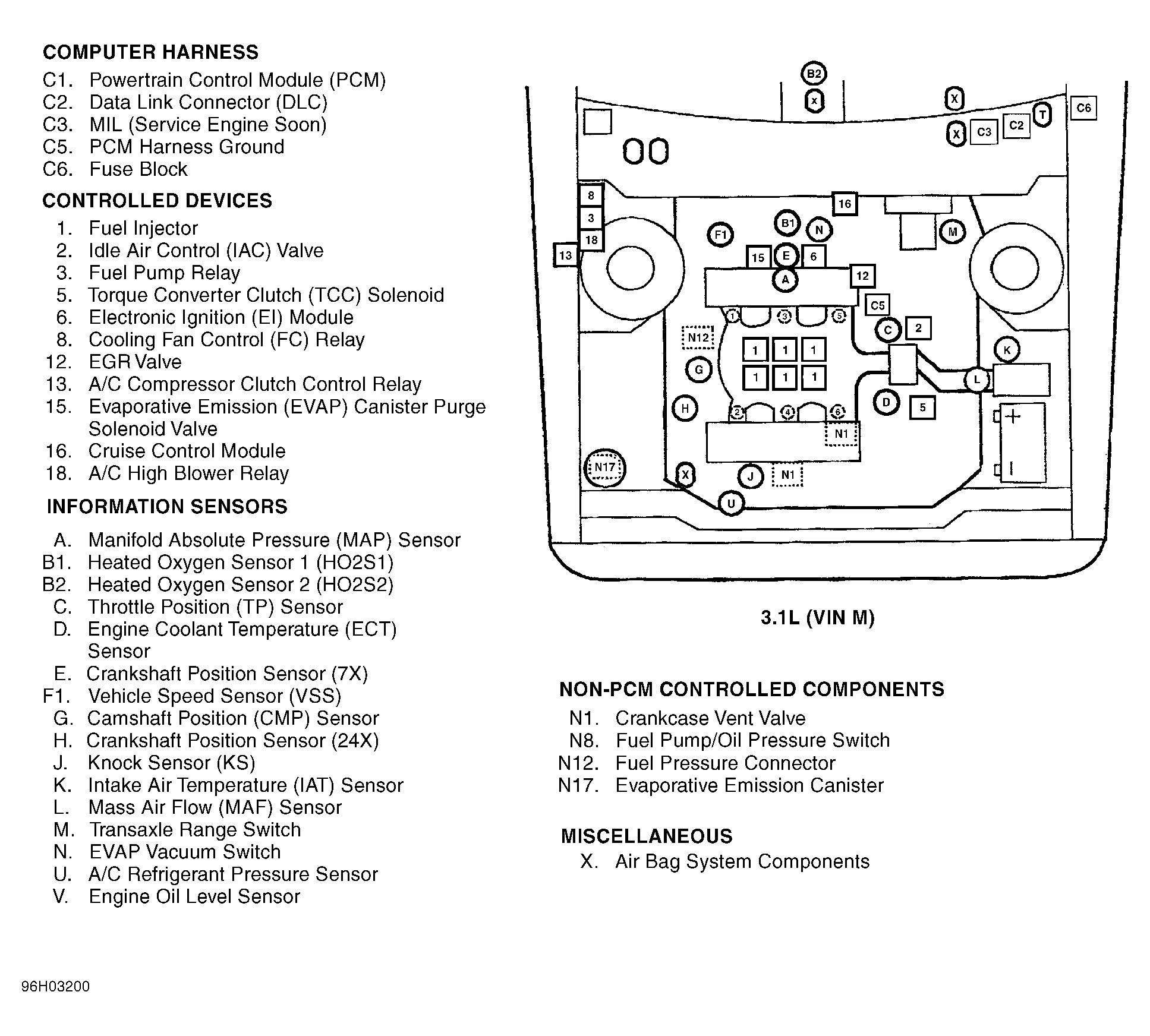

| Fuse Block (3.1L VIN M) | On left side of dash pad. See Figure . |
| Fusible Links | On starter solenoid. |
| In-Line Fuse A | Under left side front of dash. |
