Pcm Connectors

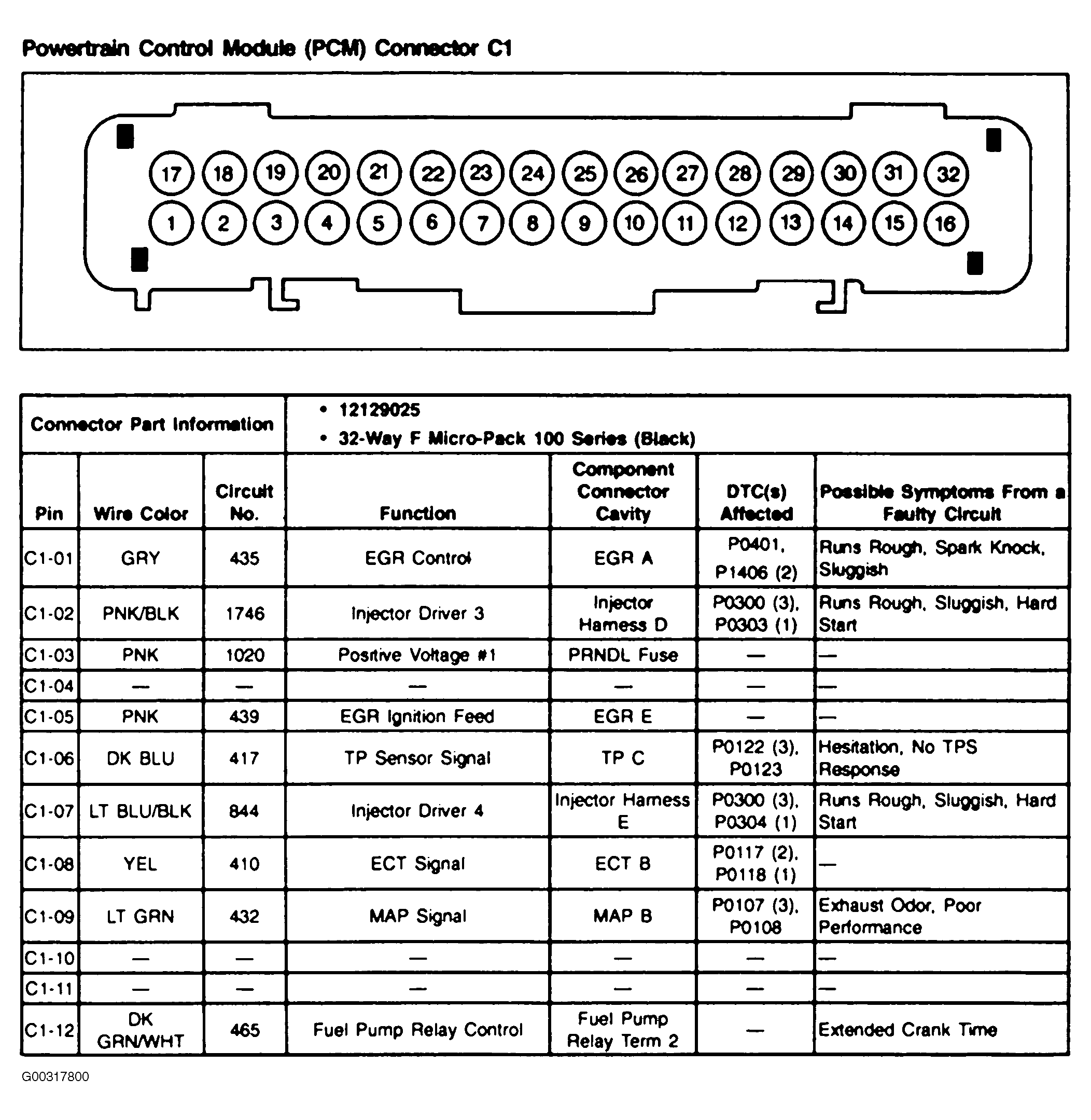

Fig 1: Connector C1 (1 Of 2)

G00317800

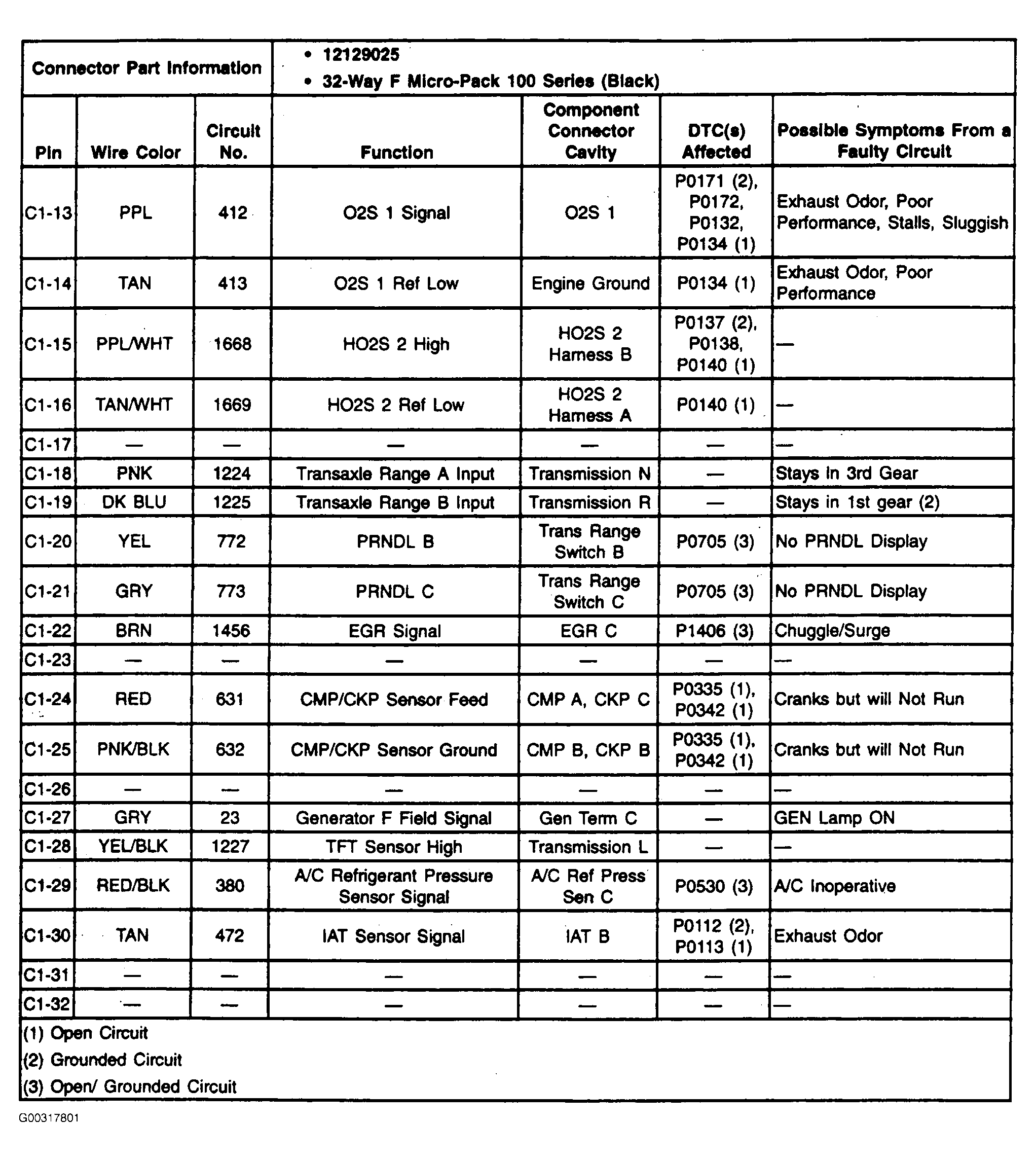

Fig 2: Connector C1 (2 Of 2)

G00317801

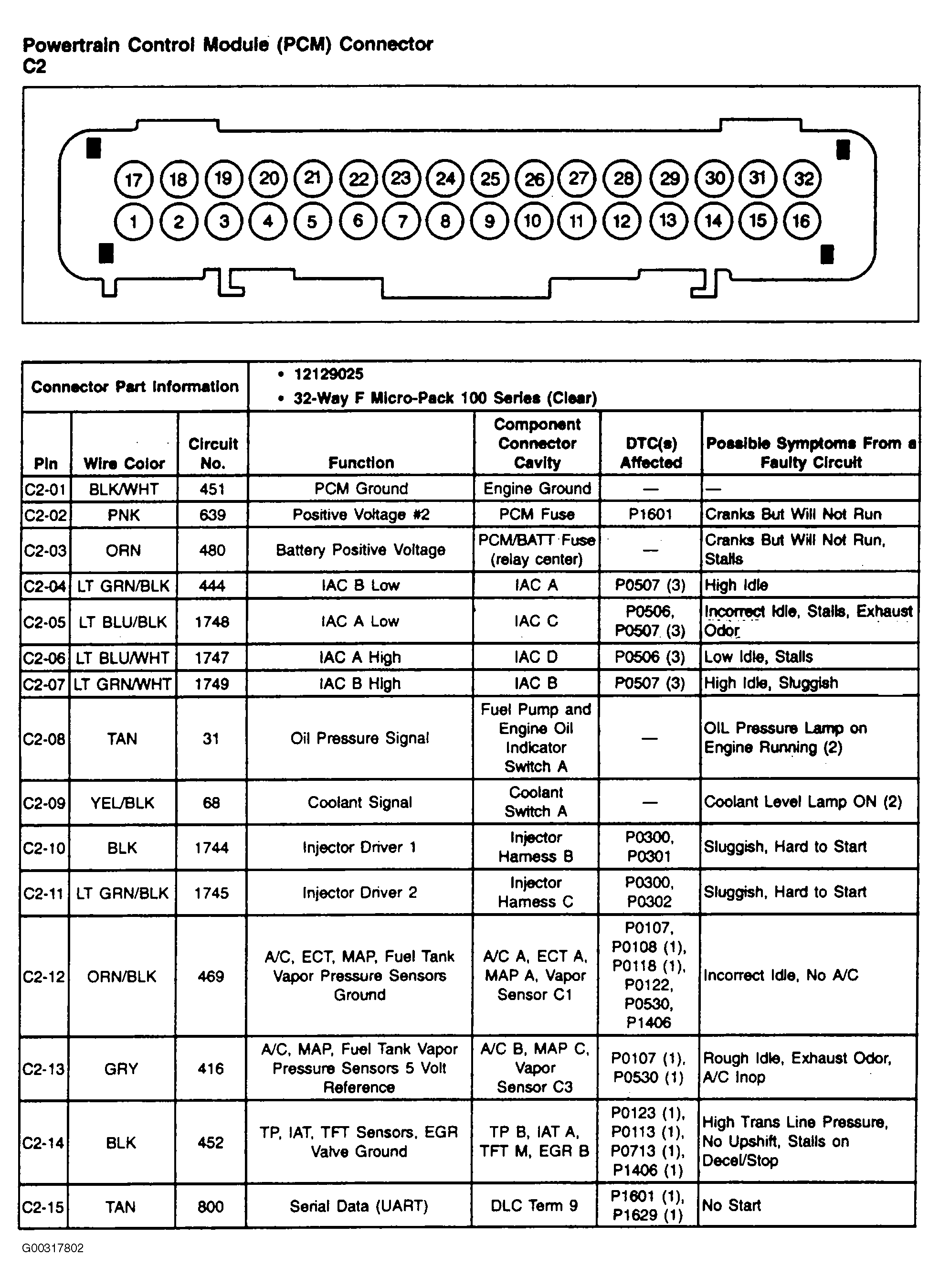

Fig 3: Connector C2 (1 Of 2)

G00317802

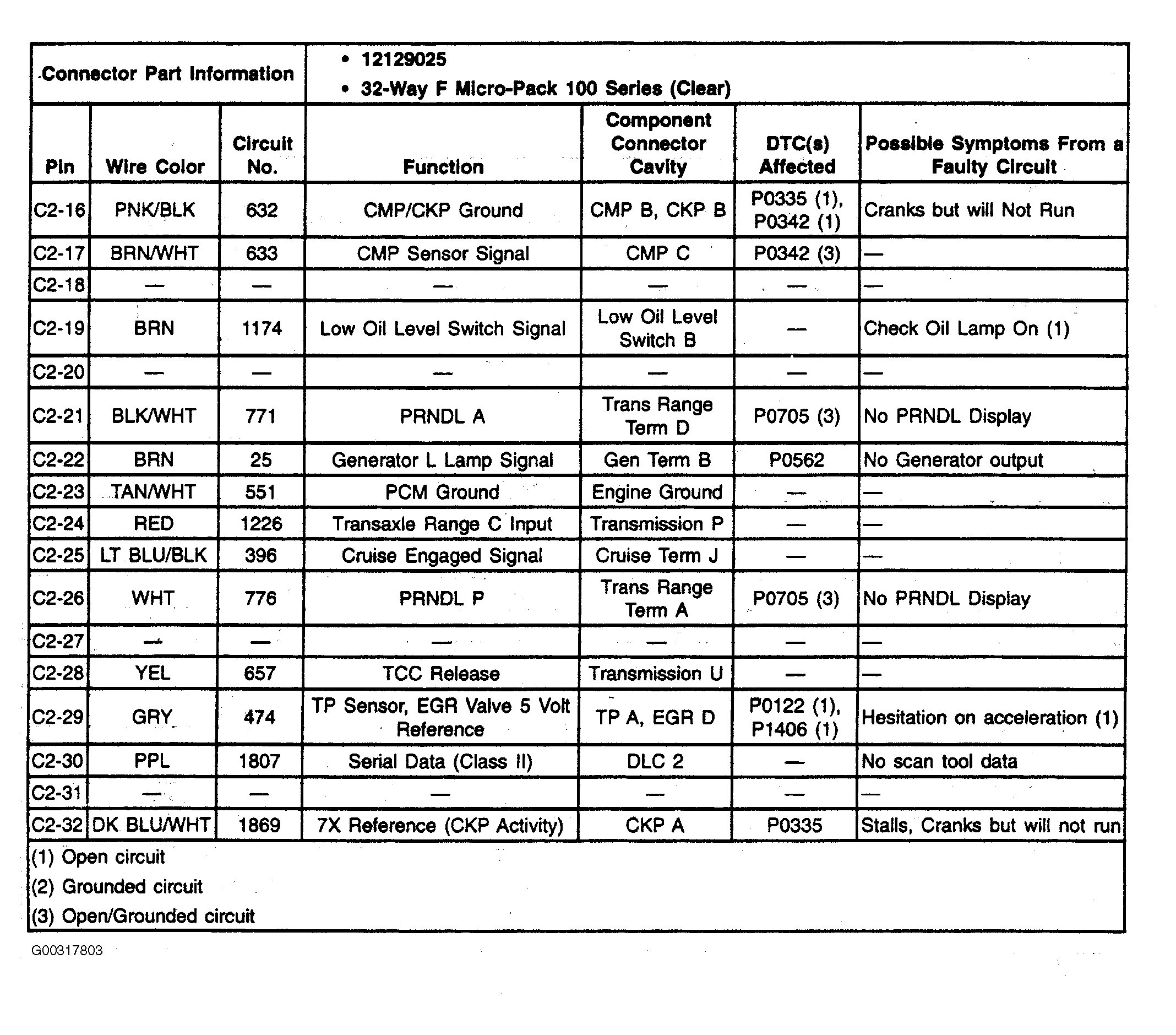

Fig 4: Connector C2 (2 Of 2)

G00317803

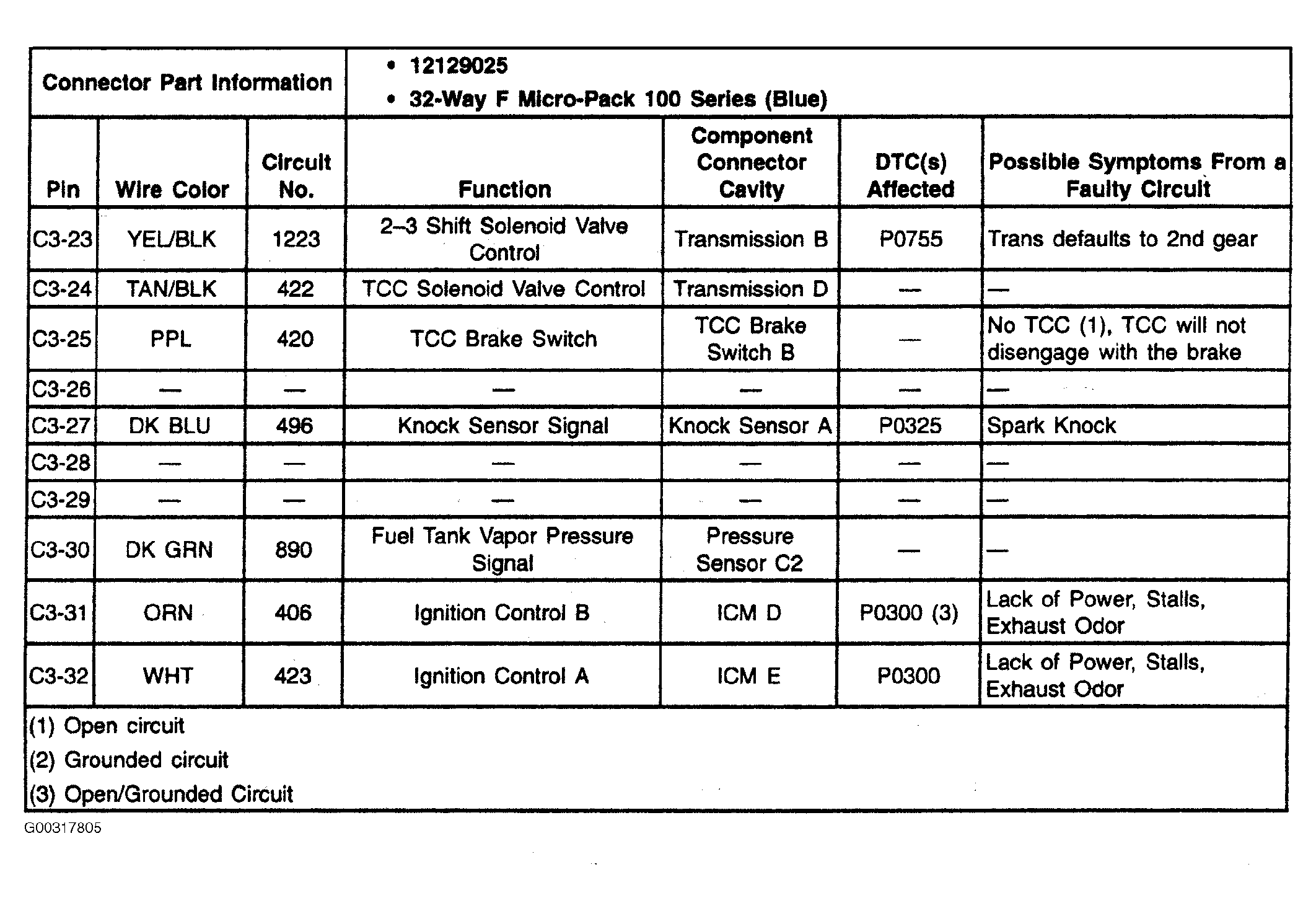

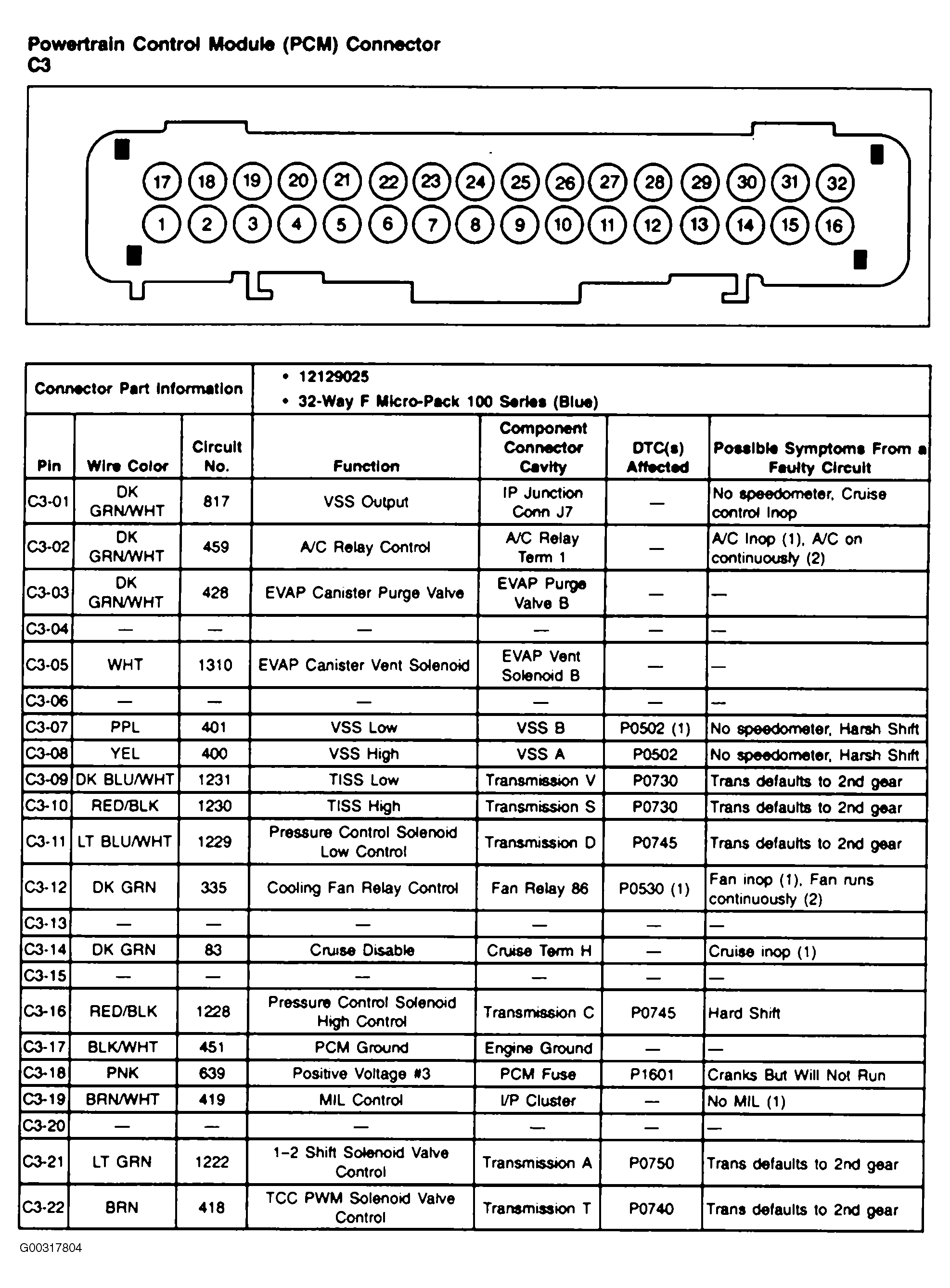

Fig 5: Connector C3 (1 Of 2)

G00317804

Fig 6: Connector C3 (2 Of 2)

G00317805
