Abs/TCS Functional Check
Abs/TCS Functional Check

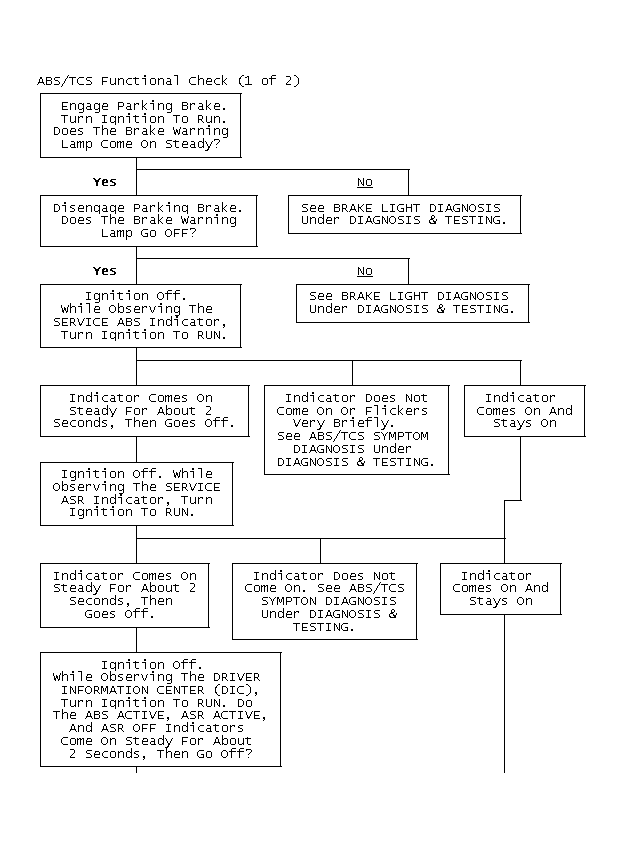

Fig 1: ABS/TCS Functional Check (1 of 2)

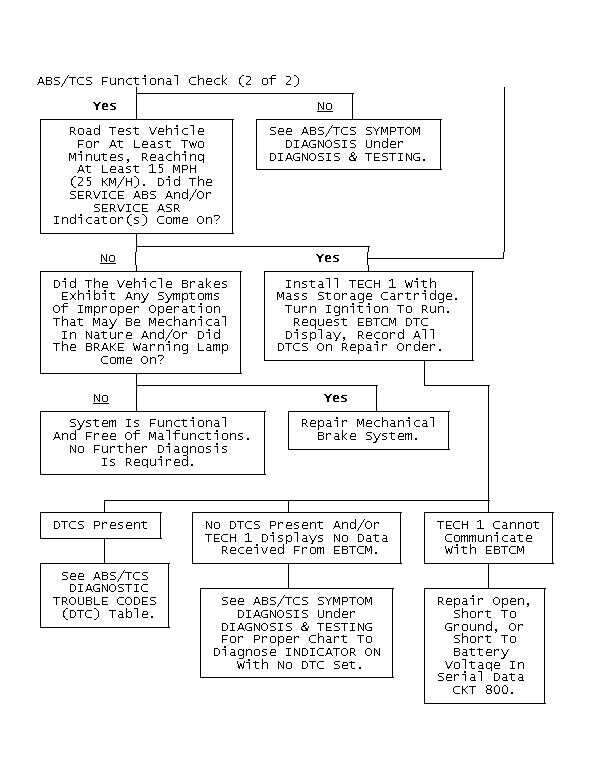

Fig 2: ABS/TCS Functional Check (2 of 2)
