Test 2: Scan Tool Will Not Communicate With Class 2 Serial Data Line

For class 2 serial data line diagnosis, see Fig 1 and Fig 2 .

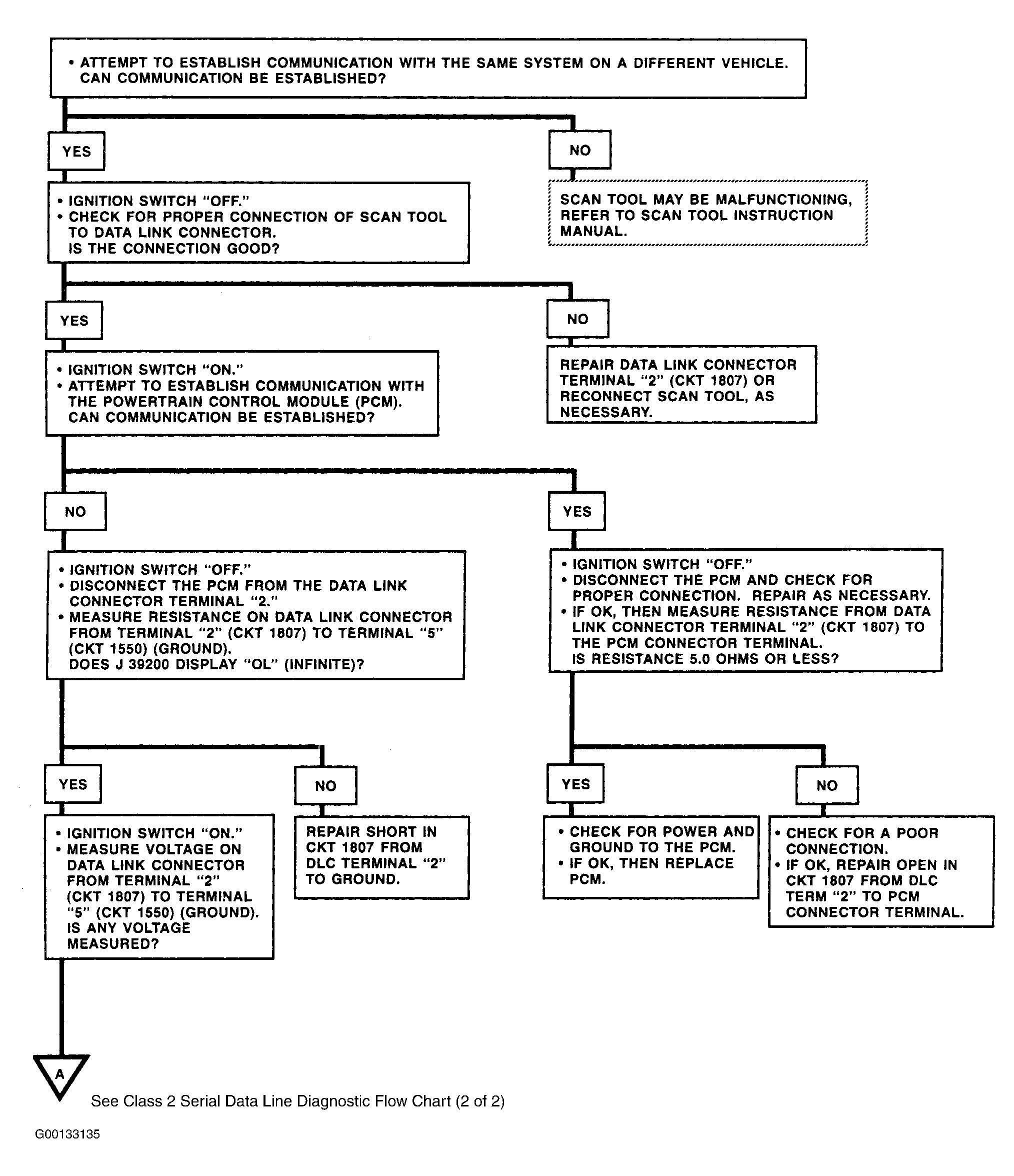

Fig 1: Class 2 Serial Data Line Diagnostic Flowchart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

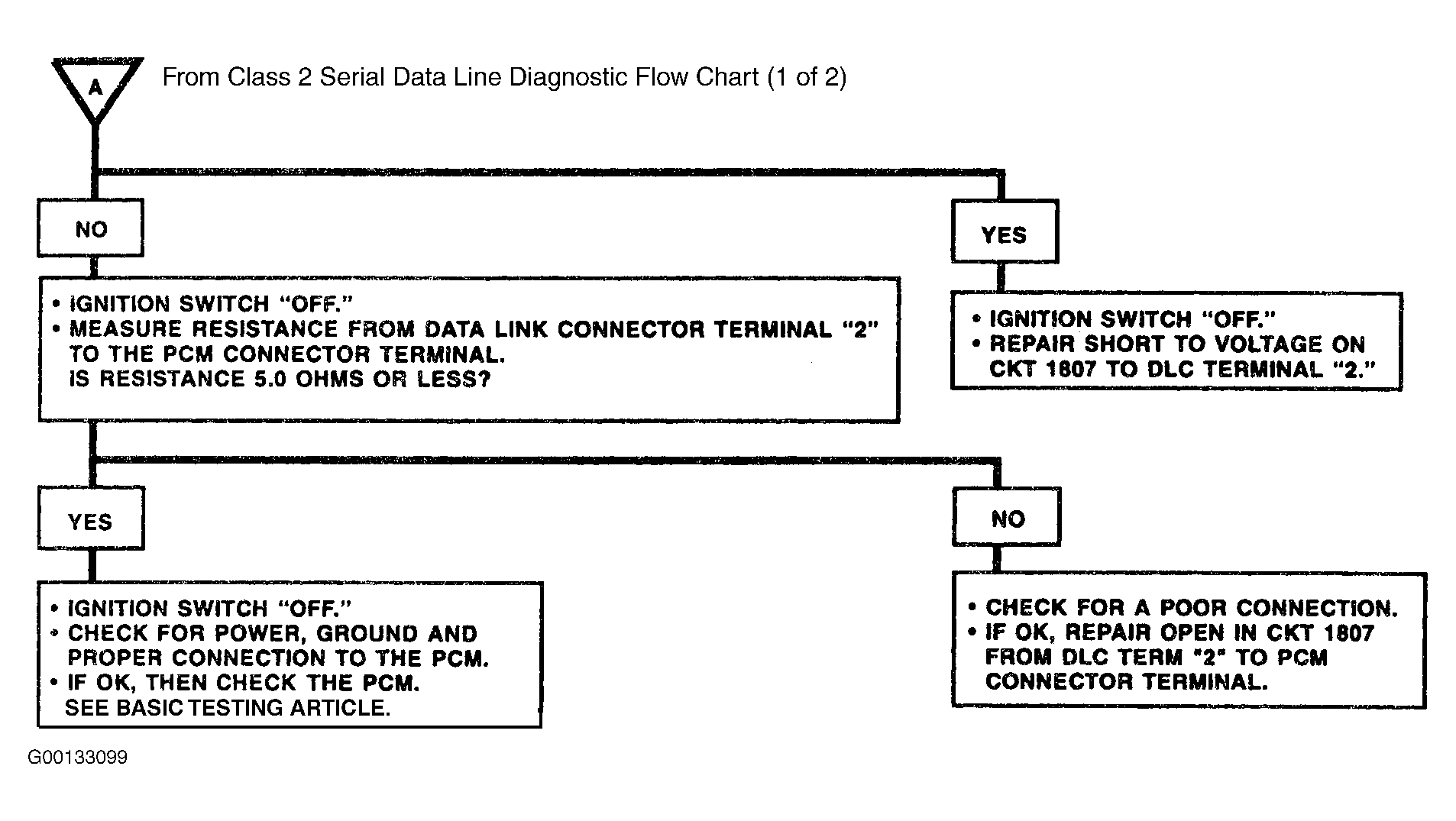

Fig 2: Class 2 Serial Data Line Diagnostic Flowchart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
