Brake Pressure Modulator Valve C2

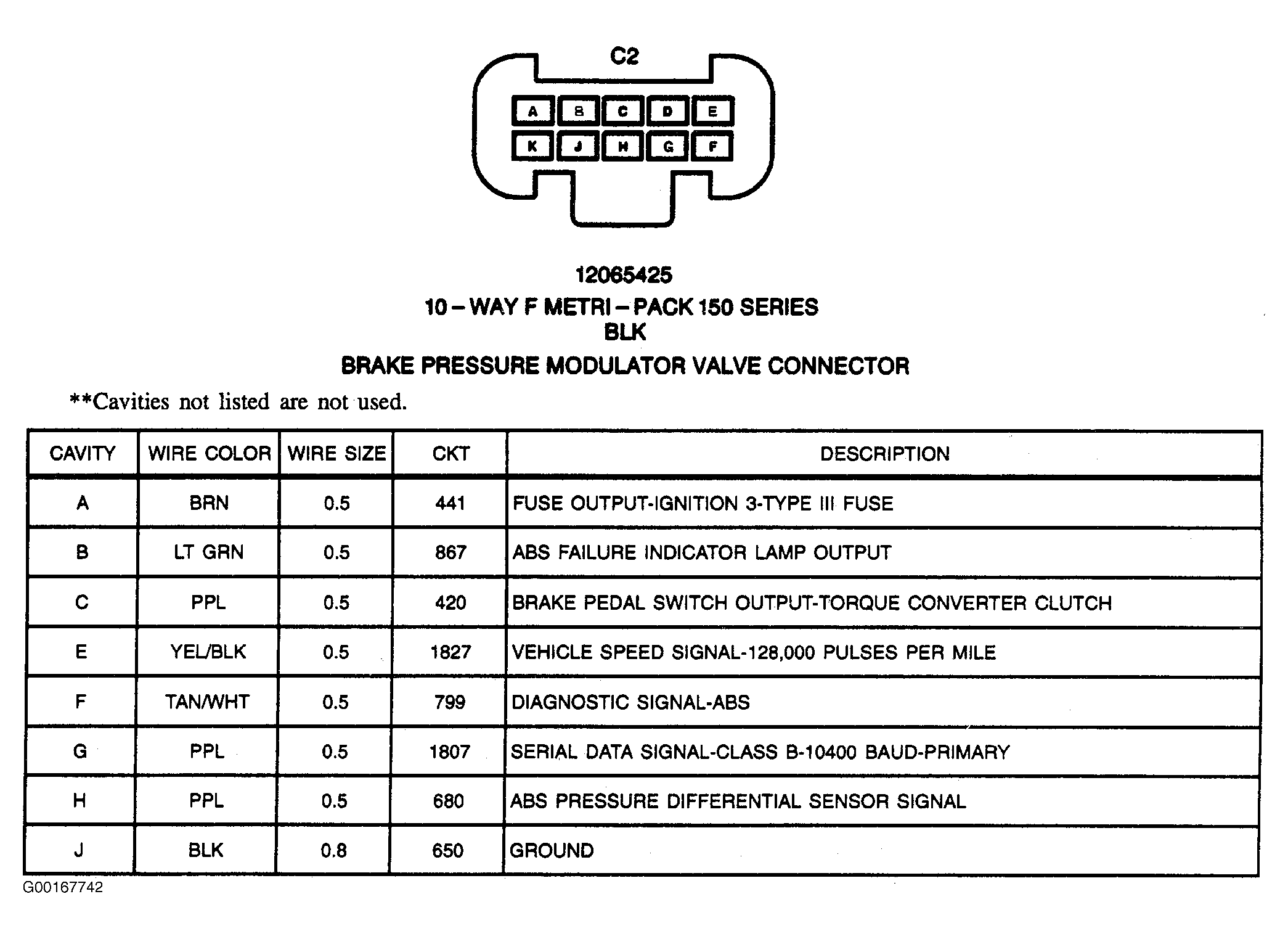

Fig 1: Brake Pressure Modulator Valve C2 - 10-Pin Connector, Black
G00167742Courtesy of GENERAL MOTORS CORP.
