Connectors C100 To C301: C103

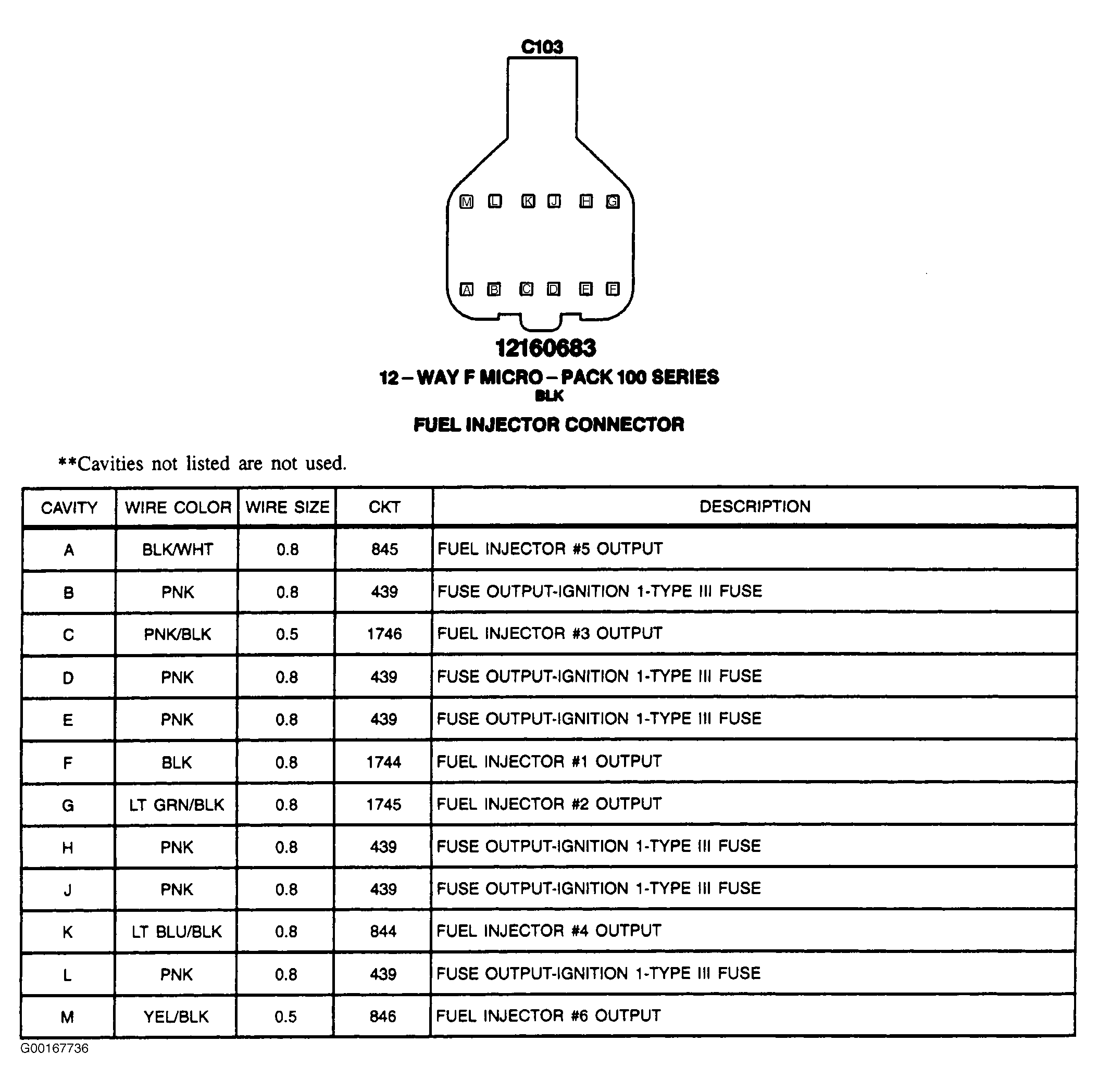

Fig 1: C103 - 12-Pin Connector, Black
G00167736Courtesy of GENERAL MOTORS CORP.
