Connectors C100 To C301: C200

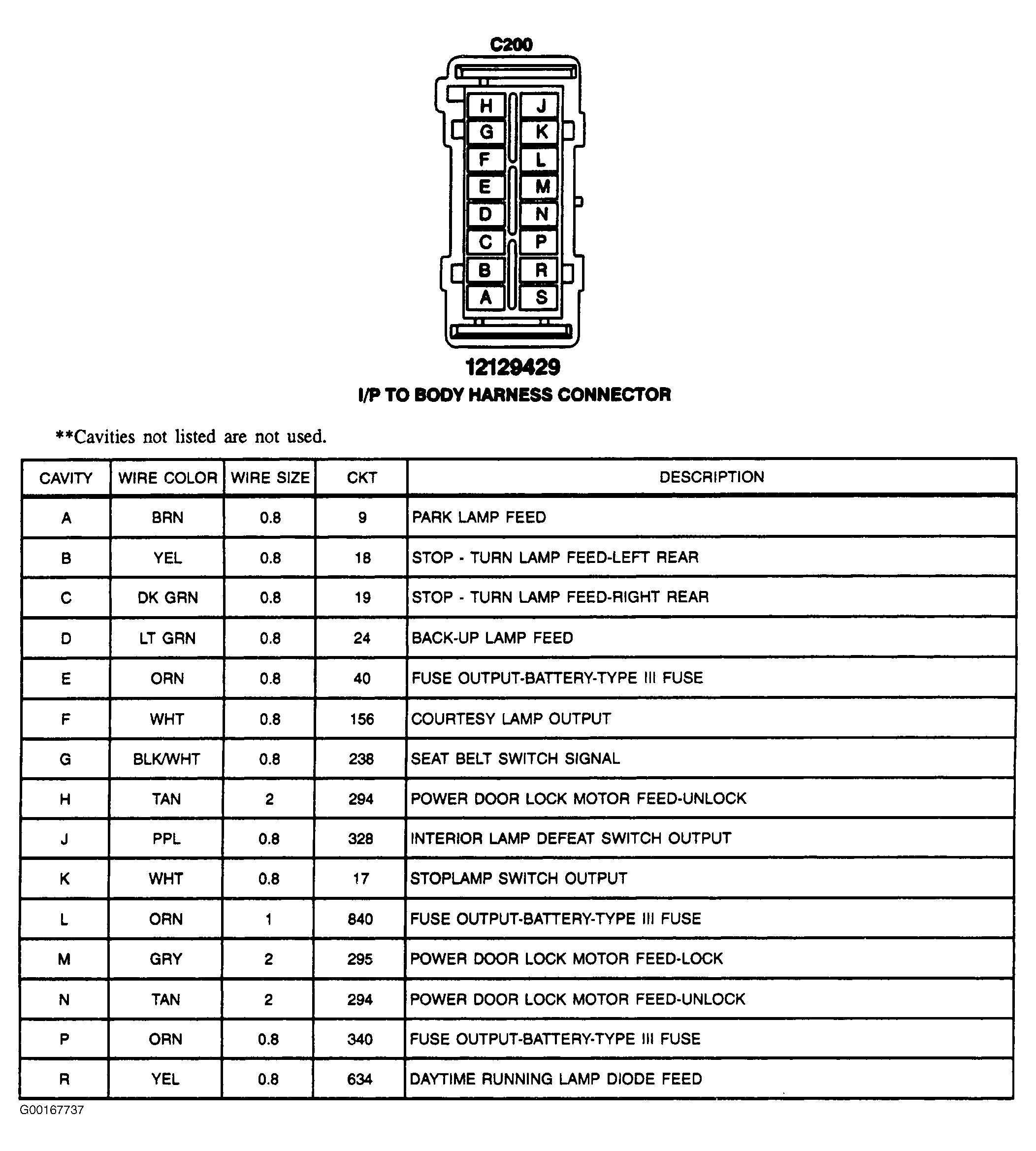

Fig 1: C200 - 16-Pin Connector
G00167737Courtesy of GENERAL MOTORS CORP.
