Connectors C100 To C301: C201

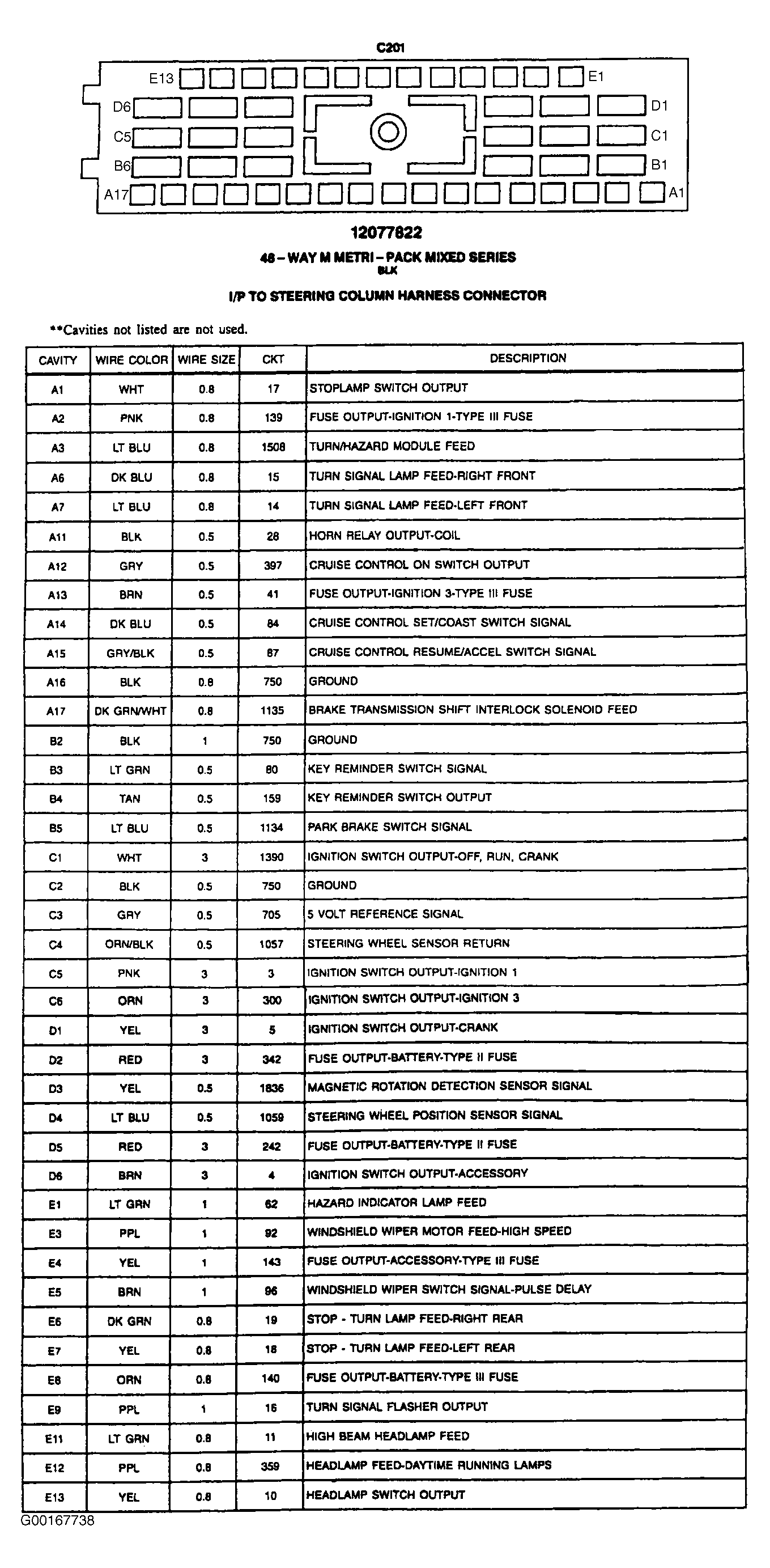

Fig 1: C201 - 48-Pin Connector, Black
G00167738Courtesy of GENERAL MOTORS CORP.
