Connectors C100 To C301: C205

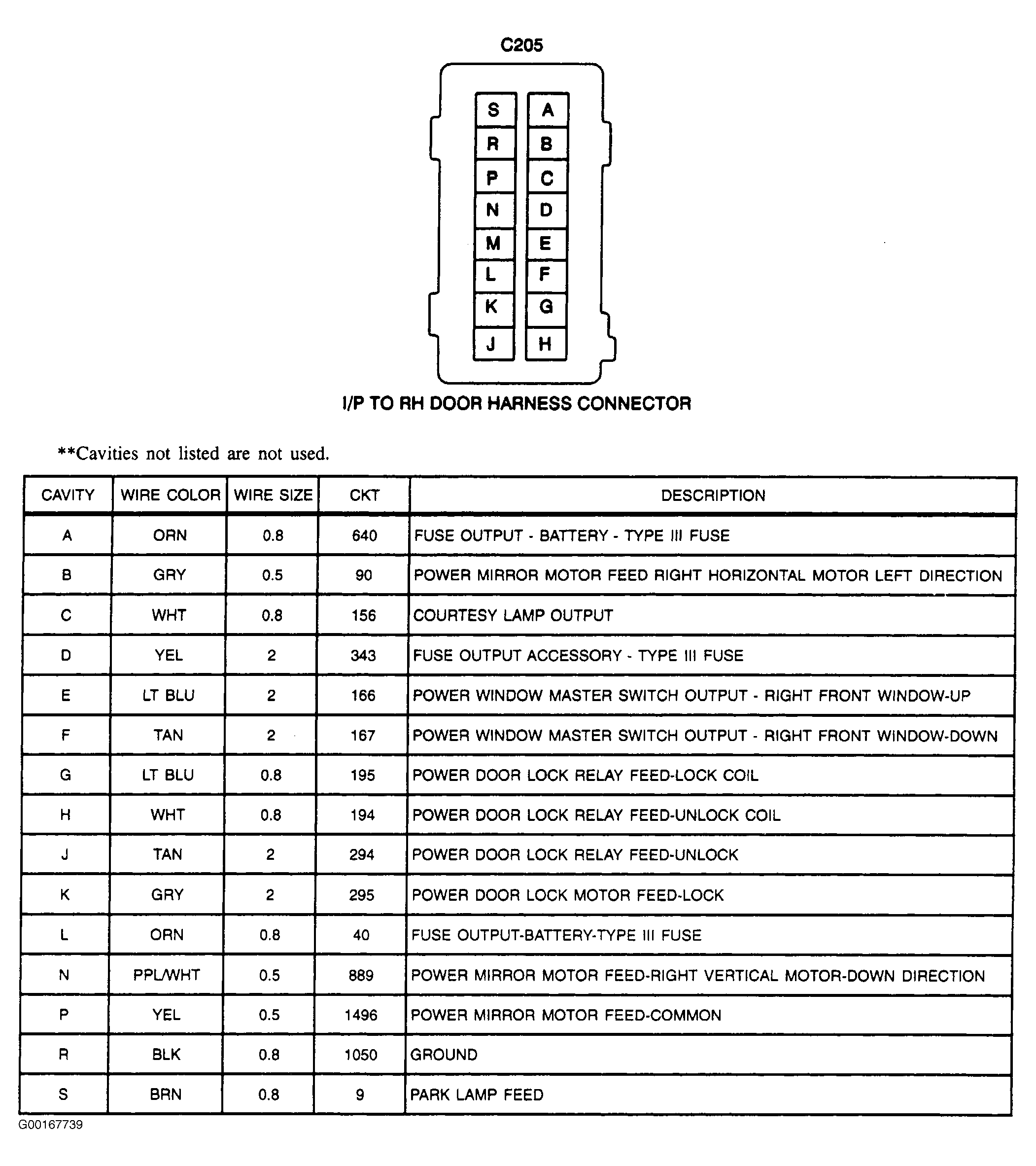

Fig 1: C205 - 16-Pin Connector
G00167739Courtesy of GENERAL MOTORS CORP.
