Connectors C100 To C301: C301

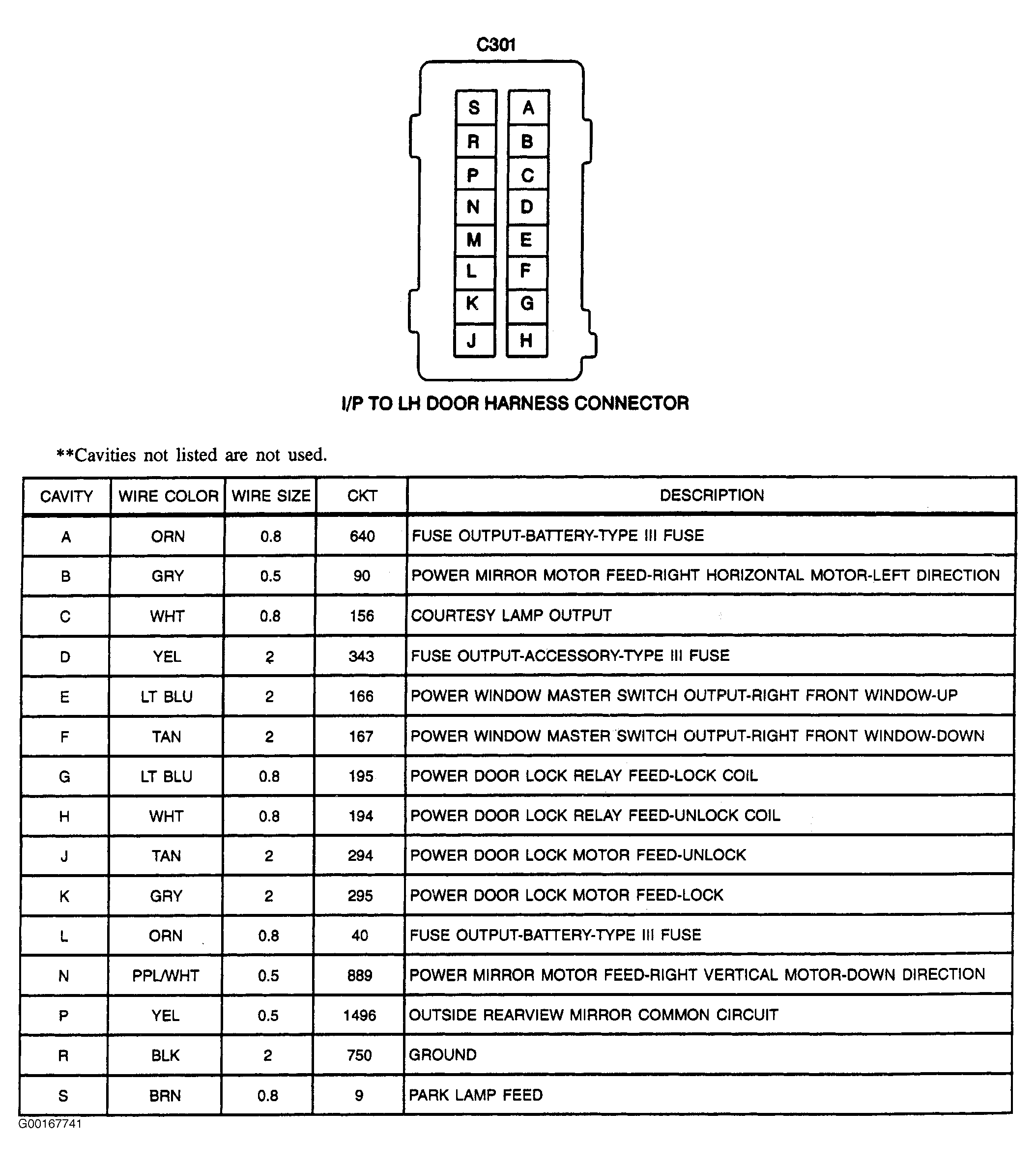

Fig 1: C301 - 16-Pin Connector
G00167741Courtesy of GENERAL MOTORS CORP.
