Connector Terminal Identification
›
Fuel/Sender Gauge Module
Fuel/Sender Gauge Module

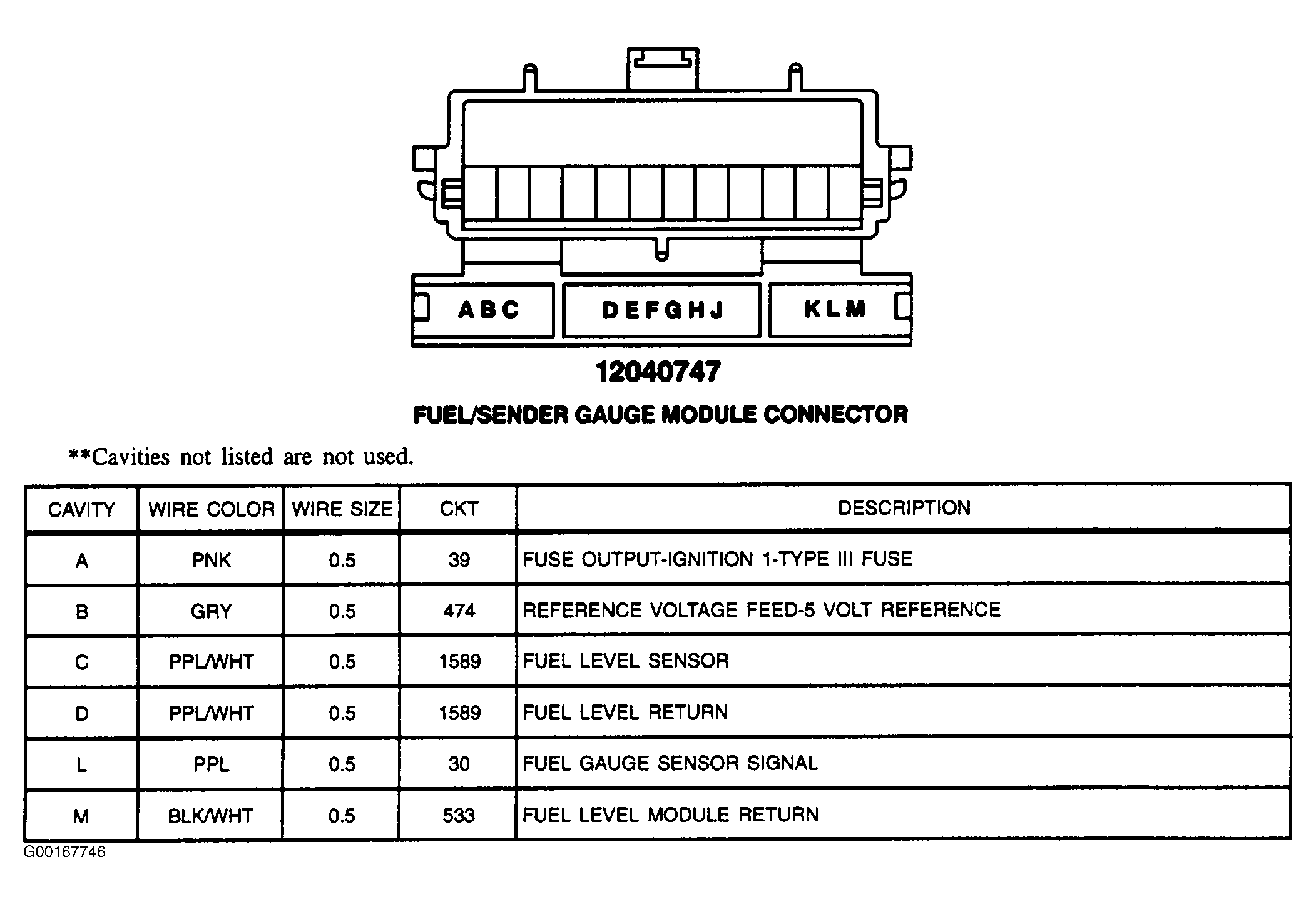

Fig 1: Fuel/Sender Gauge Module - 12-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
