Connector Terminal Identification: Generator

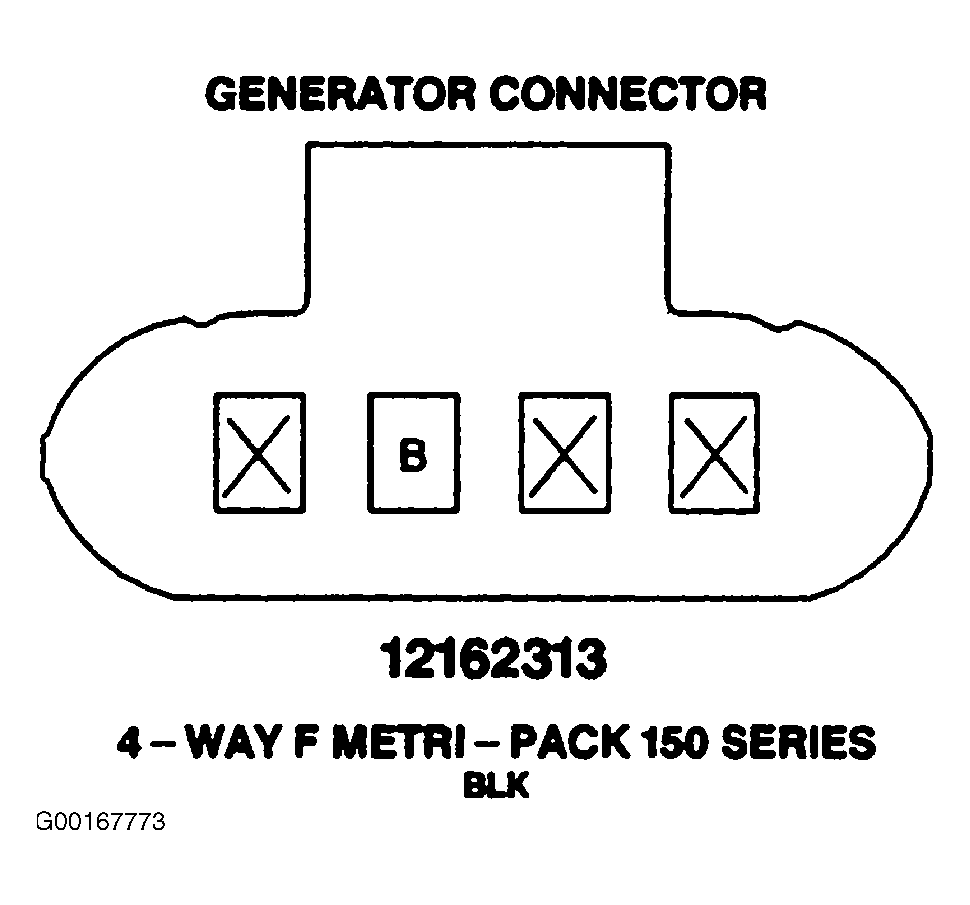

Fig 1: Generator - 4-Pin Connector, Black
G00167773Courtesy of GENERAL MOTORS CORP.
