Connector Terminal Identification
›
RH Front Power Window Switch
RH Front Power Window Switch

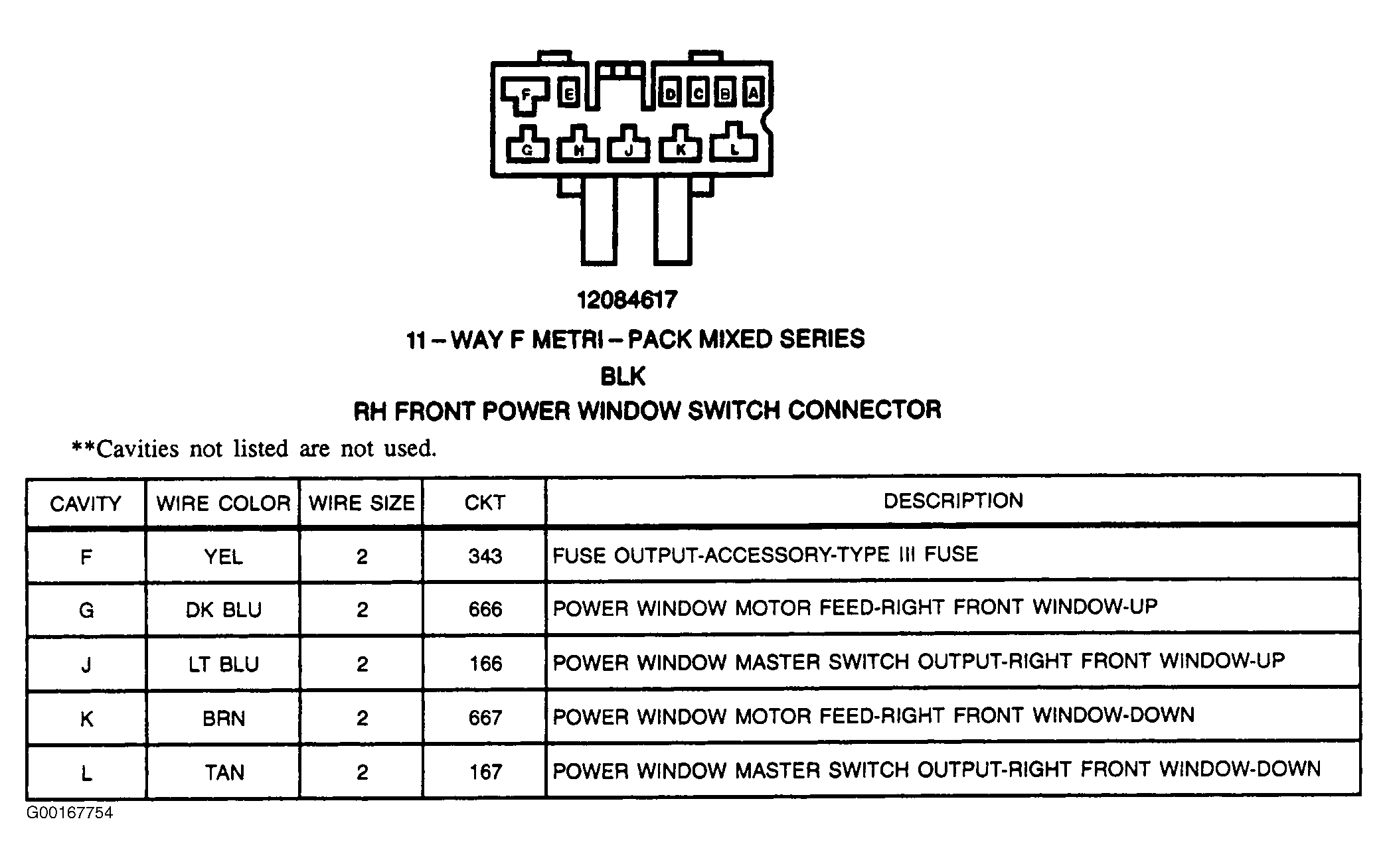

Fig 1: RH Front Power Window Switch - 11-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
