Rear Radio Control Module
Rear Radio Control Module

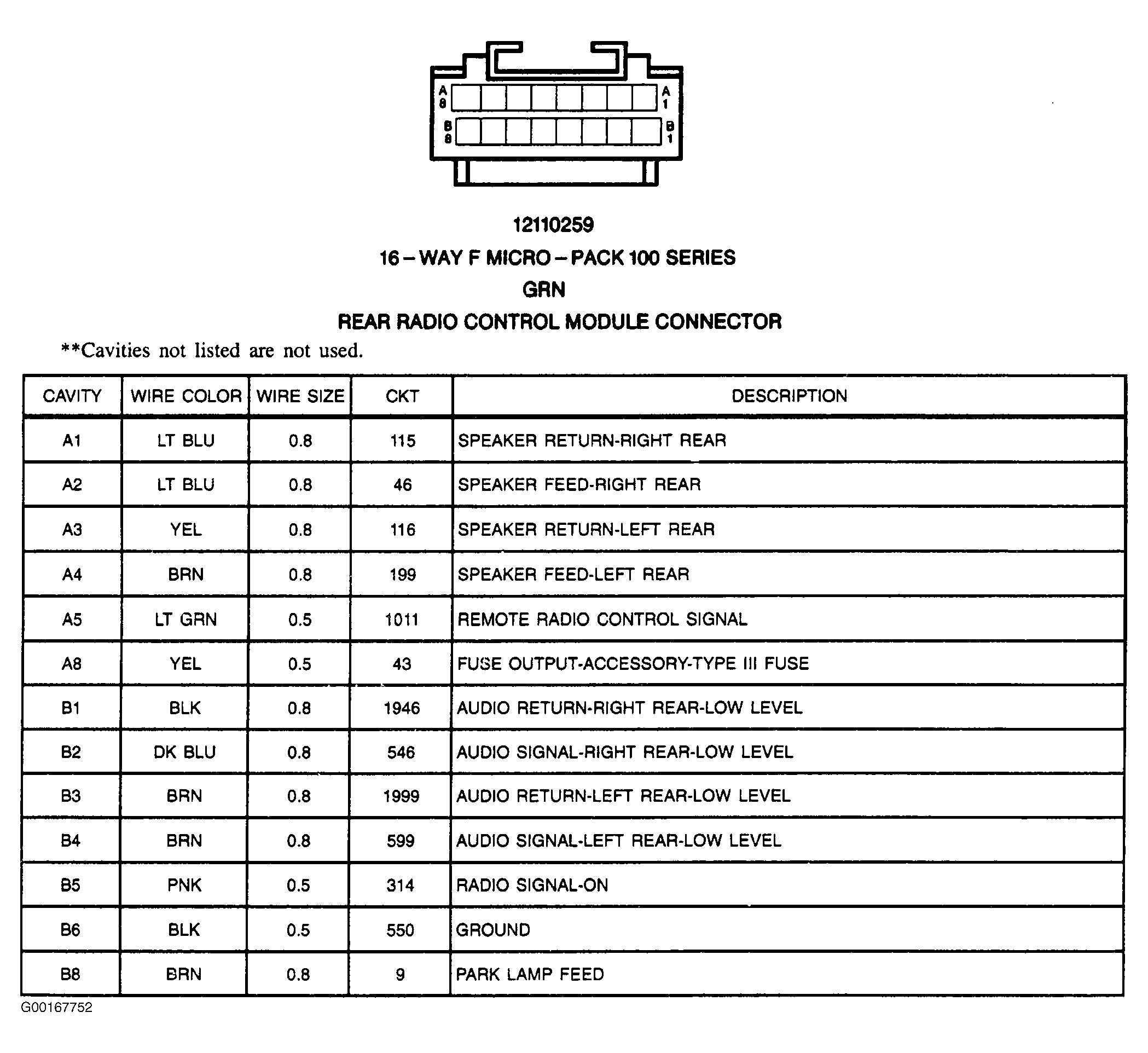

Fig 1: Rear Radio Control Module - 16-Pin Connector, Green
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
