Connector Terminal Identification
›
Remote Control Door Lock Receiver
Remote Control Door Lock Receiver

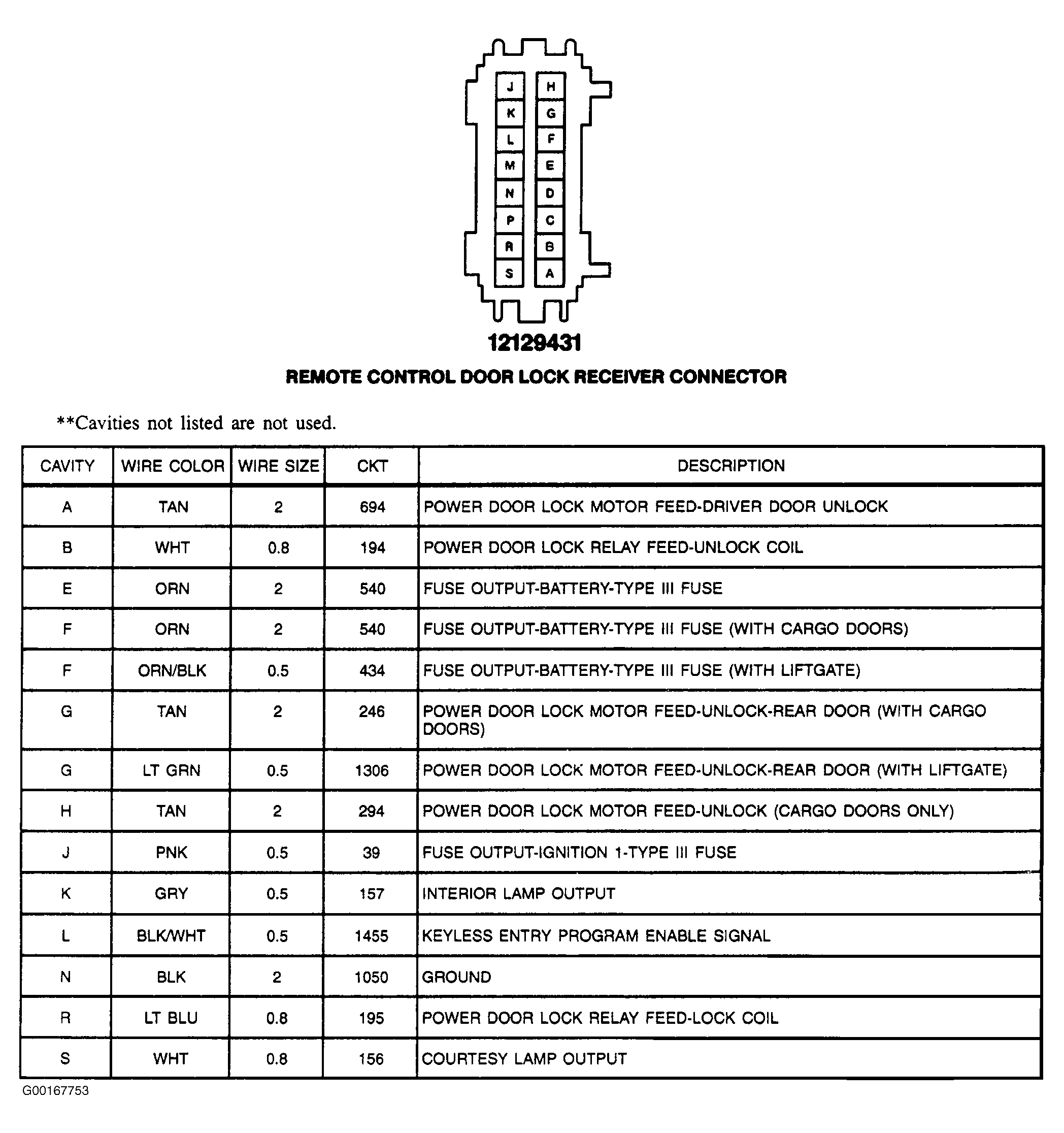

Fig 1: Remote Control Door Lock Receiver - 16-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
