Connector Terminal Identification
›
Sub-Woofer Amplifier
Sub-Woofer Amplifier

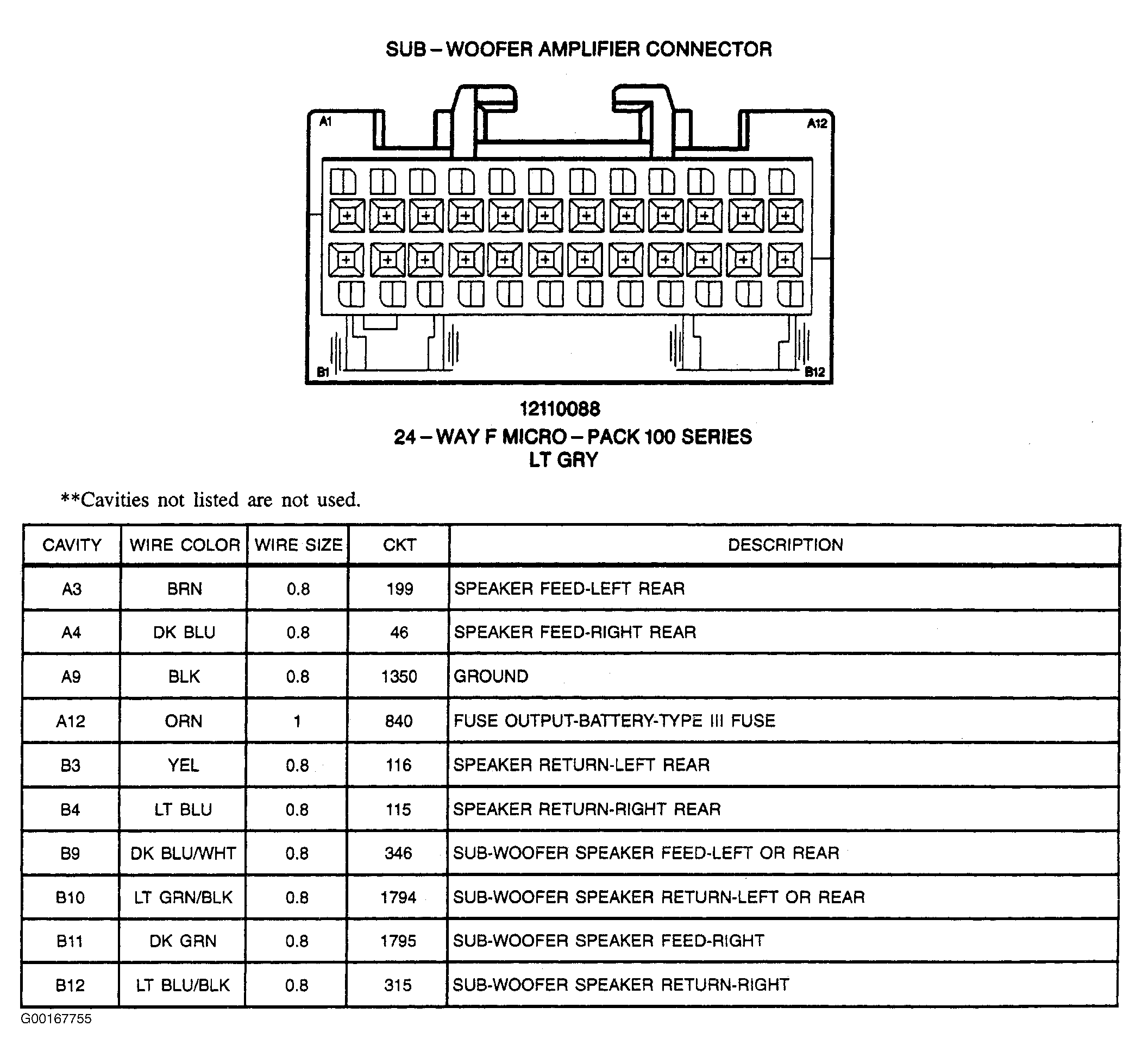

Fig 1: Sub-Woofer Amplifier - 24-Pin Connector, Light Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
