Connector Terminal Identification
›
Radio Connectors
›
Radio C2
Radio C2

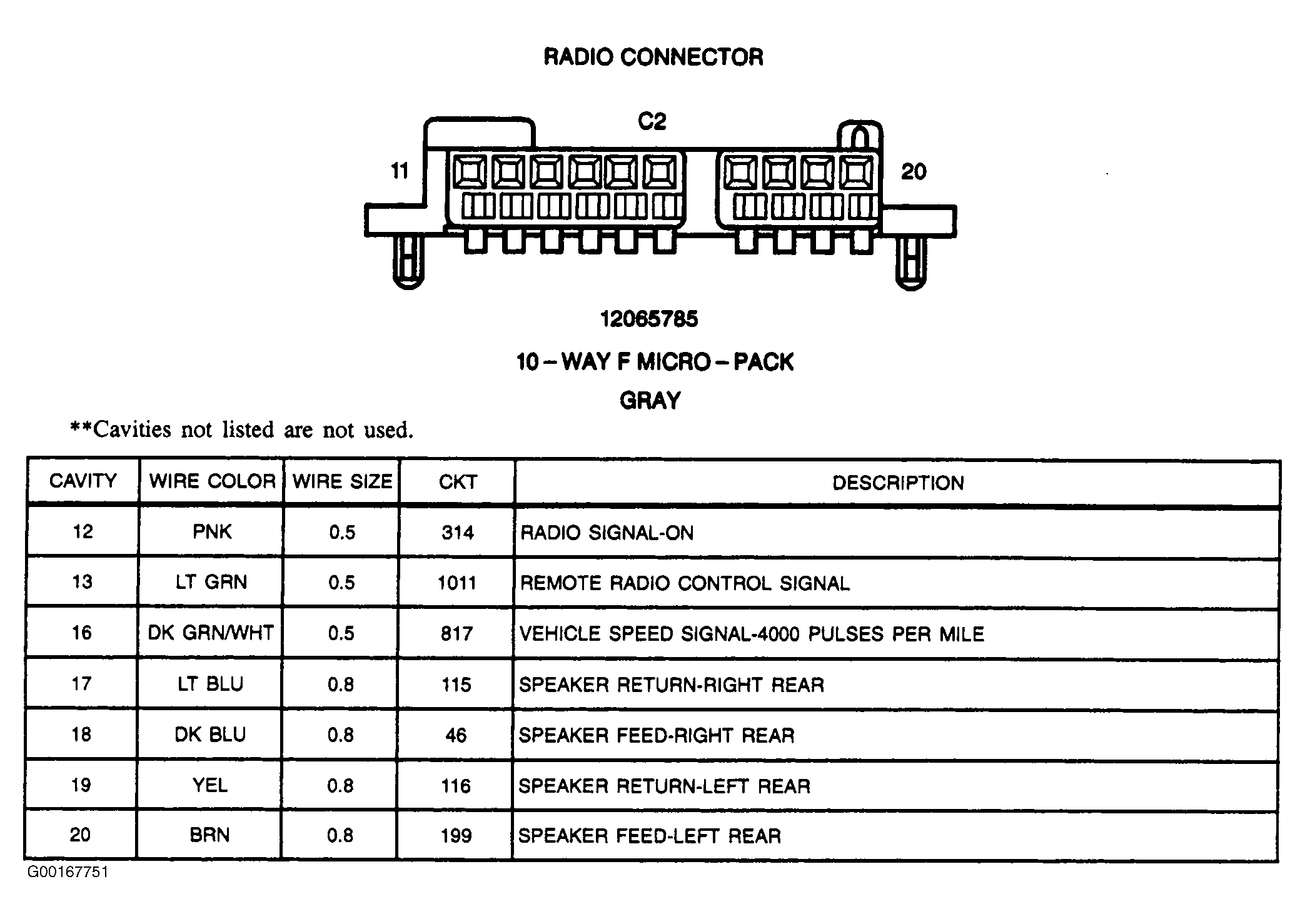

Fig 1: Radio C2 - 10-Pin Connector, Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
