DTC P0370 - Timing Reference High Resolution: Notes

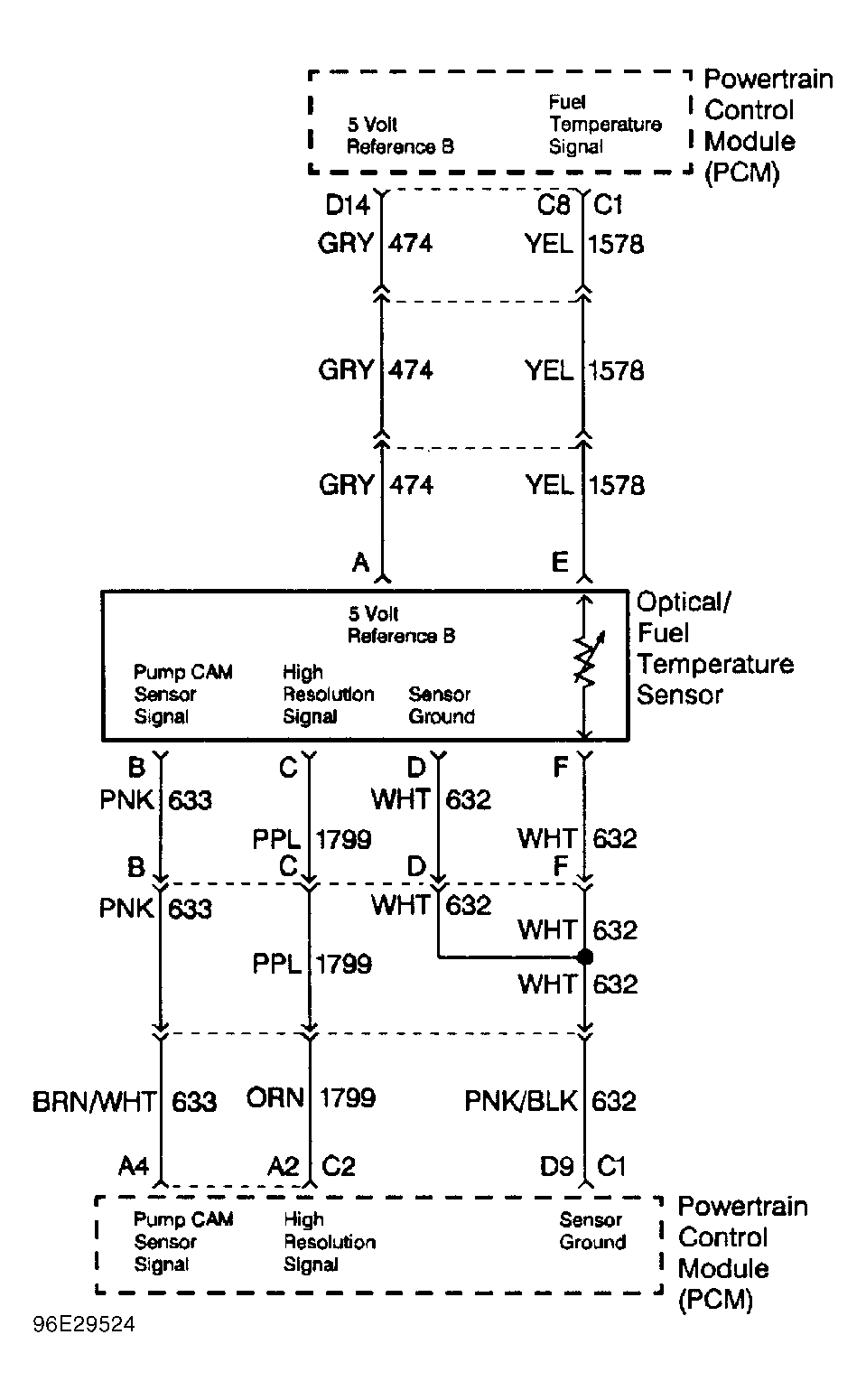

NOTE: For circuit reference, see Figure . For connector and terminal identification, see CONNECTOR IDENTIFICATION  .
