C100 To C405: C200

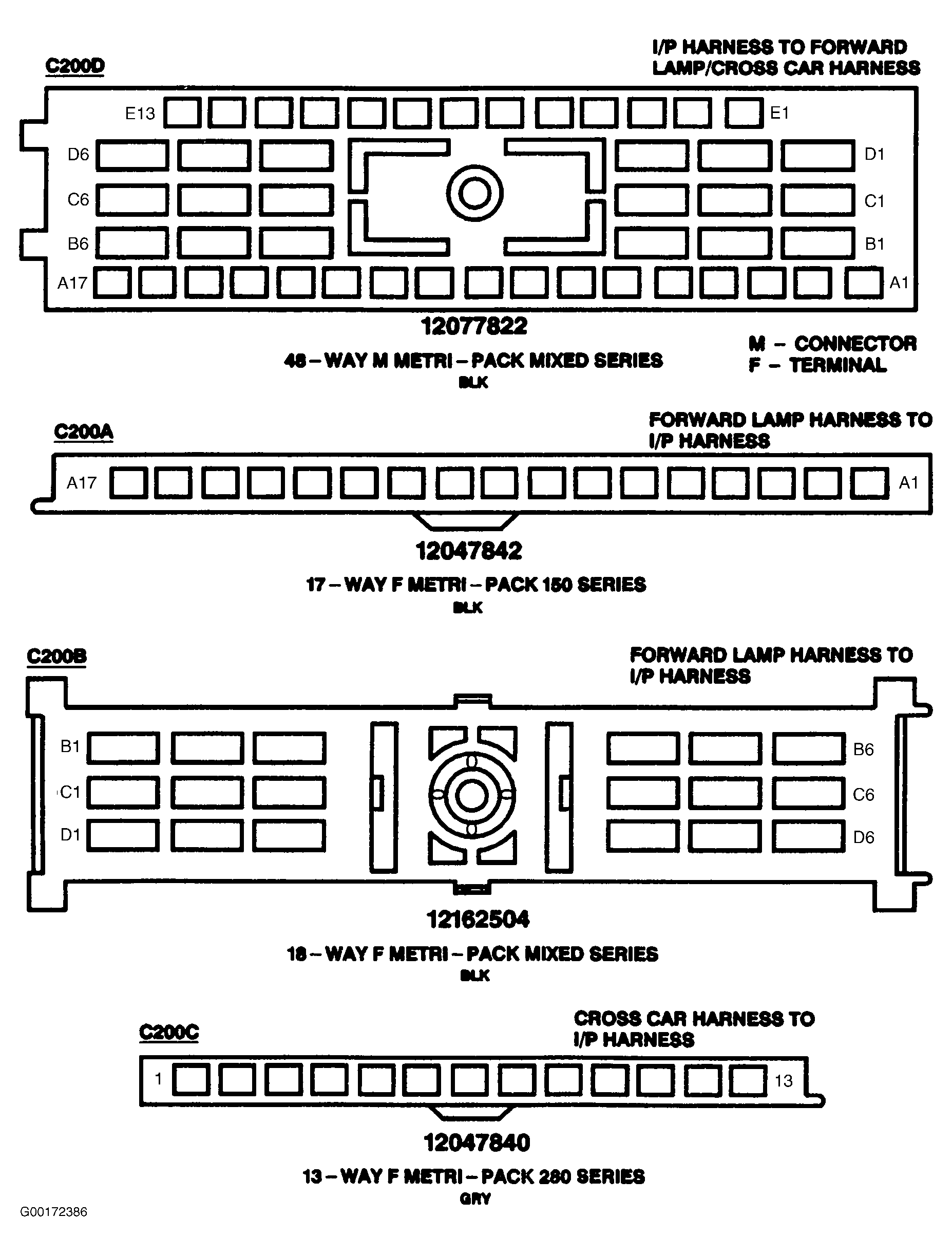

Fig 1: C200 - 48-Pin (17-Pin/18-Pin/13-Pin) Connector (Black/Gray) - (1 Of 3)
G00172386Courtesy of GENERAL MOTORS CORP.

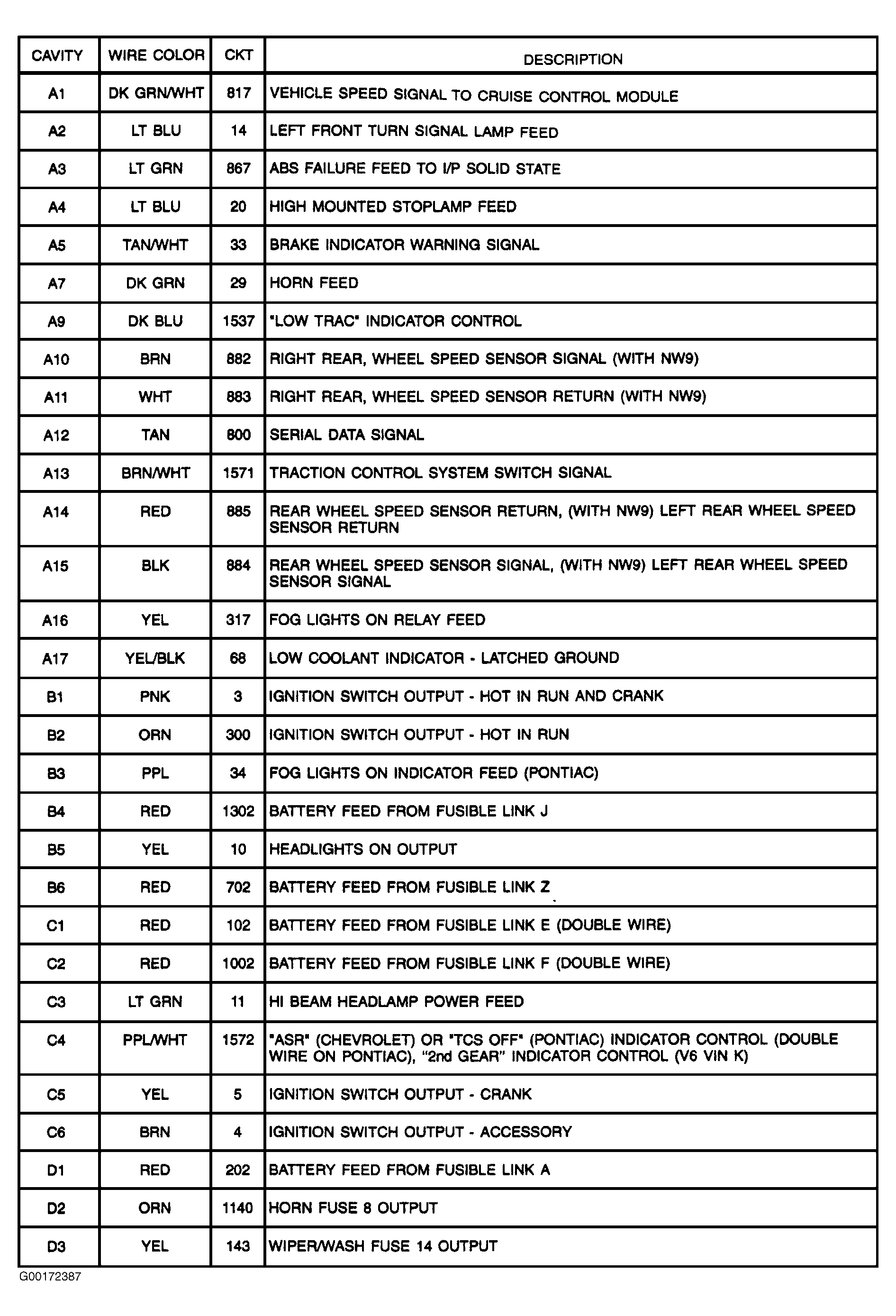

Fig 2: C200 - 48-Pin (17-Pin/18-Pin/13-Pin) Connector (Black/Gray) - (2 Of 3)
G00172387Courtesy of GENERAL MOTORS CORP.

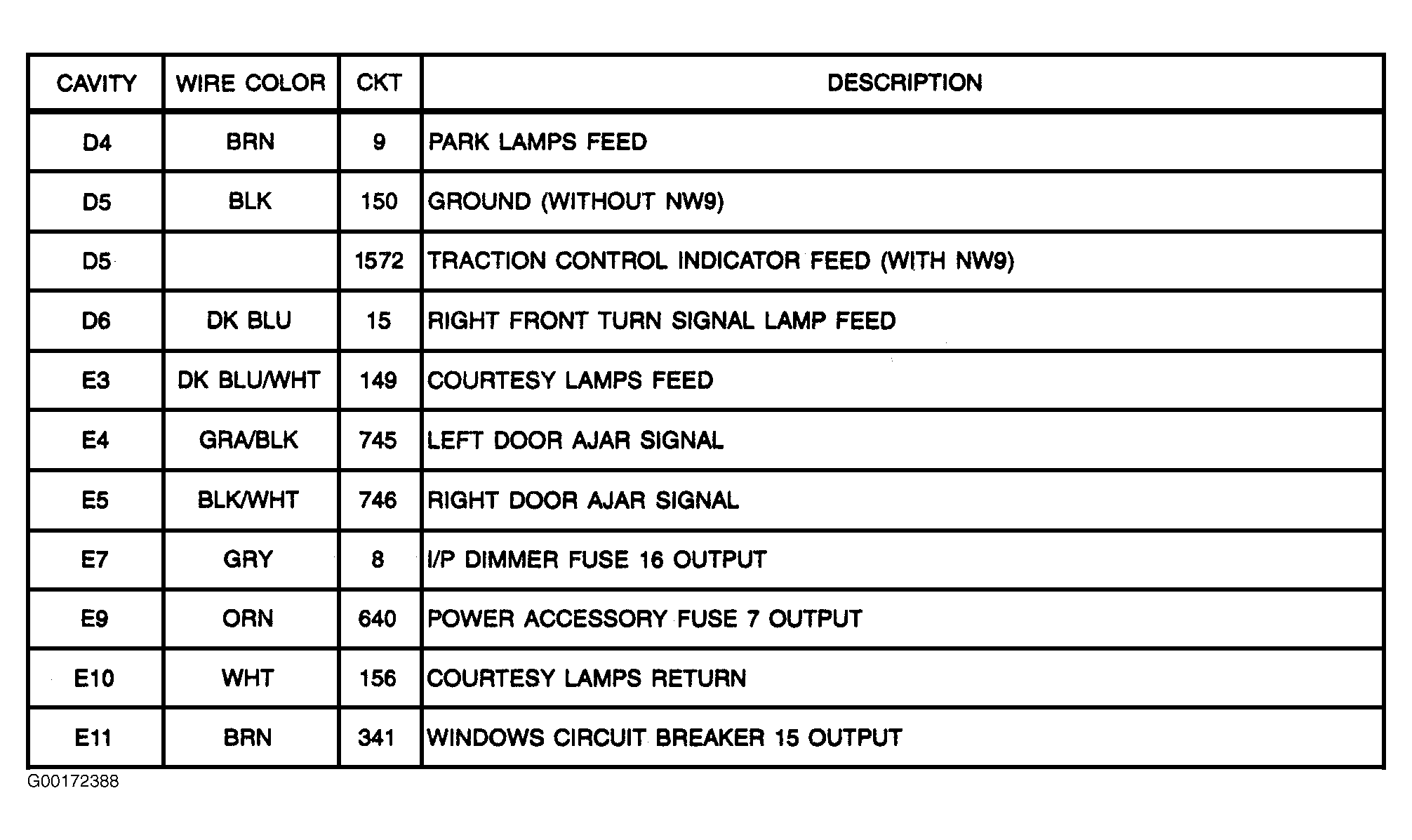

Fig 3: C200 - 48-Pin (17-Pin/18-Pin/13-Pin) Connector (Black/Gray) - (3 Of 3)
G00172388Courtesy of GENERAL MOTORS CORP.
