Engine Control System - Tests W/Codes - 5.7L
›
Connector Identification
›
Pcm Connectors (Vehicles Without Traction Control)
›
PCM Connector C4
PCM Connector C4

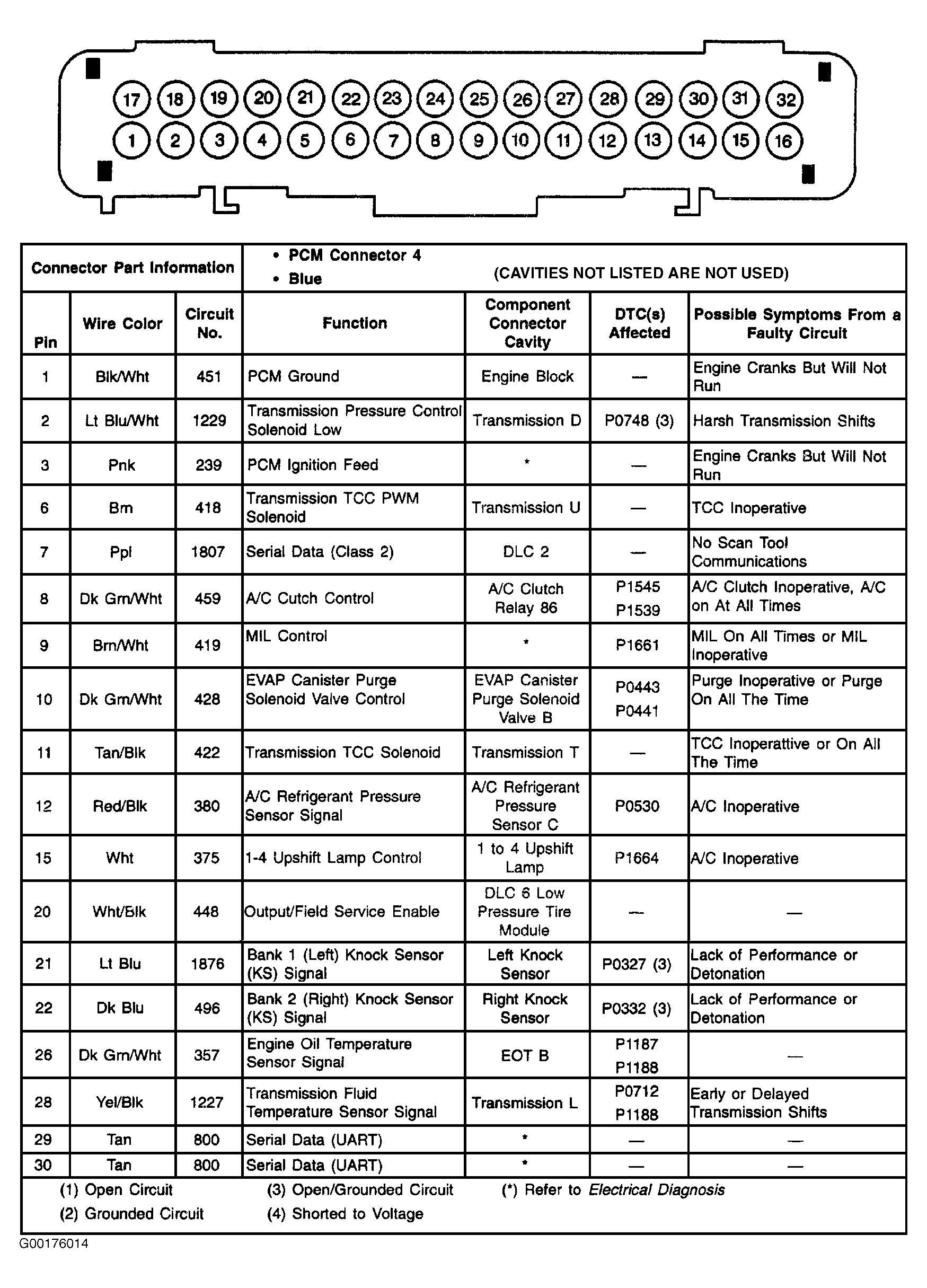

Fig 1: PCM C4 32-Pin Connector (Blue) - Terminal Identification & Legend
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
