C100 To C313: C100

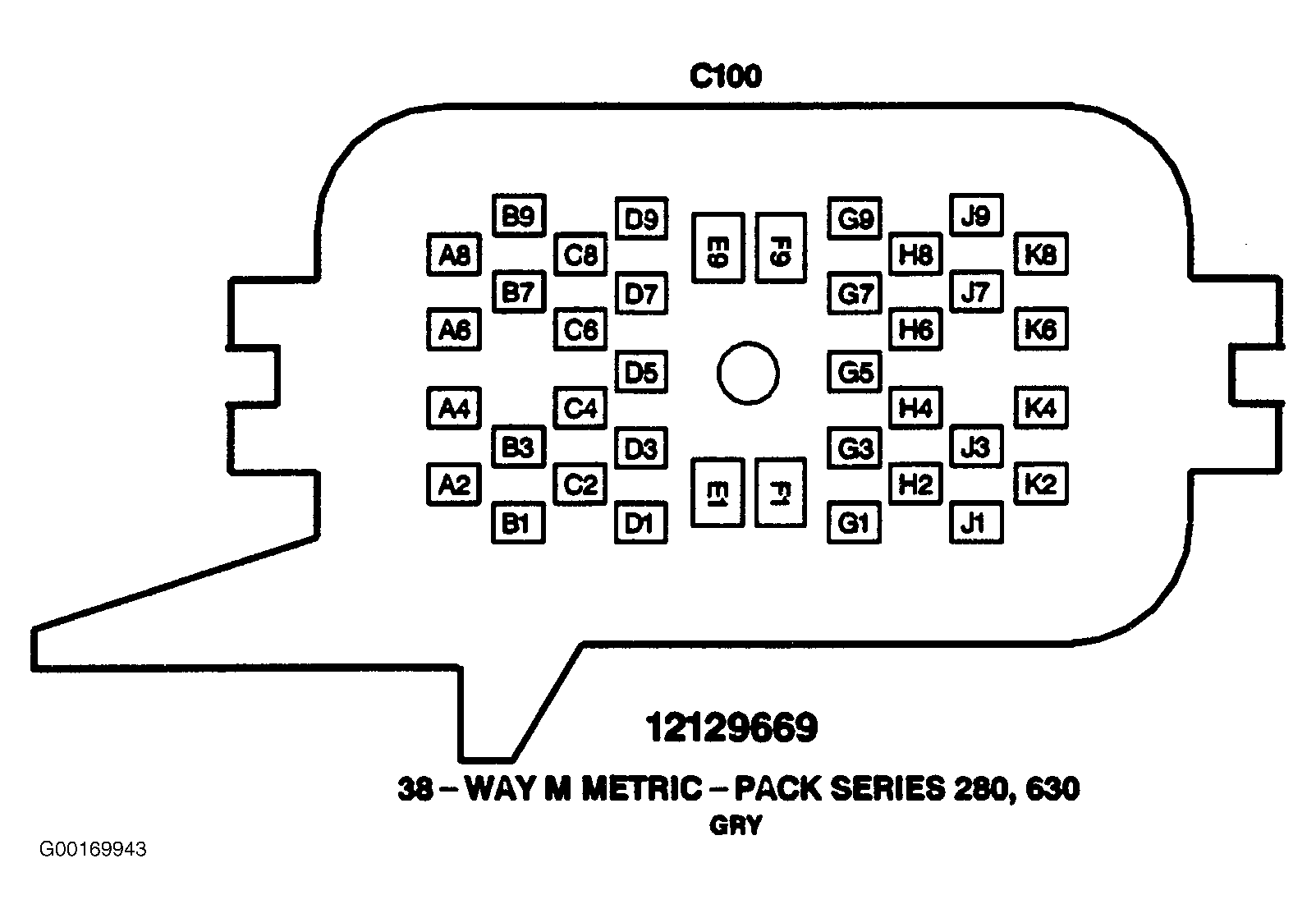

Fig 1: C100 - 38-Pin Connector (Gray) - (1 Of 2)
G00169943Courtesy of GENERAL MOTORS CORP.
Fig 2: C100 - 38-Pin Connector (Gray) - (2 Of 2)
G00169944Courtesy of GENERAL MOTORS CORP.
