Home › Chevrolet › 1997 › Cavalier RS, Standard › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C313 › C275

C100 To C313: C275

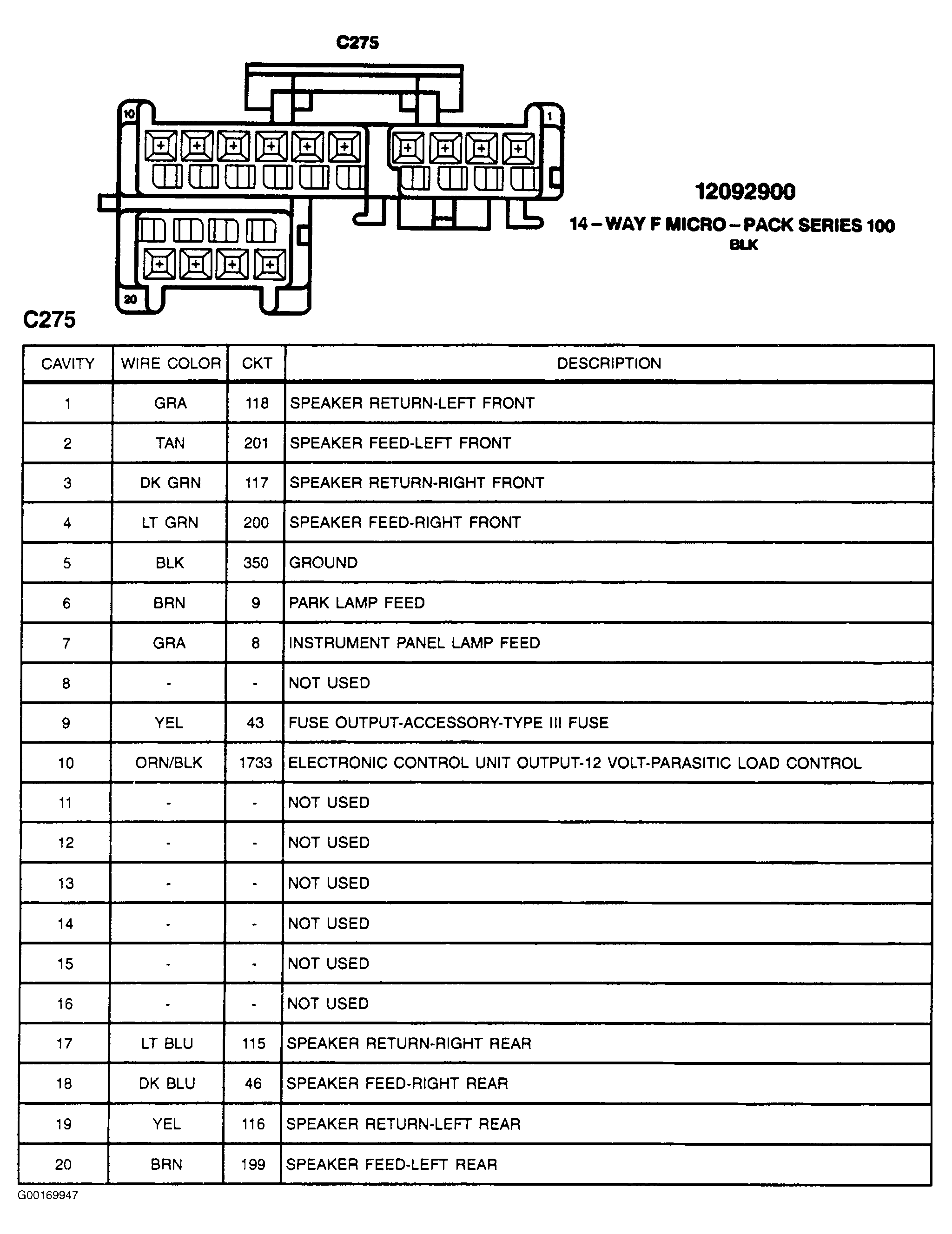

Fig 1: C275 - 14-Pin Connector (Black)
G00169947Courtesy of GENERAL MOTORS CORP.
