Automatic Transaxle

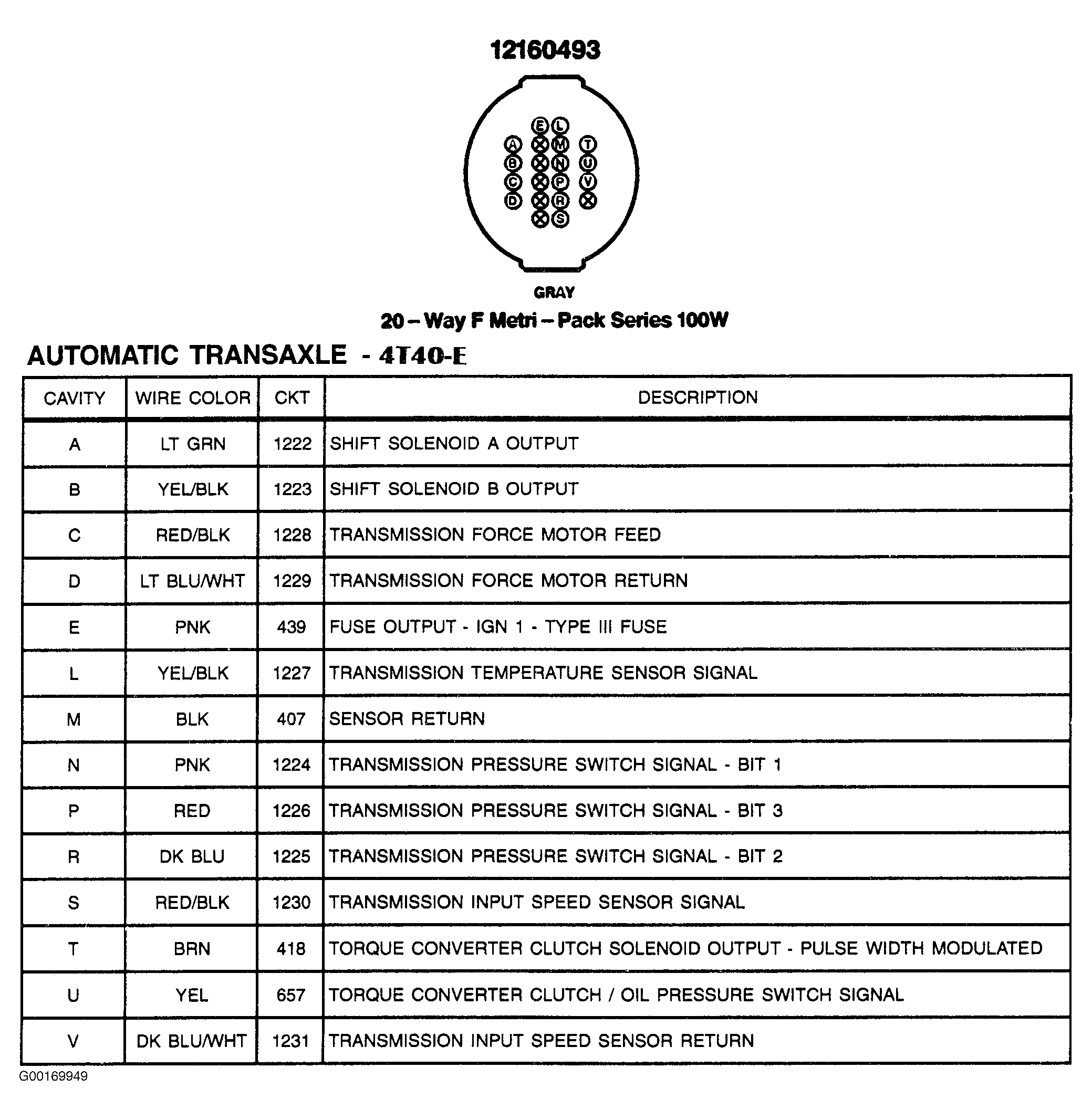

Fig 1: Automatic Transaxle - 20-Pin Connector (Gray)
G00169949Courtesy of GENERAL MOTORS CORP.
