C100 To C313: C313

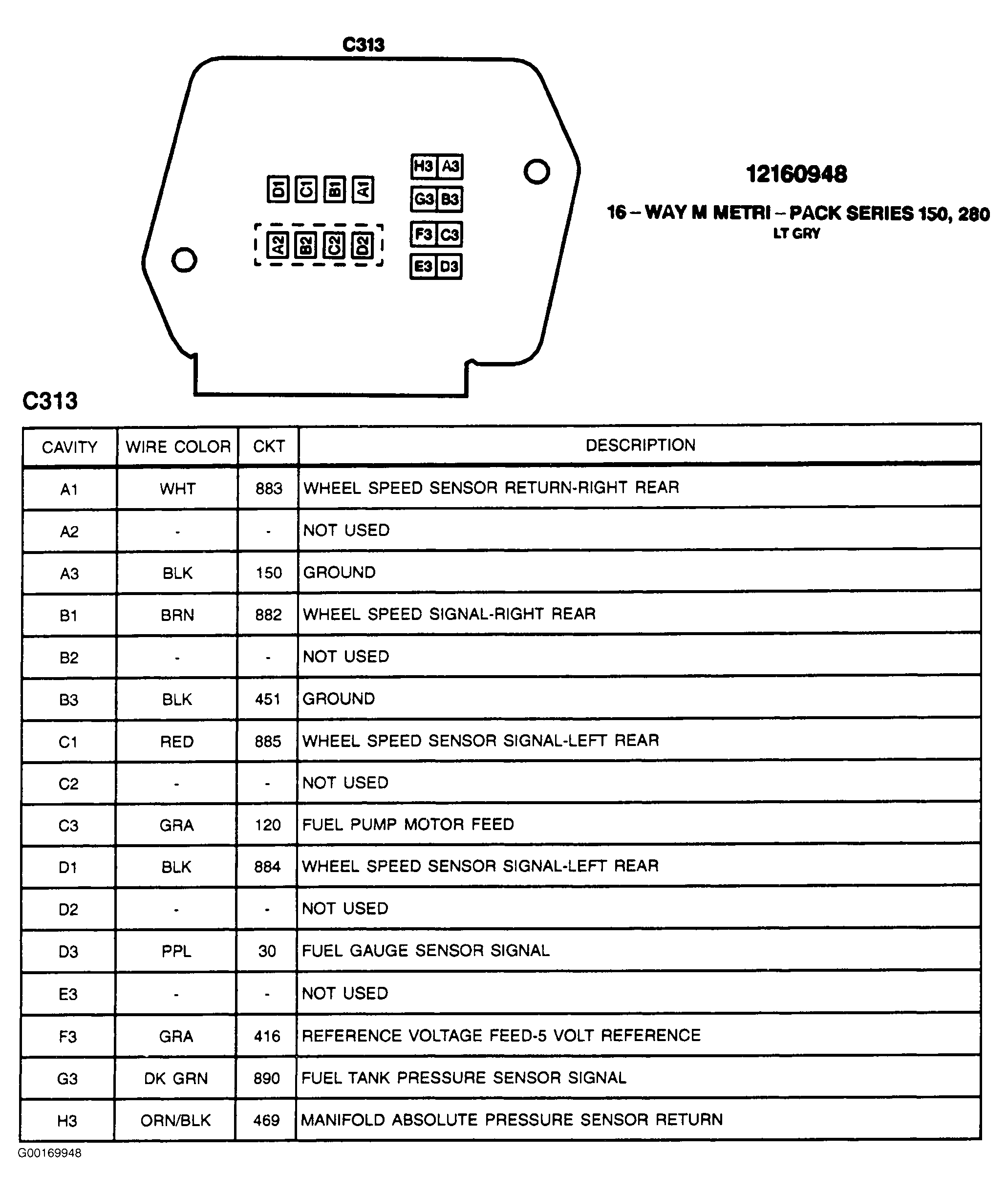

Fig 1: C313 - 16-Pin Connector (Light Gray)
G00169948Courtesy of GENERAL MOTORS CORP.
