Connector Terminal Identification
›
Data Link
Data Link

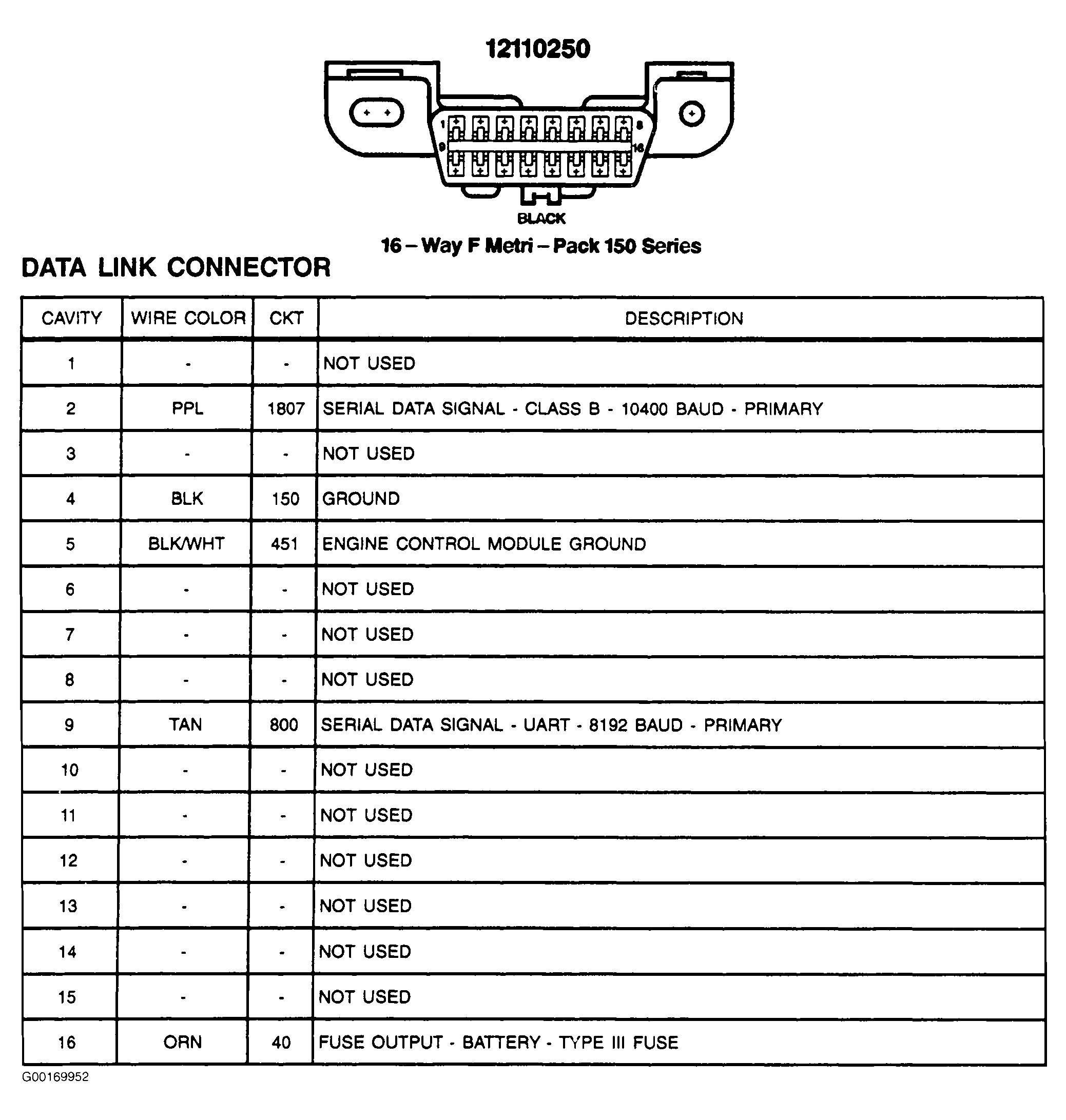

Fig 1: Data Link - 16-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
