Connector Terminal Identification (G Series)
›
A/C Compressor High Pressure Cutoff Switch
A/C Compressor High Pressure Cutoff Switch

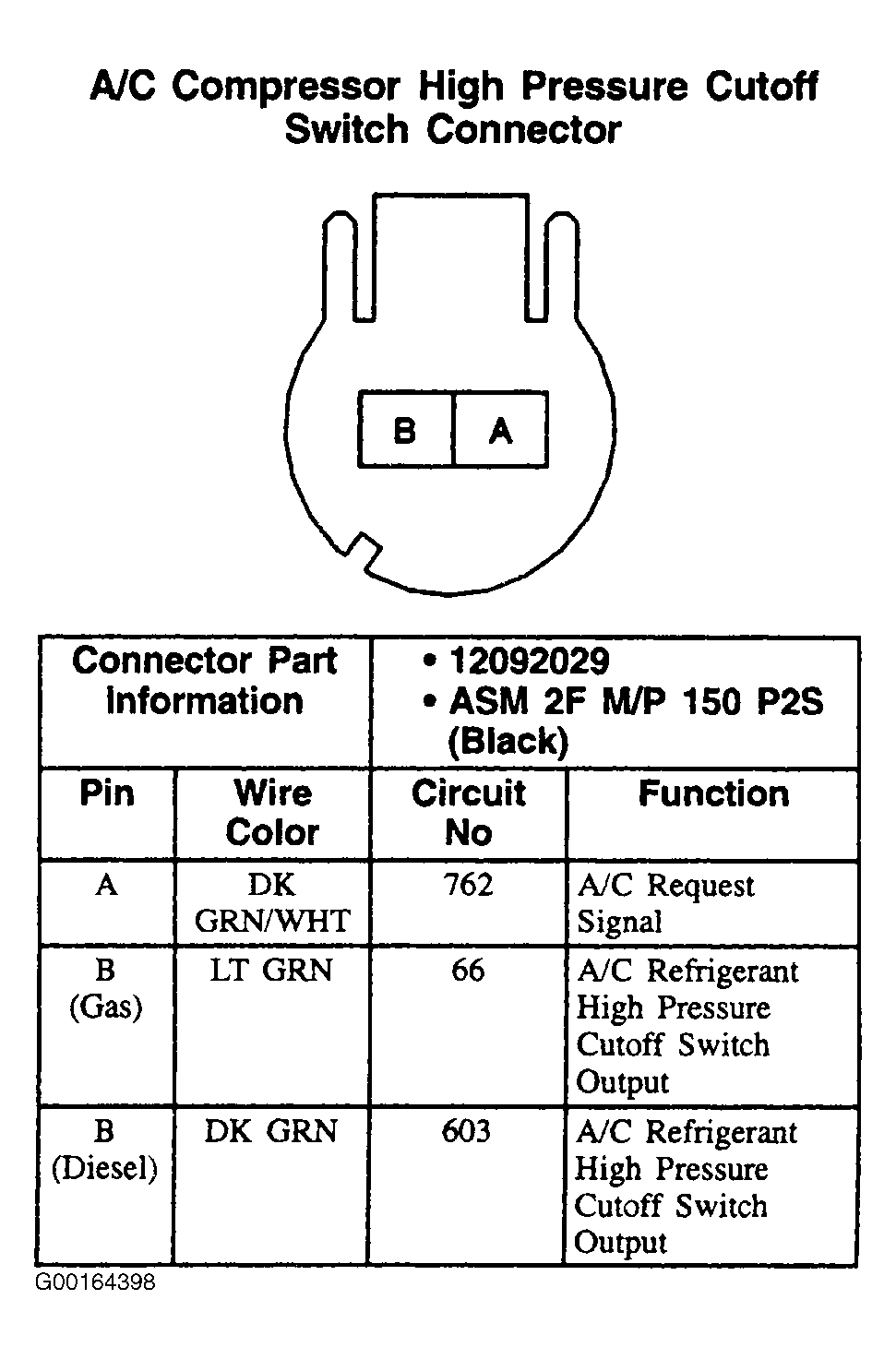

Fig 1: A/C Compressor High Pressure Cutoff Switch - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
