Connector Terminal Identification (G Series)
›
Brake Pressure Differential Switch
Brake Pressure Differential Switch

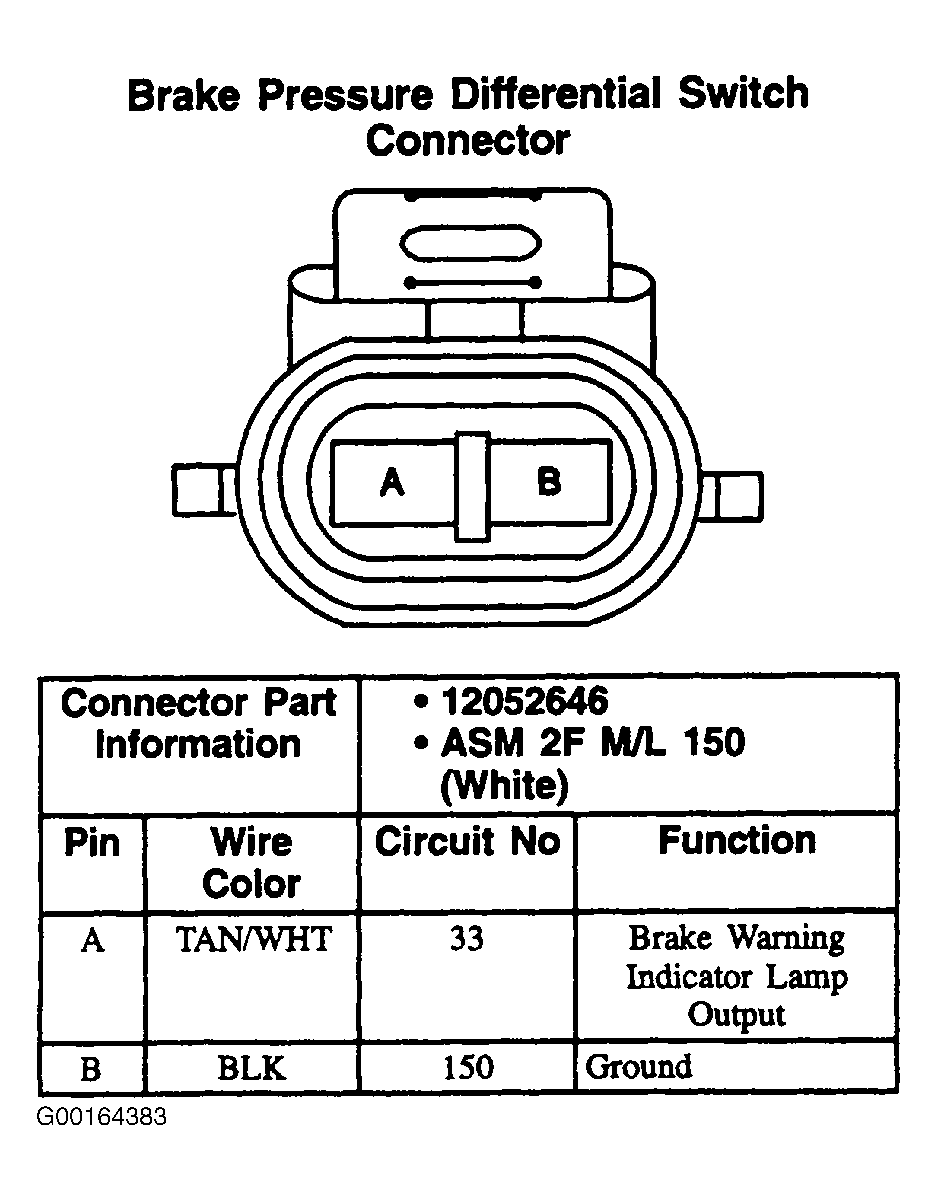

Fig 1: Brake Pressure Differential Switch - 2-Pin Connector, White
Courtesy of GENERAL MOTORS CORP.
