Connector Terminal Identification (G Series)
›
Cigarette Lighter
Cigarette Lighter

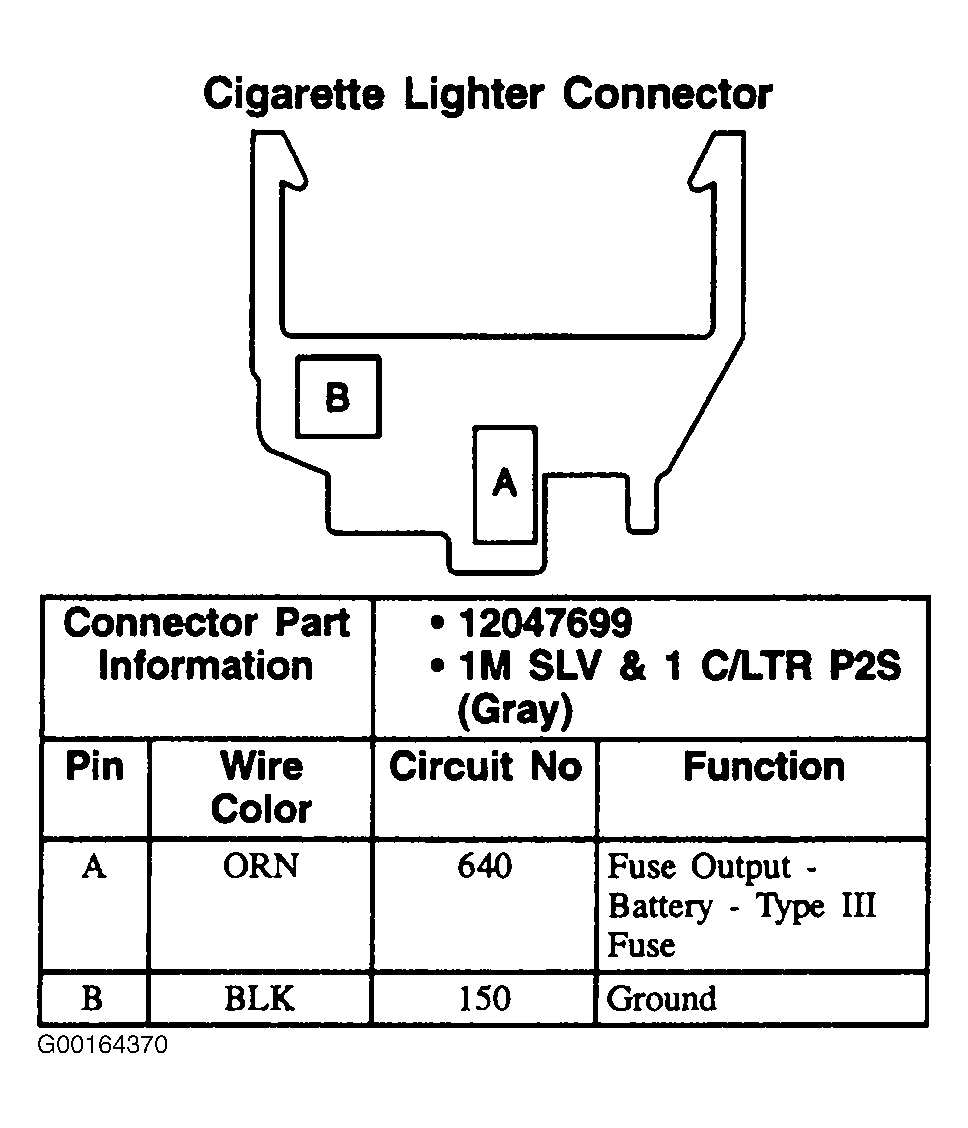

Fig 1: Cigarette Lighter - 2-Pin Connector, Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
