Connector Terminal Identification (G Series)
›
Cruise Control Module (Gas)
Cruise Control Module (Gas)

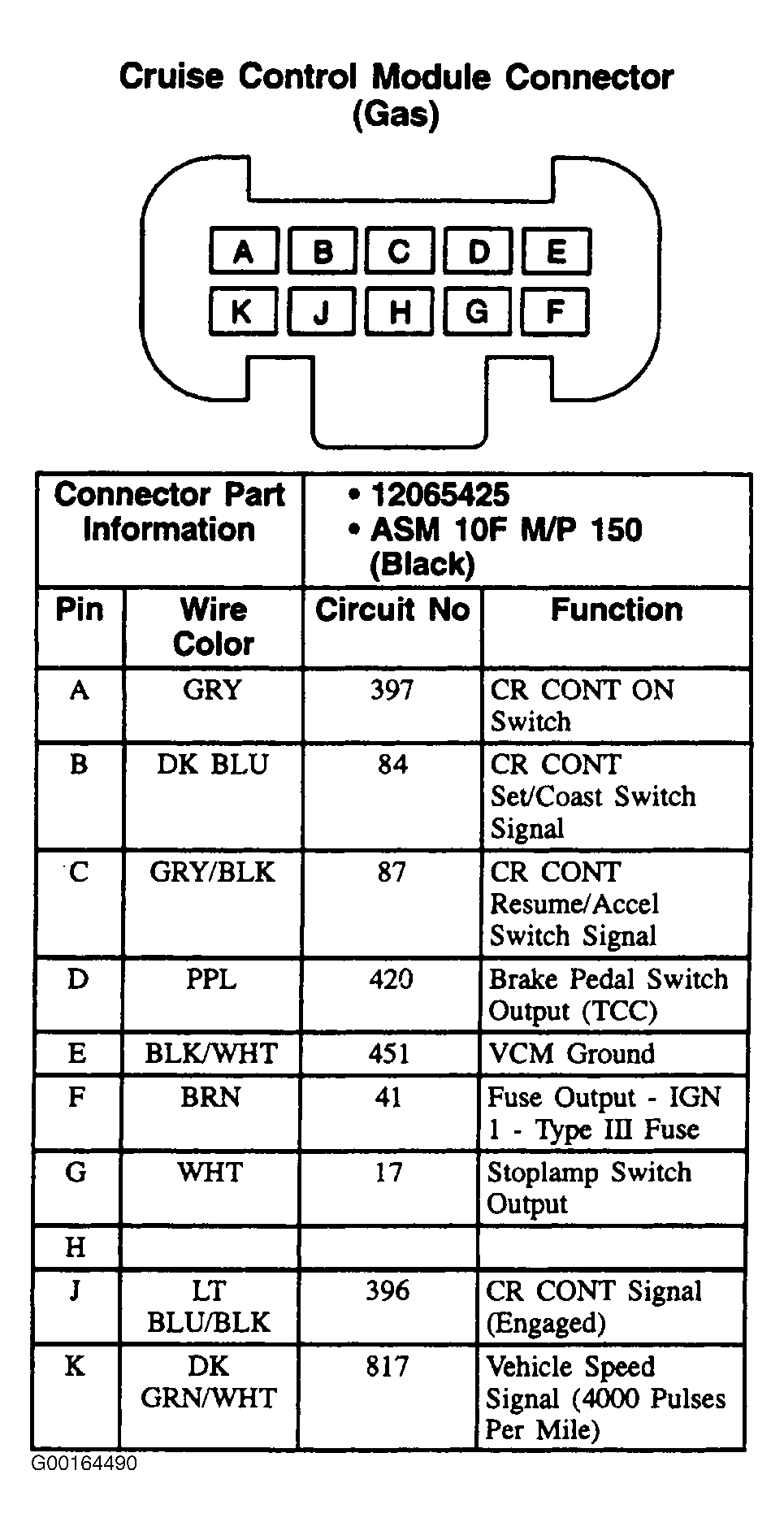

Fig 1: Cruise Control Module (Gas) - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
